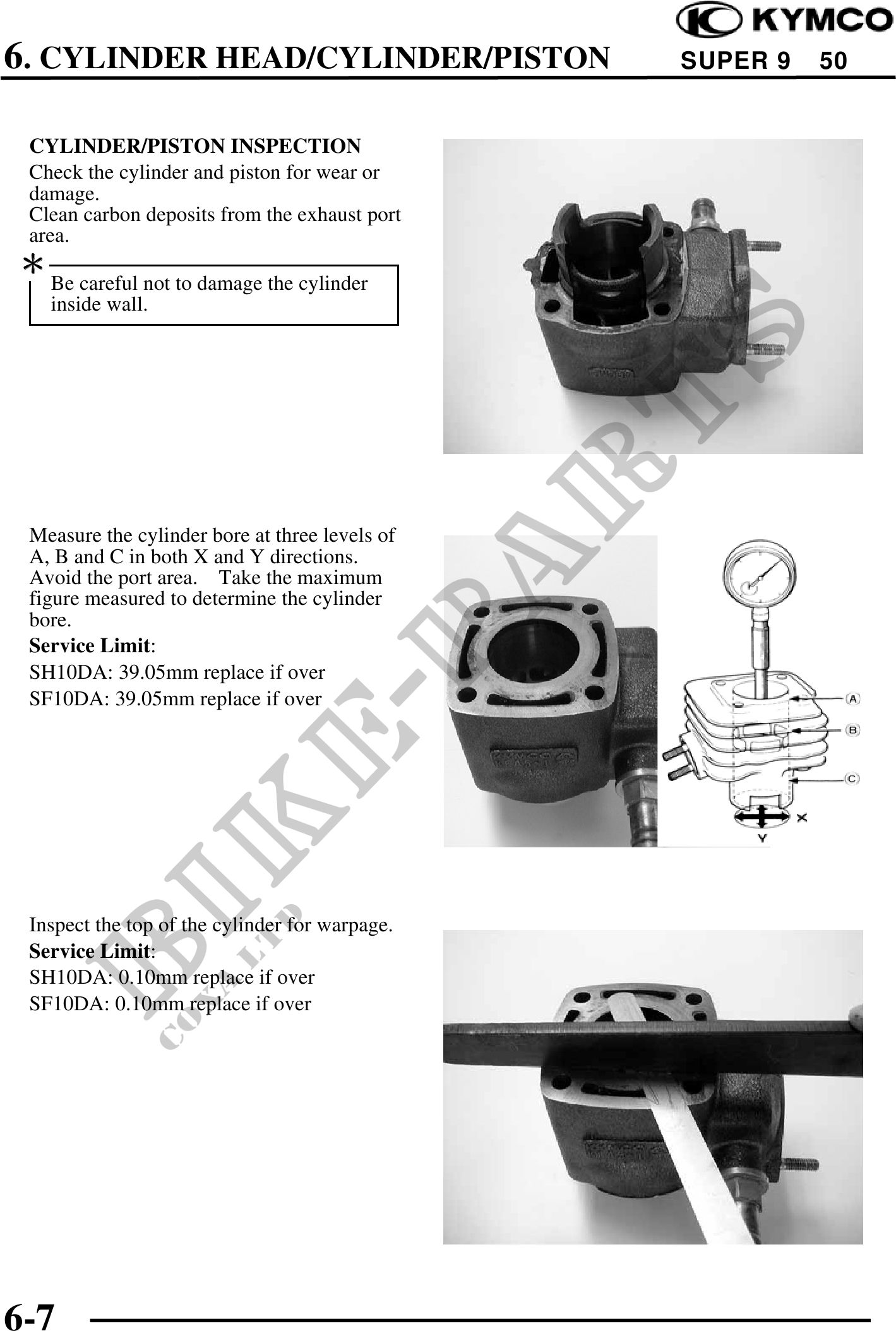

6. CYLINDER HEAD/CYLINDER/PISTON SUPER 9 50 CYLINDER/PISTON INSPECTION Check the cylinder and piston for wear or damage. Clean carbon deposits from the exhaust port area. Be careful not to damage the cylinder inside wall. Measure the cylinder bore at three levels of A, B and C in both X and Y directions. Avoid the port area. Take the maximum figure measured to determine the cylinder bore. Service Limit: SH10DA: 39.05mm replace if over SF10DA: 39.05mm replace if over Inspect the top of the cylinder for warpage. Service Limit: SH10DA: 0.10mm replace if over SF10DA: 0.10mm replace if over 6-7
