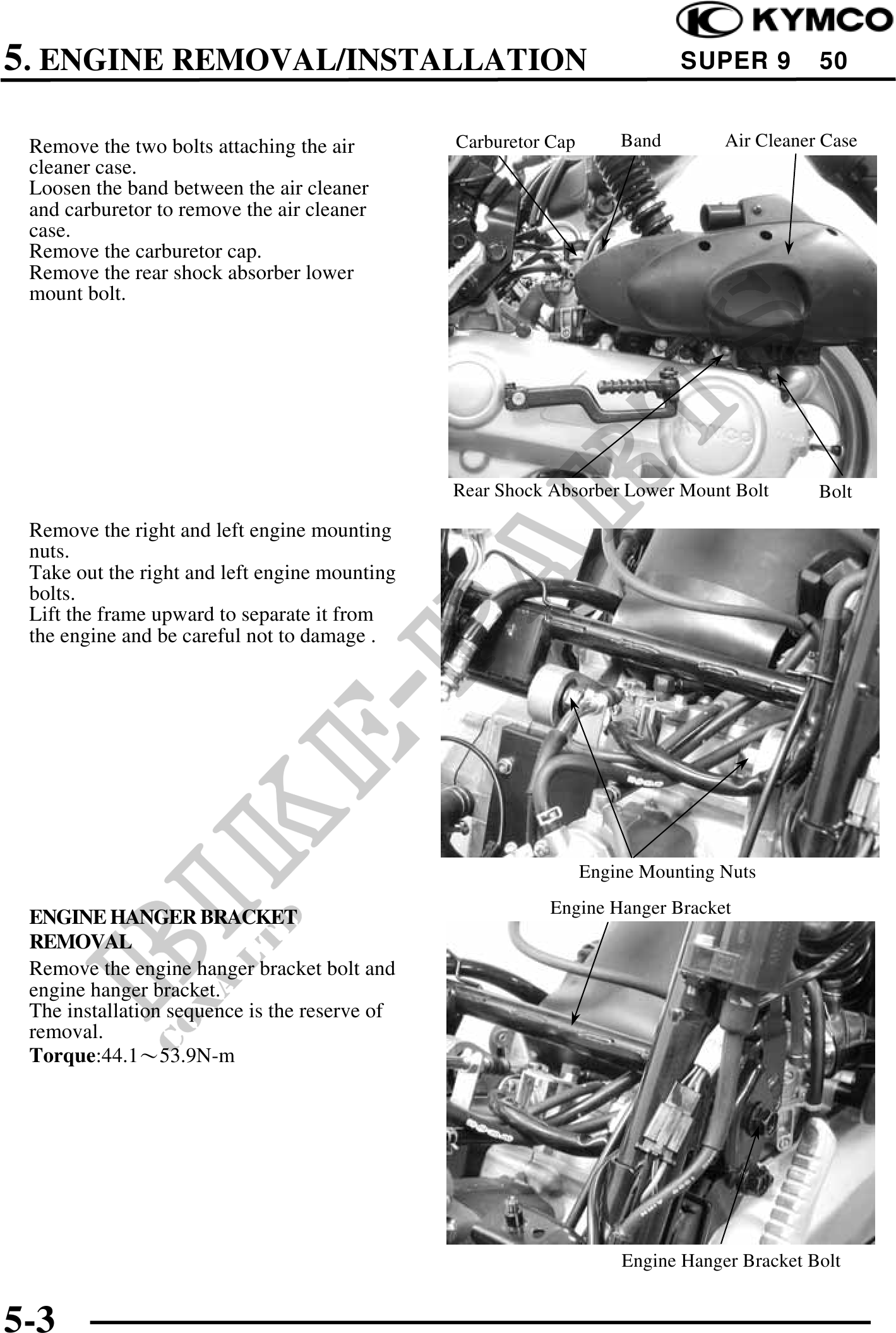

5. ENGINE REMOVAL/INSTALLATION SUPER 9 50 Remove the two bolts attaching the air Carburetor Cap Band Air Cleaner Case cleaner case. Loosen the band between the air cleaner and carburetor to remove the air cleaner case. Remove the carburetor cap. Remove the rear shock absorber lower mount bolt. Rear Shock Absorber Lower Mount Bolt Bolt Remove the right and left engine mounting nuts. Take out the right and left engine mounting bolts. Lift the frame upward to separate it from the engine and be careful not to damage . Engine Mounting Nuts Engine Hanger Bracket ENGINE HANGER BRACKET REMOVAL Remove the engine hanger bracket bolt and engine hanger bracket. The installation sequence is the reserve of removal. Torque:44.153.9N-m Engine Hanger Bracket Bolt 5-3
