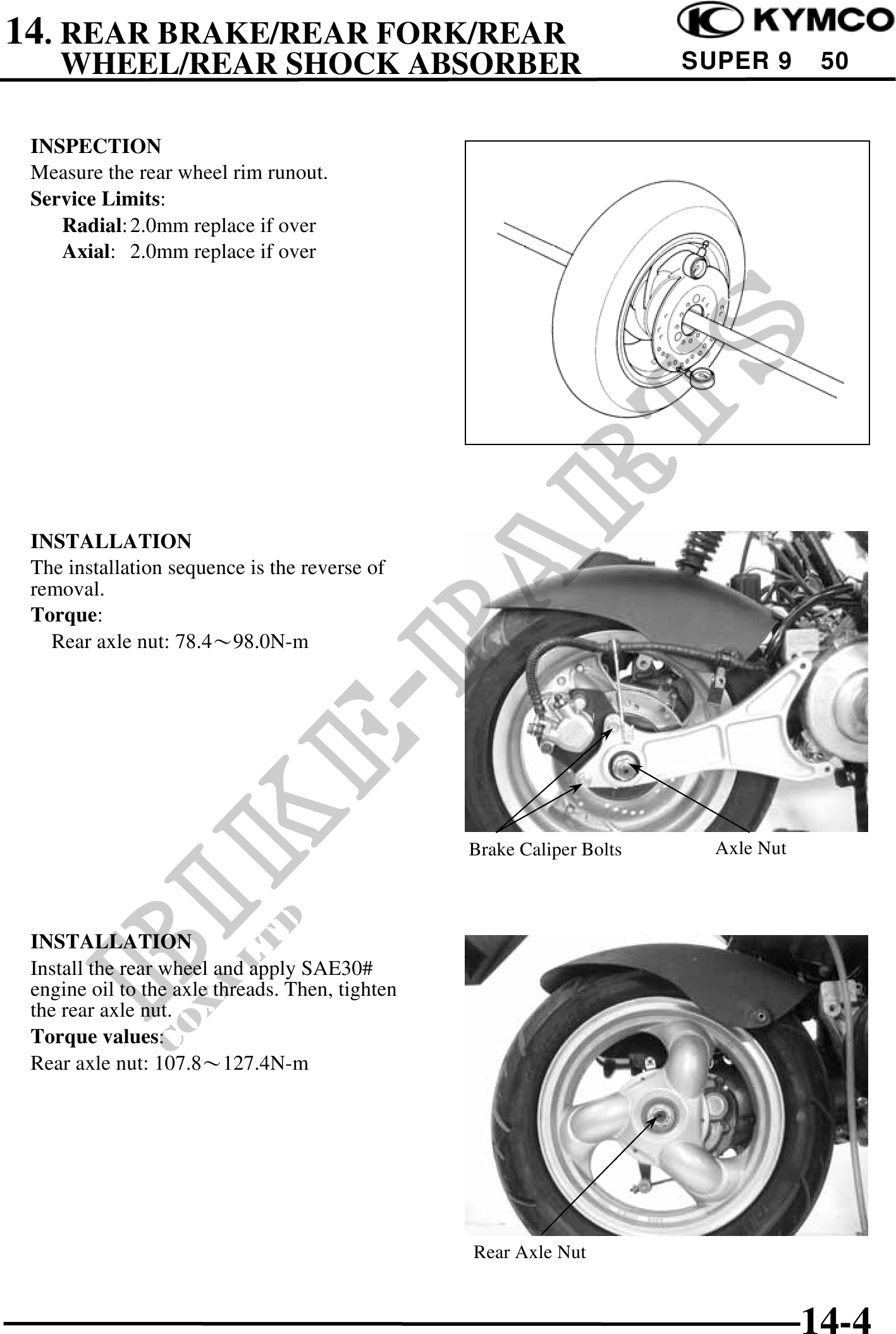

14. REAR BRAKE/REAR FORK/REAR WHEEL/REAR SHOCK ABSORBER SUPER 9 50 INSPECTION Measure the rear wheel rim runout. Service Limits: Radial: 2.0mm replace if over Axial: 2.0mm replace if over INSTALLATION The installation sequence is the reverse of removal. Torque: Rear axle nut: 78.498.0N-m Brake Caliper Bolts Axle Nut INSTALLATION Install the rear wheel and apply SAE30# engine oil to the axle threads. Then, tighten the rear axle nut. Torque values: Rear axle nut: 107.8127.4N-m Rear Axle Nut 14-4
