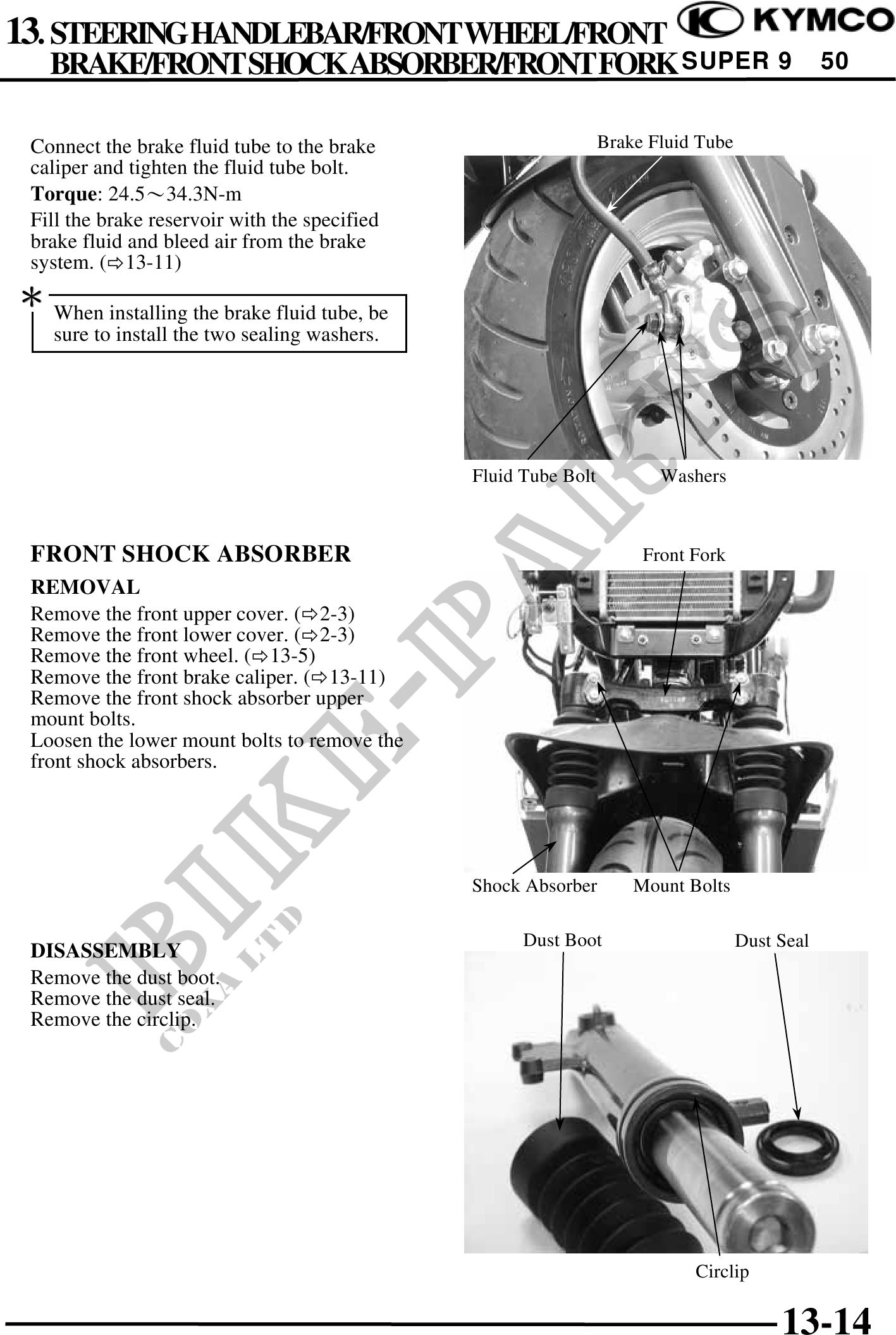

13. STEERINGHANDLEBAR/FRONTWHEEL/FRONT BRAKE/FRONTSHOCKABSORBER/FRONTFORK SUPER 9 50 Connect the brake fluid tube to the brake Brake Fluid Tube caliper and tighten the fluid tube bolt. Torque: 24.534.3N-m Fill the brake reservoir with the specified brake fluid and bleed air from the brake system. ( 13-11) When installing the brake fluid tube, be sure to install the two sealing washers. Fluid Tube Bolt Washers FRONT SHOCK ABSORBER Front Fork REMOVAL Remove the front upper cover. ( 2-3) Remove the front lower cover. ( 2-3) Remove the front wheel. ( 13-5) Remove the front brake caliper. ( 13-11) Remove the front shock absorber upper mount bolts. Loosen the lower mount bolts to remove the front shock absorbers. Shock Absorber Mount Bolts Dust Boot Dust Seal DISASSEMBLY Remove the dust boot. Remove the dust seal. Remove the circlip. Circlip 13-14
