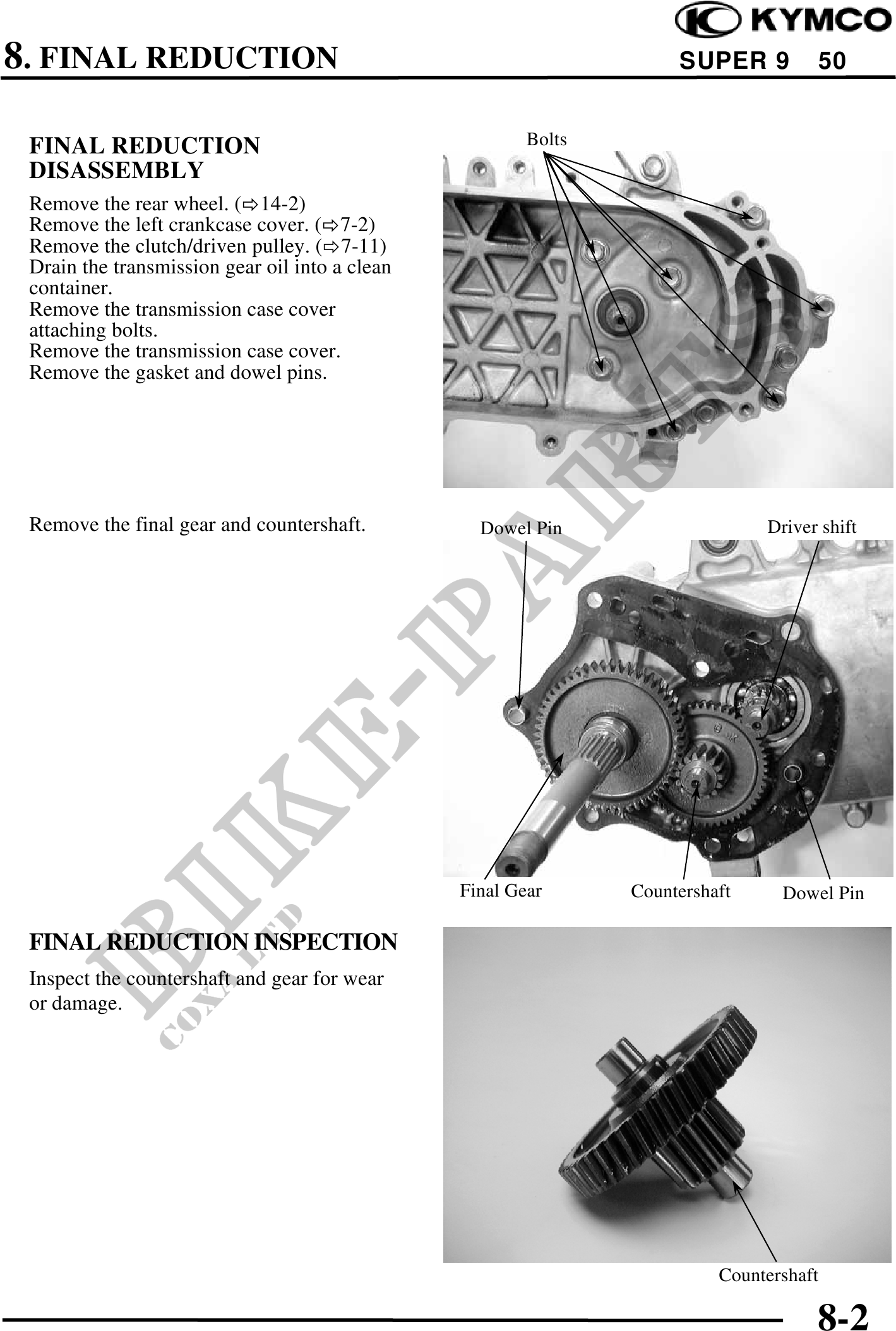

8. FINAL REDUCTION SUPER 9 50 FINAL REDUCTION Bolts DISASSEMBLY Remove the rear wheel. ( 14-2) Remove the left crankcase cover. ( 7-2) Remove the clutch/driven pulley. ( 7-11) Drain the transmission gear oil into a clean container. Remove the transmission case cover attaching bolts. Remove the transmission case cover. Remove the gasket and dowel pins. Remove the final gear and countershaft. Dowel Pin Driver shift Final Gear Countershaft Dowel Pin FINAL REDUCTION INSPECTION Inspect the countershaft and gear for wear or damage. Countershaft 8-2
