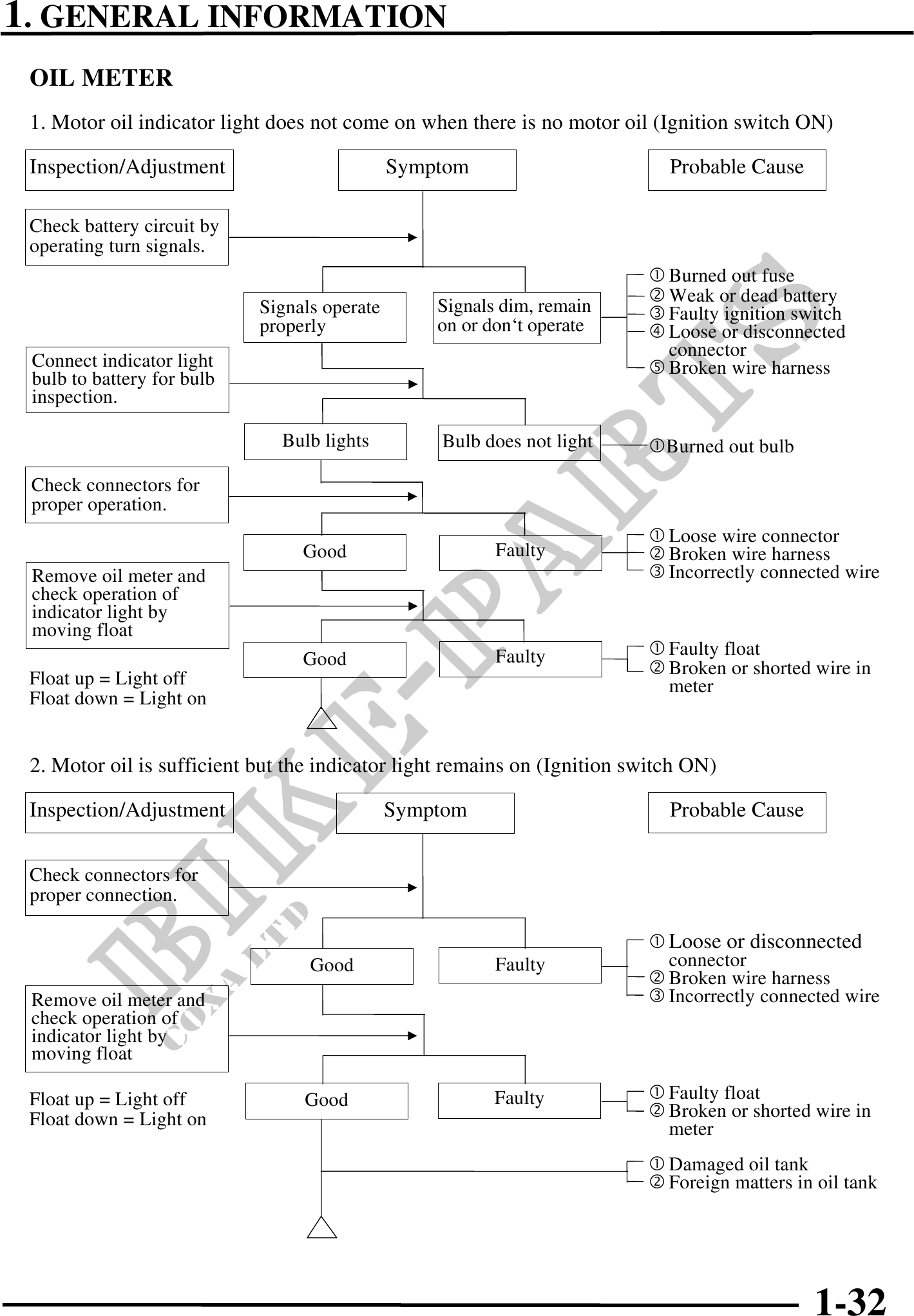

1. GENERAL INFORMATION OIL METER 1. Motor oil indicator light does not come on when there is no motor oil (Ignition switch ON) Inspection/Adjustment Symptom Probable Cause Check battery circuit by operating turn signals. Burned out fuse Weak or dead battery Signals operate Signals dim, remain Faulty ignition switch properly on or don`t operate Loose or disconnected connector Connect indicator light Broken wire harness bulb to battery for bulb inspection. Bulb lights Bulb does not light Burned out bulb Check connectors for proper operation. Loose wire connector Good Faulty Broken wire harness Remove oil meter and Incorrectly connected wire check operation of indicator light by moving float Faulty Faulty float Good Broken or shorted wire in Float up = Light off meter Float down = Light on 2. Motor oil is sufficient but the indicator light remains on (Ignition switch ON) Inspection/Adjustment Symptom Probable Cause Check connectors for proper connection. Loose or disconnected Good Faulty connector Broken wire harness Remove oil meter and Incorrectly connected wire check operation of indicator light by moving float Float up = Light off Good Faulty Faulty float Float down = Light on Broken or shorted wire in meter Damaged oil tank Foreign matters in oil tank 1-32
