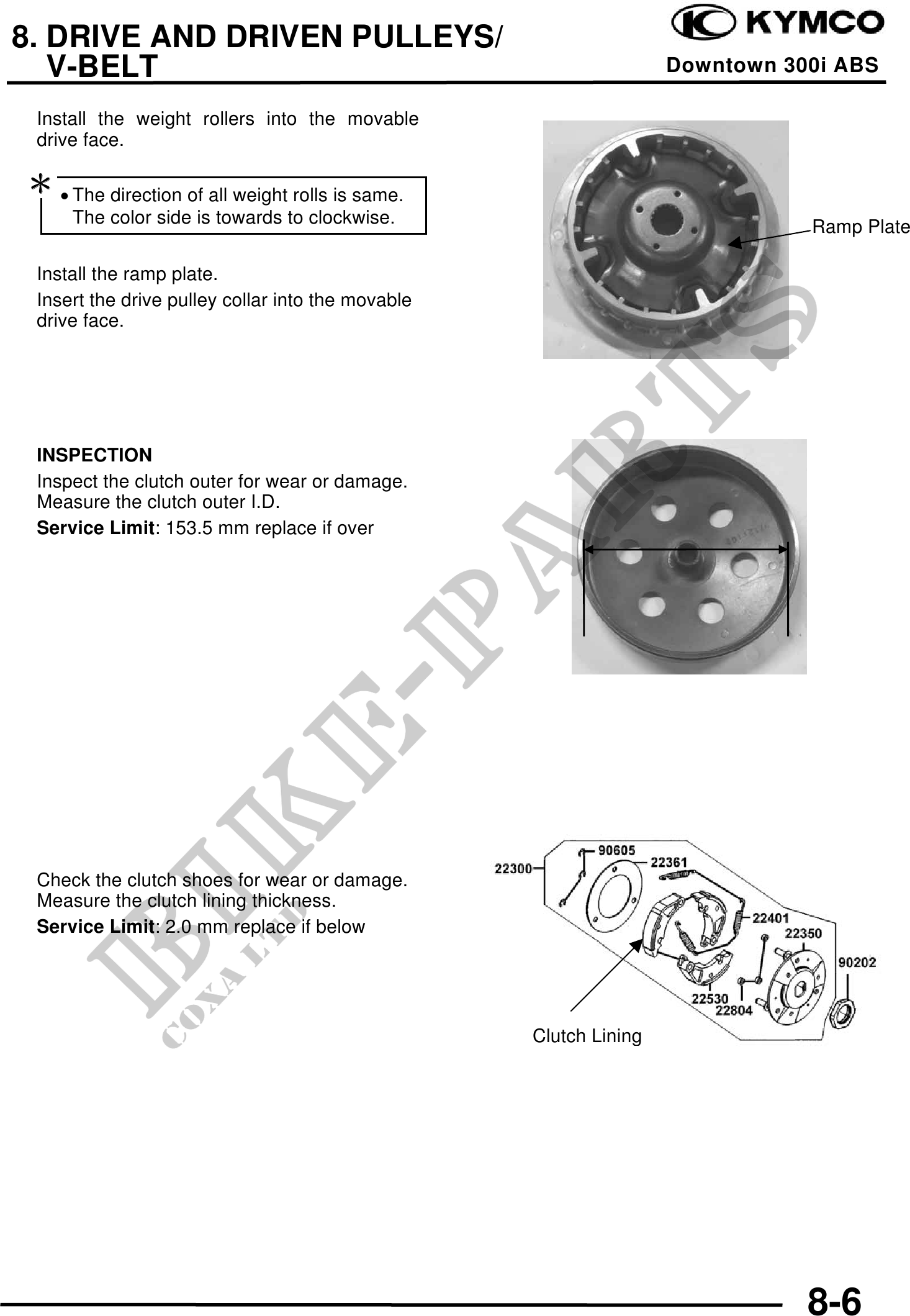

8. DRIVE AND DRIVEN PULLEYS/ V-BELT Downtown 300i ABS Install the weight rollers into the movable drive face. · The direction of all weight rolls is same. The color side is towards to clockwise. Ramp Plate Install the ramp plate. Insert the drive pulley collar into the movable drive face. INSPECTION Inspect the clutch outer for wear or damage. Measure the clutch outer I.D. Service Limit: 153.5 mm replace if over Check the clutch shoes for wear or damage. Measure the clutch lining thickness. Service Limit: 2.0 mm replace if below Clutch Lining 8-6
