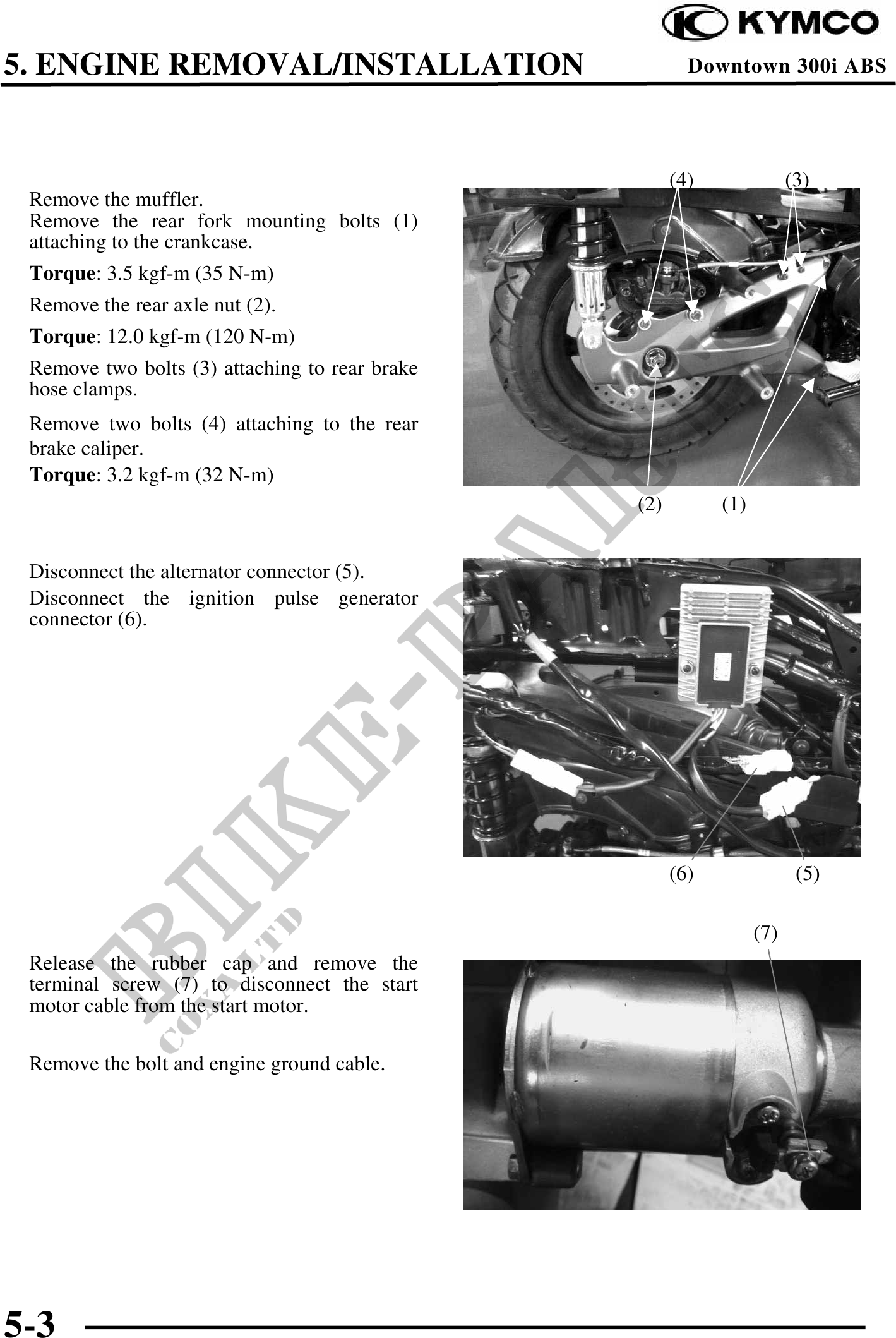

5. ENGINE REMOVAL/INSTALLATION Downtown 300i ABS (4) (3) Remove the muffler. Remove the rear fork mounting bolts (1) attaching to the crankcase. Torque: 3.5 kgf-m (35 N-m) Remove the rear axle nut (2). Torque: 12.0 kgf-m (120 N-m) Remove two bolts (3) attaching to rear brake hose clamps. Remove two bolts (4) attaching to the rear brake caliper. Torque: 3.2 kgf-m (32 N-m) (2) (1) Disconnect the alternator connector (5). Disconnect the ignition pulse generator connector (6). (6) (5) (7) Release the rubber cap and remove the terminal screw (7) to disconnect the start motor cable from the start motor. Remove the bolt and engine ground cable. 5-3
