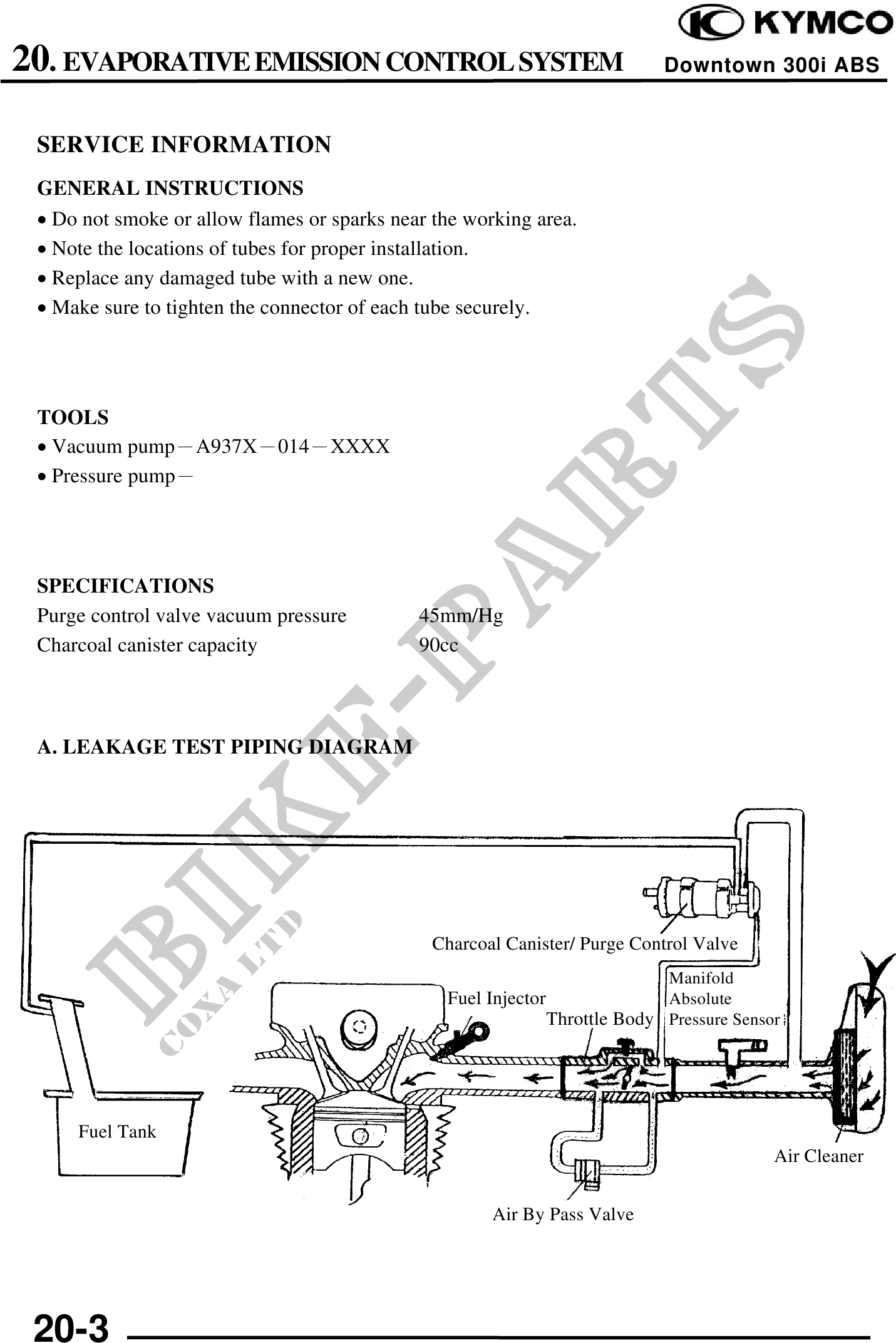

20. EVAPORATIVE EMISSION CONTROL SYSTEM Downtown 300i ABS SERVICE INFORMATION GENERAL INSTRUCTIONS · Do not smoke or allow flames or sparks near the working area. · Note the locations of tubes for proper installation. · Replace any damaged tube with a new one. · Make sure to tighten the connector of each tube securely. TOOLS · Vacuum pumpA937014 · Pressure pump SPECIFICATIONS Purge control valve vacuum pressure 45mm/Hg Charcoal canister capacity 90cc A. LEAKAGE TEST PIPING DIAGRAM Charcoal Canister/ Purge Control Valve Manifold Fuel Injector Absolute Throttle Body Pressure Sensor Fuel Tank Air Cleaner Air By Pass Valve 20-3
