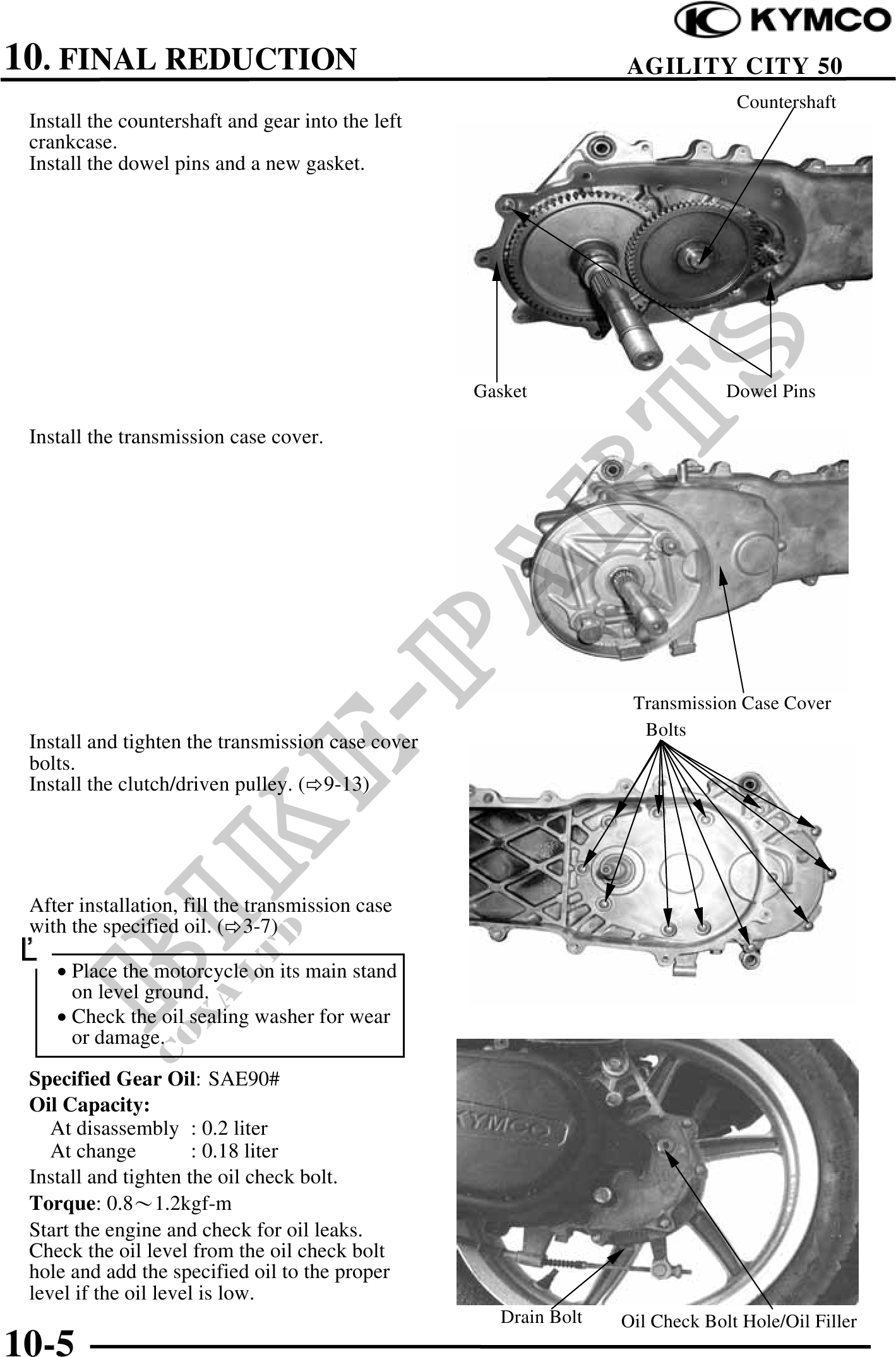

          10. FINAL REDUCTION                                                AGILITY CITY 50
                                                                                 Countershaft
 Install the countershaft and gear into the left
 crankcase.
 Install the dowel pins and a new gasket.




                                                   Gasket                       Dowel Pins

 Install the transmission case cover.




                                                                    Transmission Case Cover
                                                                     Bolts
 Install and tighten the transmission case cover
 bolts.
 Install the clutch/driven pulley. ( 9-13)




 After installation, fill the transmission case
 with the specified oil. ( 3-7)

    · Place the motorcycle on its main stand
      on level ground.
    · Check the oil sealing washer for wear
      or damage.
 Specified Gear Oil: SAE90#
 Oil Capacity:
    At disassembly : 0.2 liter
    At change          : 0.18 liter
 Install and tighten the oil check bolt.
 Torque: 0.81.2kgf-m
 Start the engine and check for oil leaks.
 Check the oil level from the oil check bolt
 hole and add the specified oil to the proper
 level if the oil level is low.
                                                      Drain Bolt   Oil Check Bolt Hole/Oil Filler
10-5
