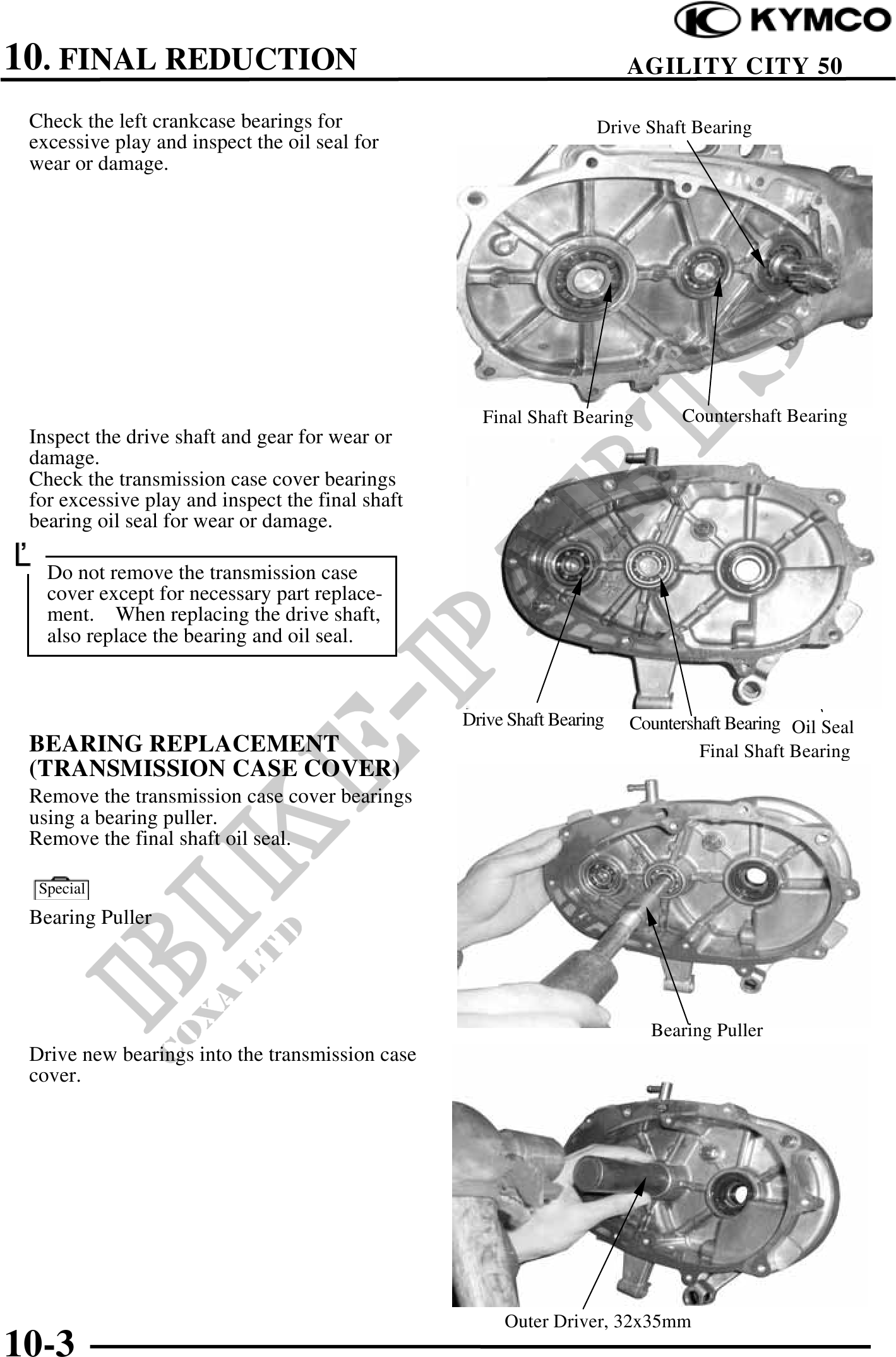

          10. FINAL REDUCTION                                                     AGILITY CITY 50

 Check the left crankcase bearings for                             Drive Shaft Bearing
 excessive play and inspect the oil seal for
 wear or damage.




                                                    Final Shaft Bearing       Countershaft Bearing
 Inspect the drive shaft and gear for wear or
 damage.
 Check the transmission case cover bearings
 for excessive play and inspect the final shaft
 bearing oil seal for wear or damage.
 Do not remove the transmission case
   cover except for necessary part replace-
   ment. When replacing the drive shaft,
   also replace the bearing and oil seal.


                                                  Drive Shaft Bearing   Countershaft Bearing Oil Seal
 BEARING REPLACEMENT                                                             Final Shaft Bearing
 (TRANSMISSION CASE COVER)
 Remove the transmission case cover bearings
 using a bearing puller.
 Remove the final shaft oil seal.

  Special
 Bearing Puller




                                                                          Bearing Puller
 Drive new bearings into the transmission case
 cover.




                                                       Outer Driver, 32x35mm
10-3
