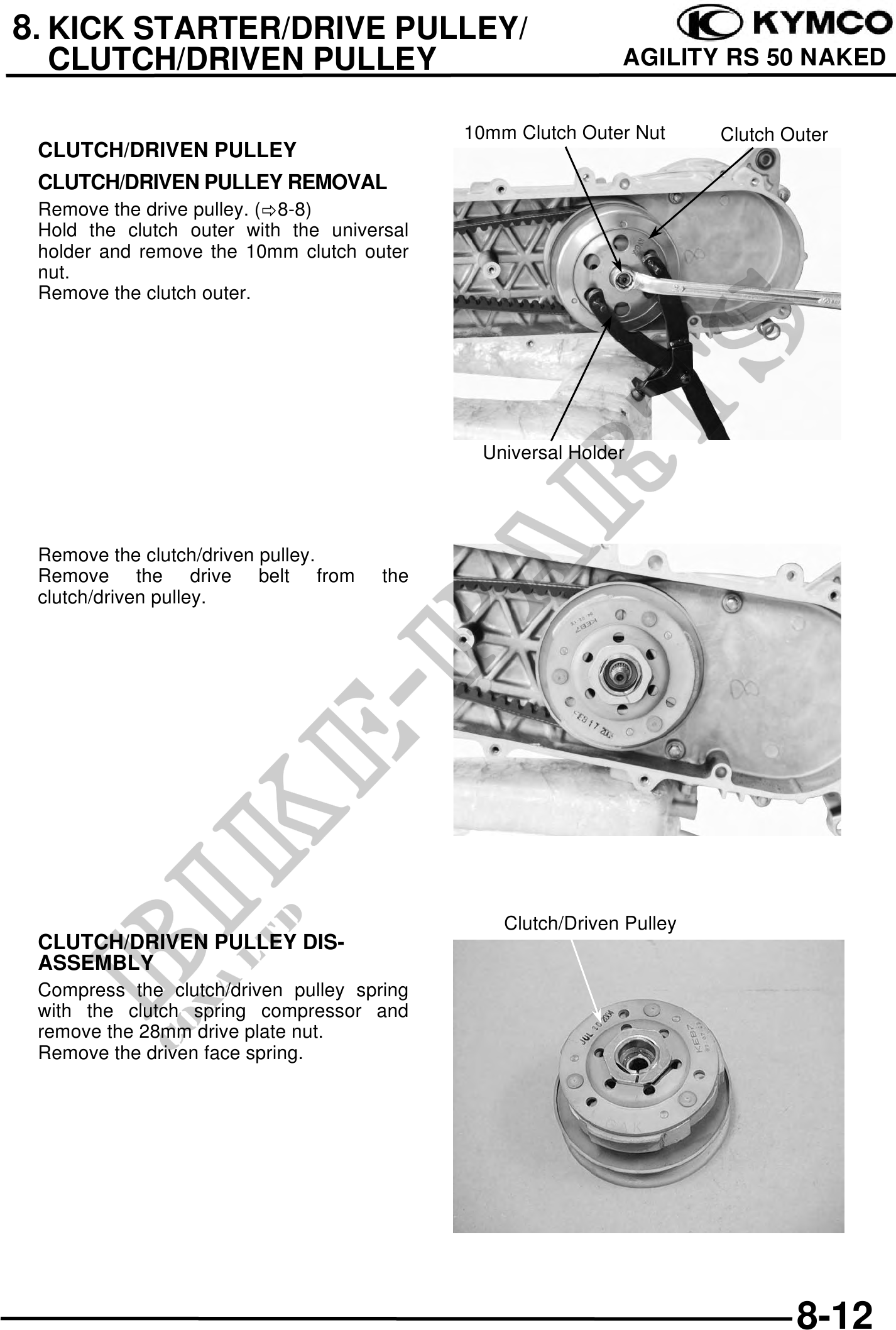

8. KICK STARTER/DRIVE PULLEY/ CLUTCH/DRIVEN PULLEY AGILITY RS 50 NAKED 10mm Clutch Outer Nut Clutch Outer CLUTCH/DRIVEN PULLEY CLUTCH/DRIVEN PULLEY REMOVAL Remove the drive pulley. ( 8-8) Hold the clutch outer with the universal holder and remove the 10mm clutch outer nut. Remove the clutch outer. Universal Holder Remove the clutch/driven pulley. Remove the drive belt from the clutch/driven pulley. Clutch/Driven Pulley CLUTCH/DRIVEN PULLEY DIS- ASSEMBLY Compress the clutch/driven pulley spring with the clutch spring compressor and remove the 28mm drive plate nut. Remove the driven face spring. 8-12
