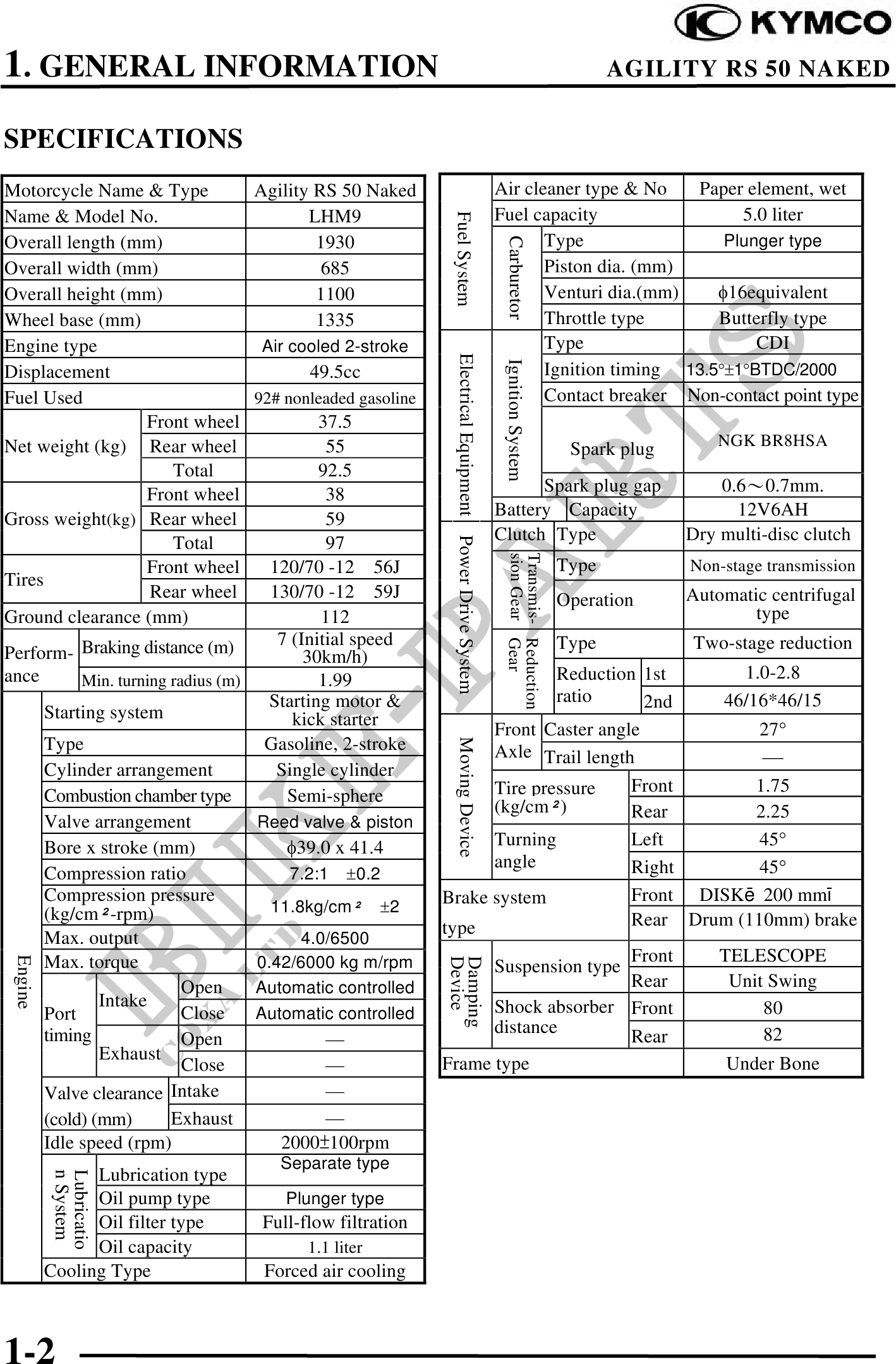

1. GENERAL INFORMATION AGILITY RS 50 NAKED SPECIFICATIONS Motorcycle Name & Type Agility RS 50 Naked Air cleaner type & No Paper element, wet Name & Model No. LHM9 Fuel capacity 5.0 liter Fuel System Overall length (mm) 1930 Type Plunger type Carburetor Overall width (mm) 685 Piston dia. (mm) Overall height (mm) 1100 Venturi dia.(mm) 16equivalent Wheel base (mm) 1335 Throttle type Butterfly type Engine type Air cooled 2-stroke Type CDI Electrical Equipment Power Drive System Ignition System Displacement 49.5cc Ignition timing 13.5°1°BTDC/2000 Fuel Used 92# nonleaded gasoline Contact breaker Non-contact point type Front wheel 37.5 Net weight (kg) Rear wheel 55 Spark plug NGK BR8HSA Total 92.5 Front wheel 38 Spark plug gap 0.60.7mm. Gross weight(kg) Rear wheel 59 Battery Capacity 12V6AH Total 97 Clutch Type Dry multi-disc clutch sion Gear Gear Front wheel 120/70 -12 56J Transmis- Reduction Type Non-stage transmission Tires Rear wheel 130/70 -12 59J Operation Automatic centrifugal Ground clearance (mm) 112 type 7 (Initial speed Type Two-stage reduction Perform- Braking distance (m) 30km/h) ance Min. turning radius (m) 1.99 Reduction 1st 1.0-2.8 Starting motor & ratio 2nd 46/16*46/15 Starting system kick starter Front Caster angle 27° Type Gasoline, 2-stroke Moving Device Axle Trail length Cylinder arrangement Single cylinder Tire pressure Front 1.75 Combustion chamber type Semi-sphere (kg/cm) Rear 2.25 Valve arrangement Reed valve & piston Bore x stroke (mm) 39.0 x 41.4 Turning Left 45° angle Right 45° Compression ratio 7.2:1 0.2 Compression pressure Brake system Front DISK200 mm (kg/cm-rpm) 11.8kg/cm 2 type Rear Drum (110mm) brake Max. output 4.0/6500 Front TELESCOPE Engine Max. torque 0.42/6000 kg m/rpm Device Damping Suspension type Open Automatic controlled Rear Unit Swing Intake Shock absorber Front 80 Port Close Automatic controlled distance timing Open Rear 82 Exhaust Close Frame type Under Bone Valve clearance Intake (cold) (mm) Exhaust Idle speed (rpm) 2000100rpm Separate type Lubrication type n System Lubricatio Oil pump type Plunger type Oil filter type Full-flow filtration Oil capacity 1.1 liter Cooling Type Forced air cooling 1-2
