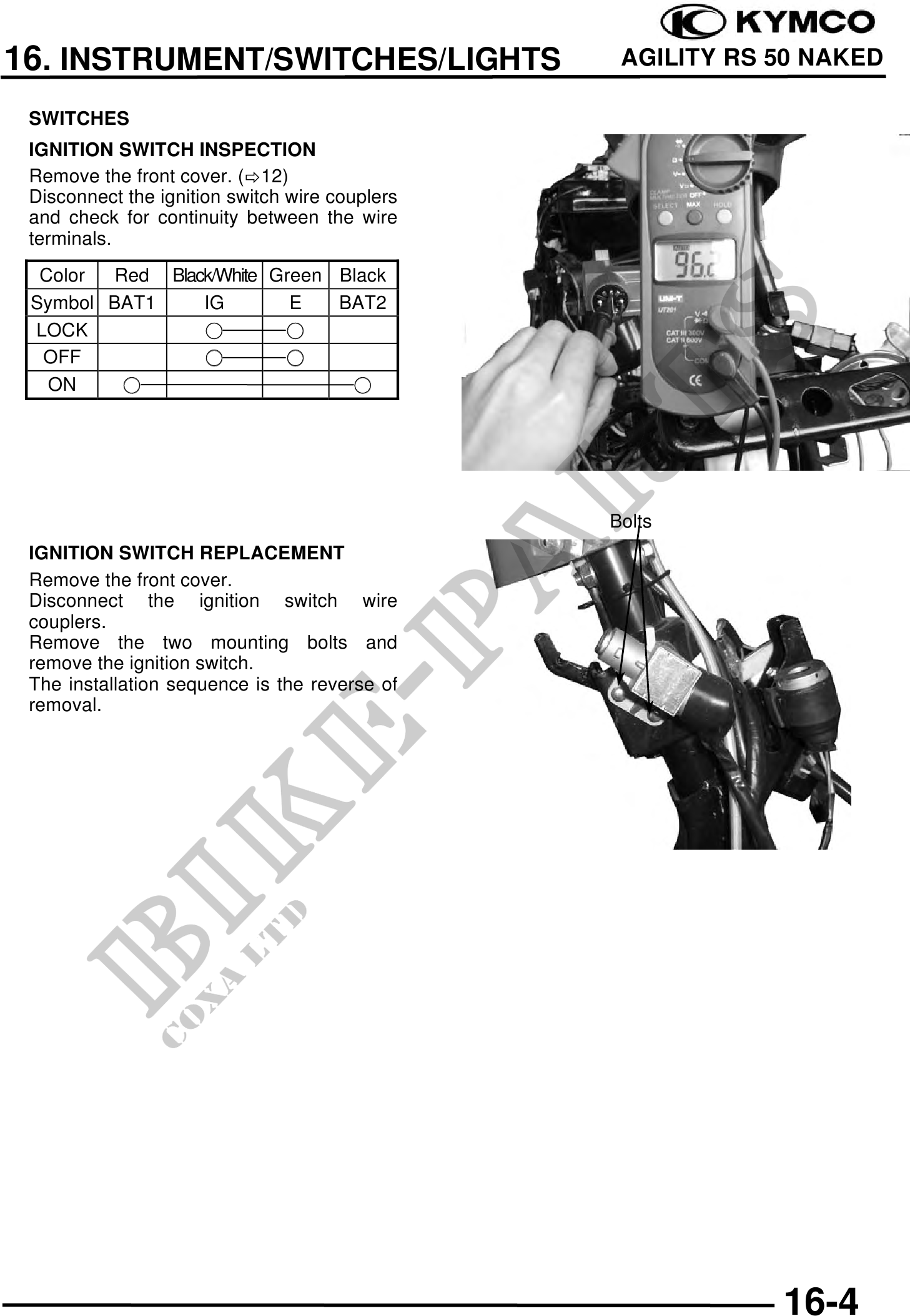

16. INSTRUMENT/SWITCHES/LIGHTS AGILITY RS 50 NAKED
SWITCHES
IGNITION SWITCH INSPECTION
Remove the front cover. ( 12)
Disconnect the ignition switch wire couplers
and check for continuity between the wire
terminals.
Color Red Black/White Green Black
Symbol BAT1 IG E BAT2
LOCK
OFF
ON
Bolts
IGNITION SWITCH REPLACEMENT
Remove the front cover.
Disconnect the ignition switch wire
couplers.
Remove the two mounting bolts and
remove the ignition switch.
The installation sequence is the reverse of
removal.
16-4
