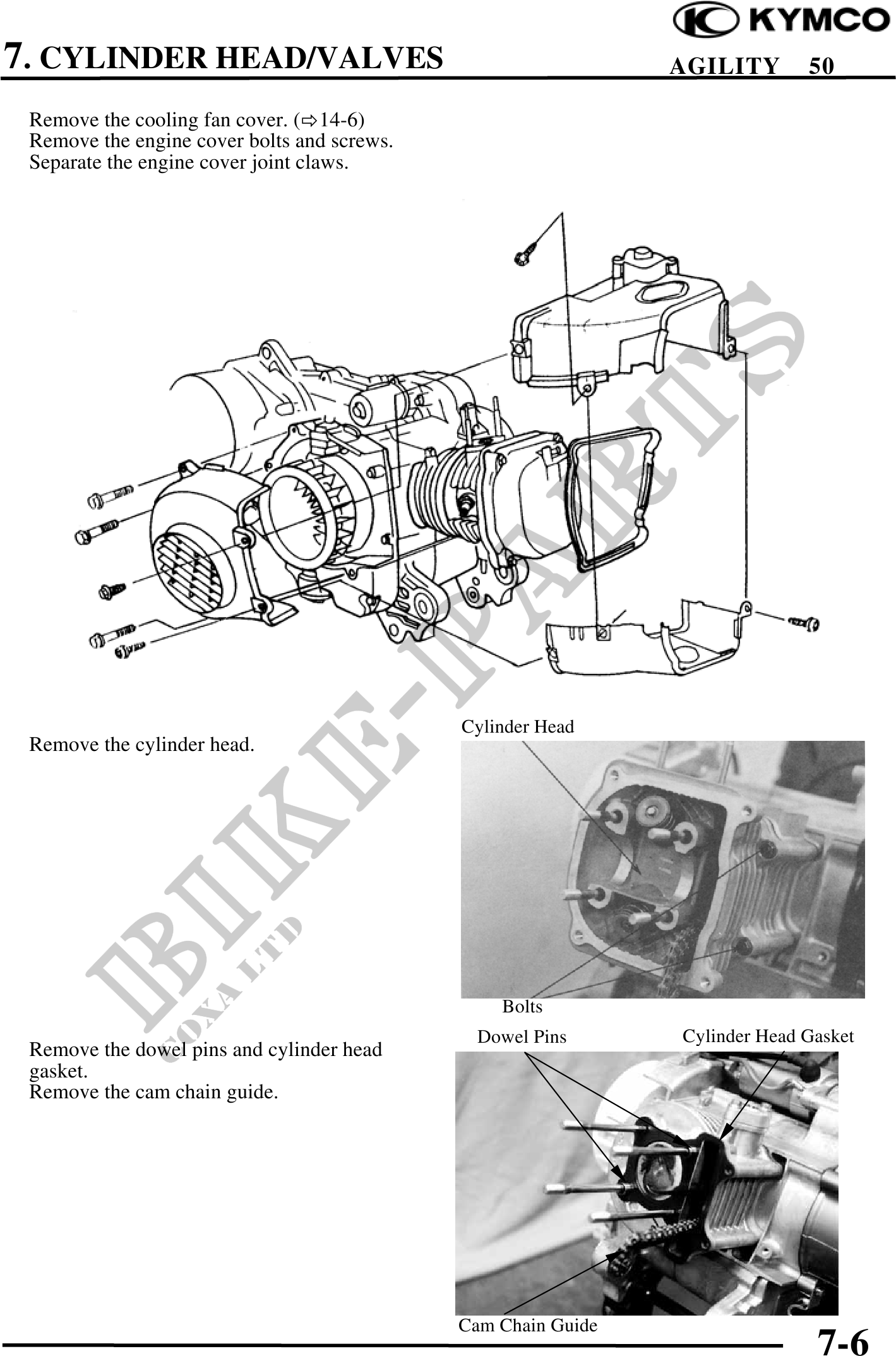

7. CYLINDER HEAD/VALVES AGILITY 50
Remove the cooling fan cover. ( 14-6)
Remove the engine cover bolts and screws.
Separate the engine cover joint claws.
Cylinder Head
Remove the cylinder head.
Bolts
Dowel Pins Cylinder Head Gasket
Remove the dowel pins and cylinder head
gasket.
Remove the cam chain guide.
Cam Chain Guide
7-6
