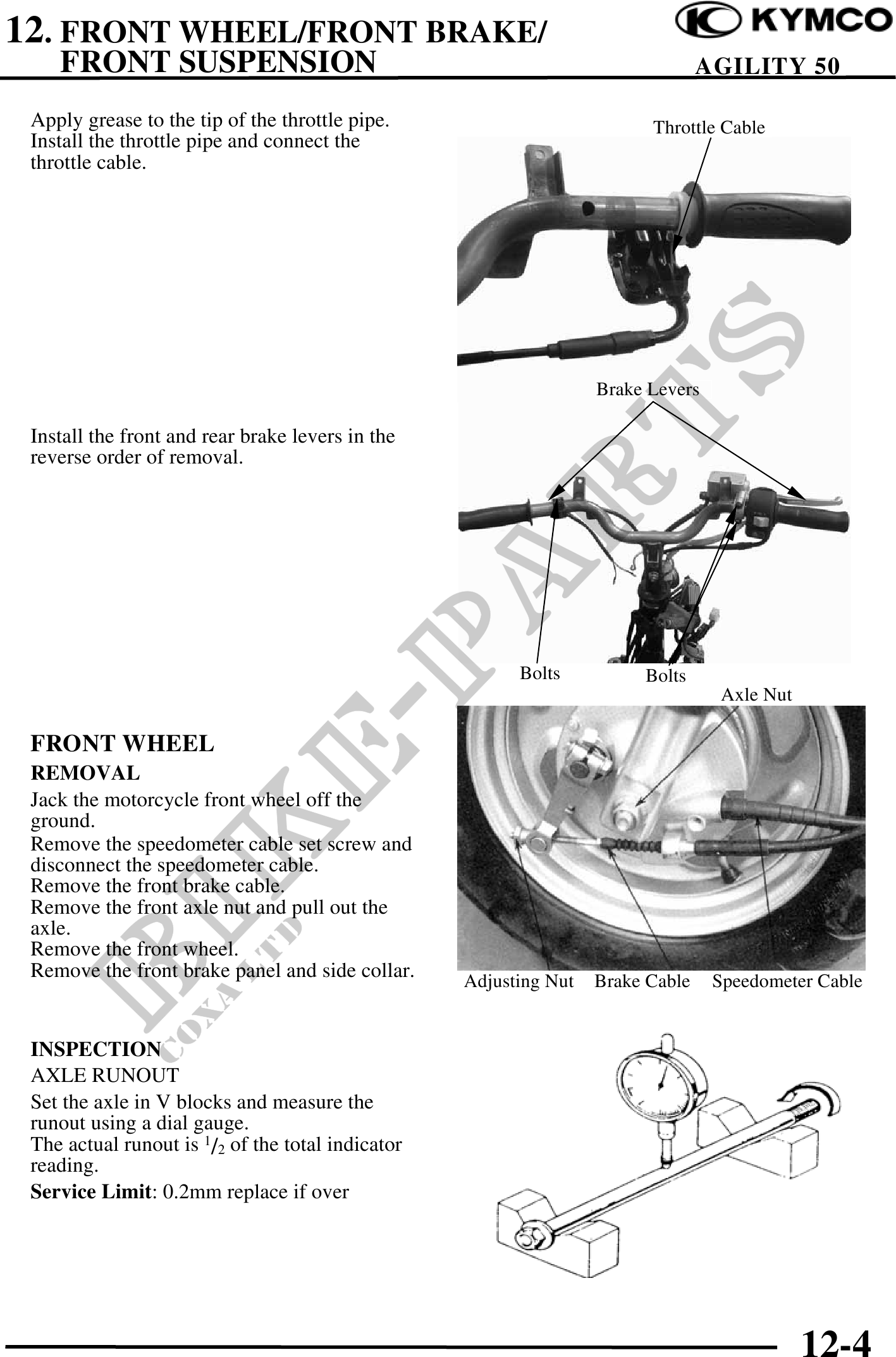

12. FRONT WHEEL/FRONT BRAKE/ FRONT SUSPENSION AGILITY 50 Apply grease to the tip of the throttle pipe. Throttle Cable Install the throttle pipe and connect the throttle cable. Brake Levers Install the front and rear brake levers in the reverse order of removal. Bolts Bolts Axle Nut FRONT WHEEL REMOVAL Jack the motorcycle front wheel off the ground. Remove the speedometer cable set screw and disconnect the speedometer cable. Remove the front brake cable. Remove the front axle nut and pull out the axle. Remove the front wheel. Remove the front brake panel and side collar. Brake Cable Speedometer Cable Adjusting Nut INSPECTION AXLE RUNOUT Set the axle in V blocks and measure the runout using a dial gauge. The actual runout is 1/2 of the total indicator reading. Service Limit: 0.2mm replace if over 12-4
