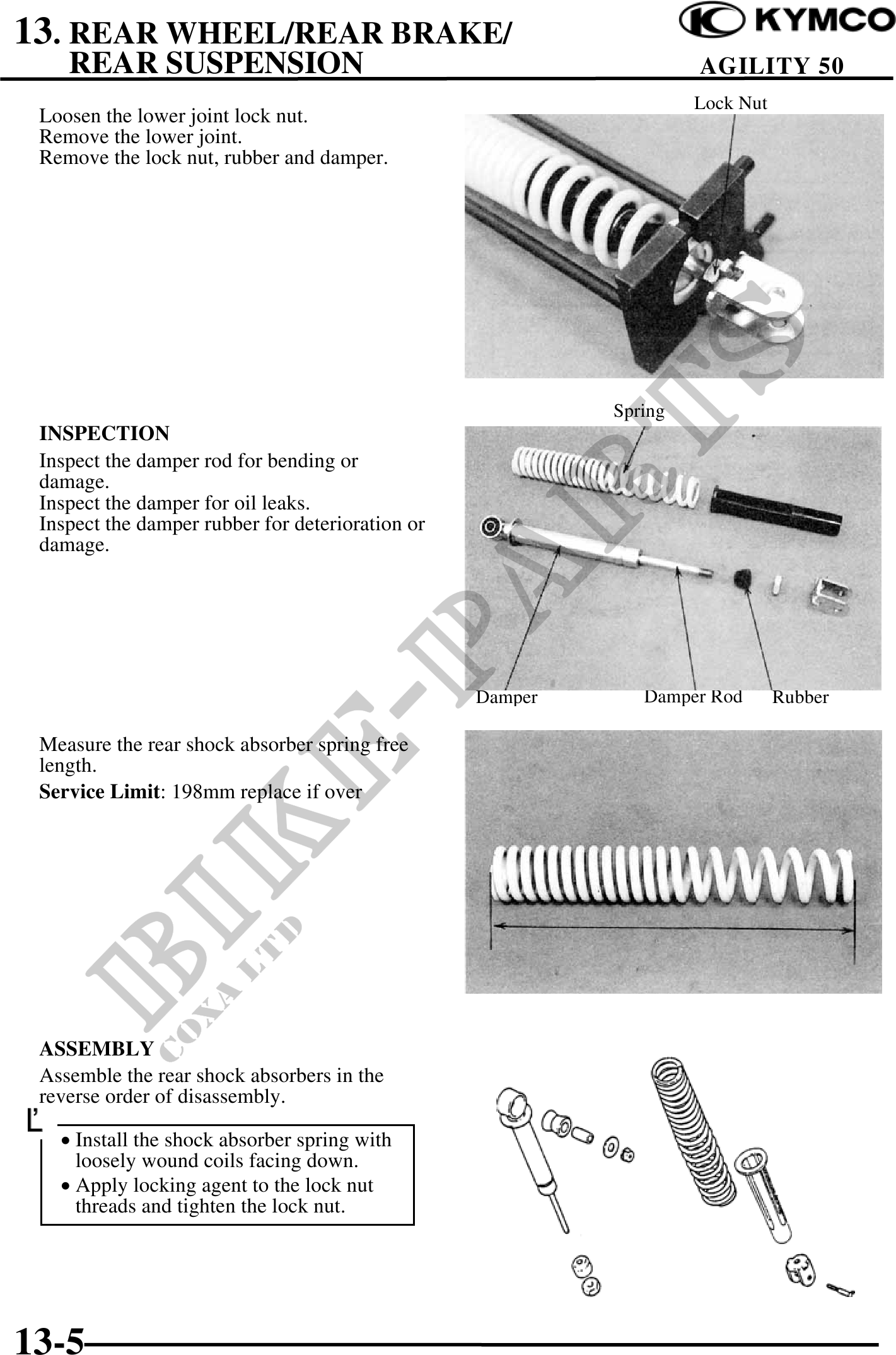

13. REAR WHEEL/REAR BRAKE/ REAR SUSPENSION AGILITY 50 Lock Nut Loosen the lower joint lock nut. Remove the lower joint. Remove the lock nut, rubber and damper. Spring INSPECTION Inspect the damper rod for bending or damage. Inspect the damper for oil leaks. Inspect the damper rubber for deterioration or damage. Damper Damper Rod Rubber Measure the rear shock absorber spring free length. Service Limit: 198mm replace if over ASSEMBLY Assemble the rear shock absorbers in the reverse order of disassembly. · Install the shock absorber spring with loosely wound coils facing down. · Apply locking agent to the lock nut threads and tighten the lock nut. 13-5
