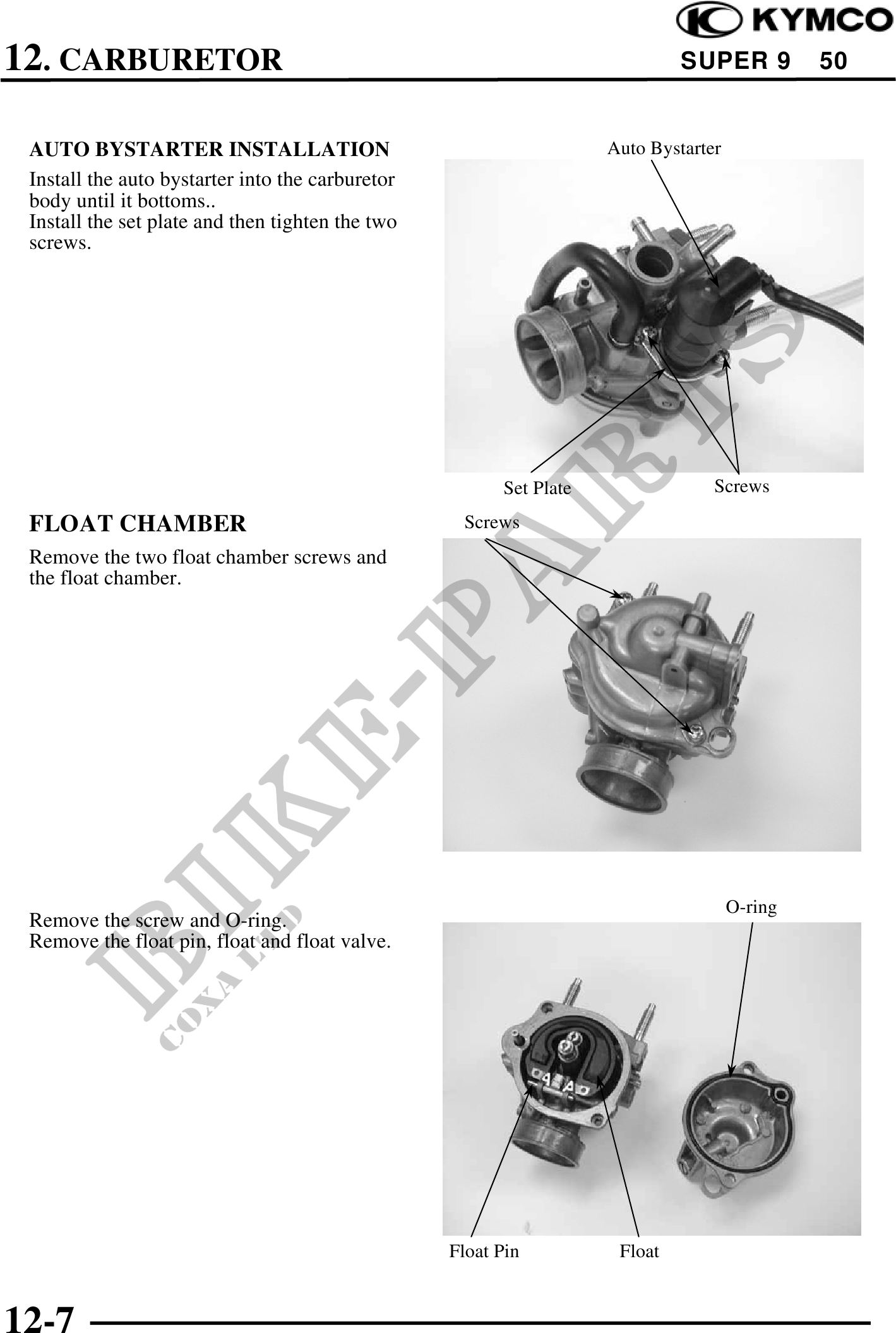

12. CARBURETOR SUPER 9 50
AUTO BYSTARTER INSTALLATION Auto Bystarter
Install the auto bystarter into the carburetor
body until it bottoms..
Install the set plate and then tighten the two
screws.
Set Plate Screws
FLOAT CHAMBER Screws
Remove the two float chamber screws and
the float chamber.
O-ring
Remove the screw and O-ring.
Remove the float pin, float and float valve.
Float Pin Float
12-7
