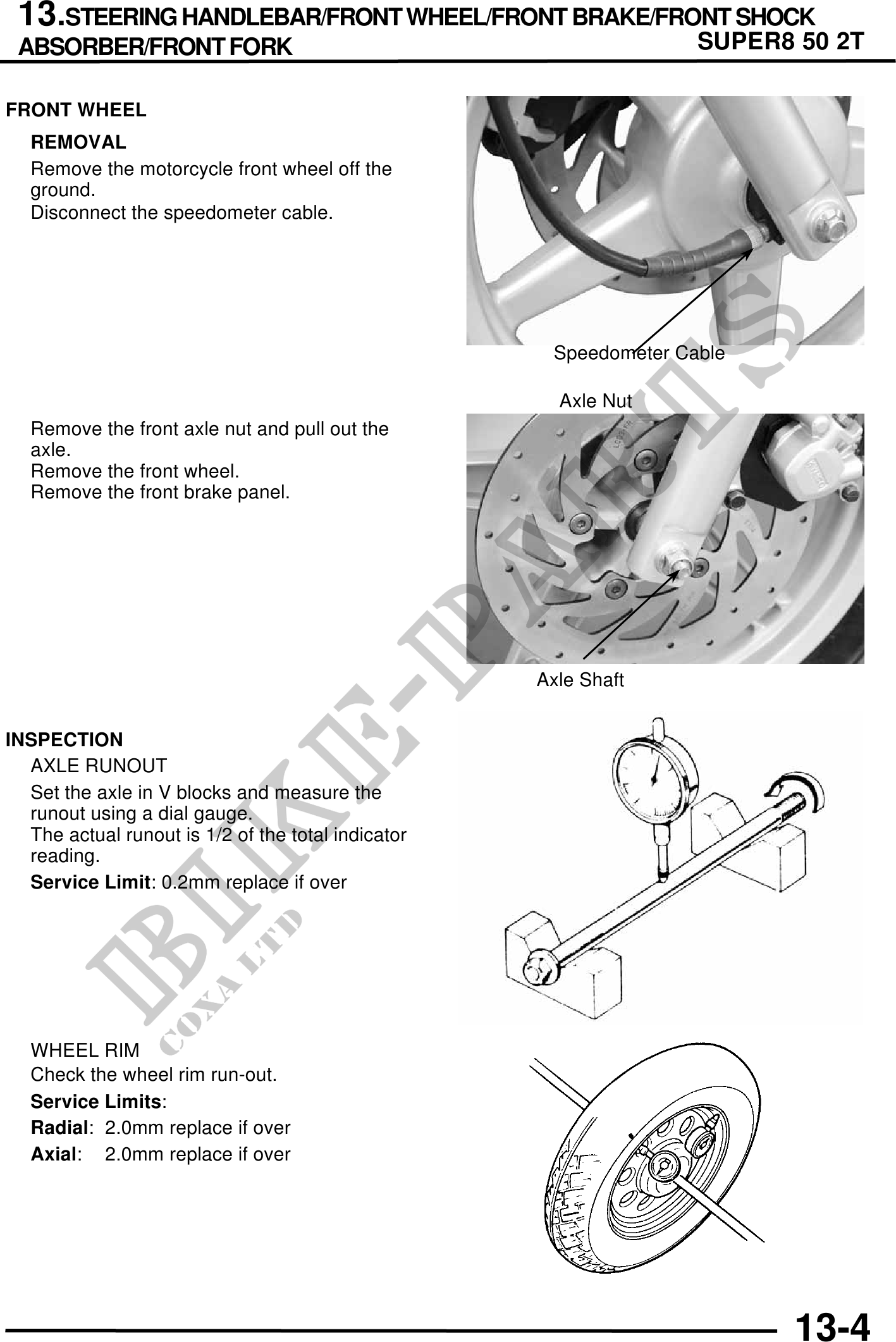

13.STEERING HANDLEBAR/FRONT WHEEL/FRONT BRAKE/FRONT SHOCK
ABSORBER/FRONT FORK SUPER8 50 2T
FRONT WHEEL
REMOVAL
Remove the motorcycle front wheel off the
ground.
Disconnect the speedometer cable.
Speedometer Cable
Axle Nut
Remove the front axle nut and pull out the
axle.
Remove the front wheel.
Remove the front brake panel.
Axle Shaft
INSPECTION
AXLE RUNOUT
Set the axle in V blocks and measure the
runout using a dial gauge.
The actual runout is 1/2 of the total indicator
reading.
Service Limit: 0.2mm replace if over
WHEEL RIM
Check the wheel rim run-out.
Service Limits:
Radial: 2.0mm replace if over
Axial: 2.0mm replace if over
13-4
