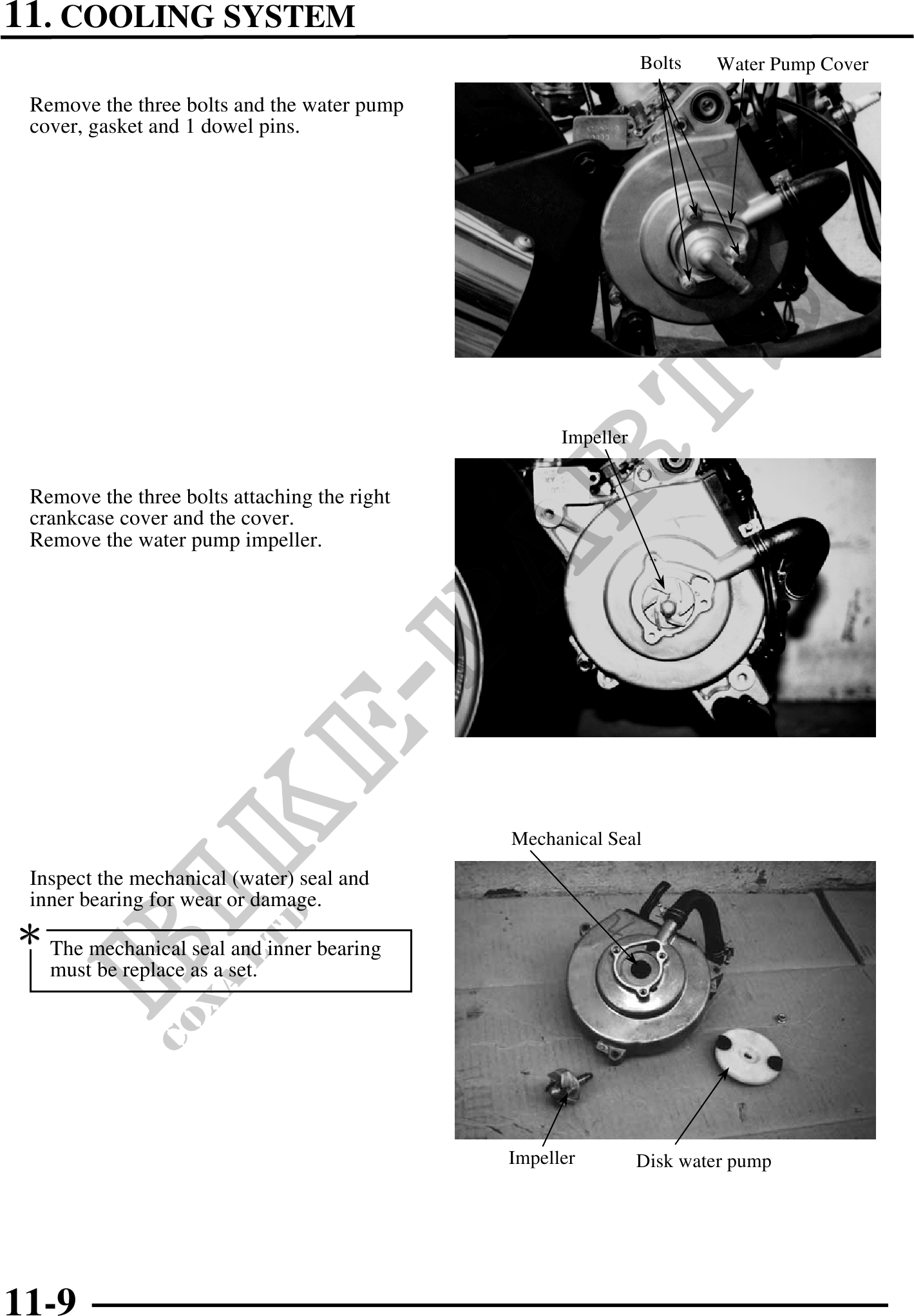

11. COOLING SYSTEM
Bolts Water Pump Cover
Remove the three bolts and the water pump
cover, gasket and 1 dowel pins.
Impeller
Remove the three bolts attaching the right
crankcase cover and the cover.
Remove the water pump impeller.
Mechanical Seal
Inspect the mechanical (water) seal and
inner bearing for wear or damage.
The mechanical seal and inner bearing
must be replace as a set.
Impeller Disk water pump
11-9
