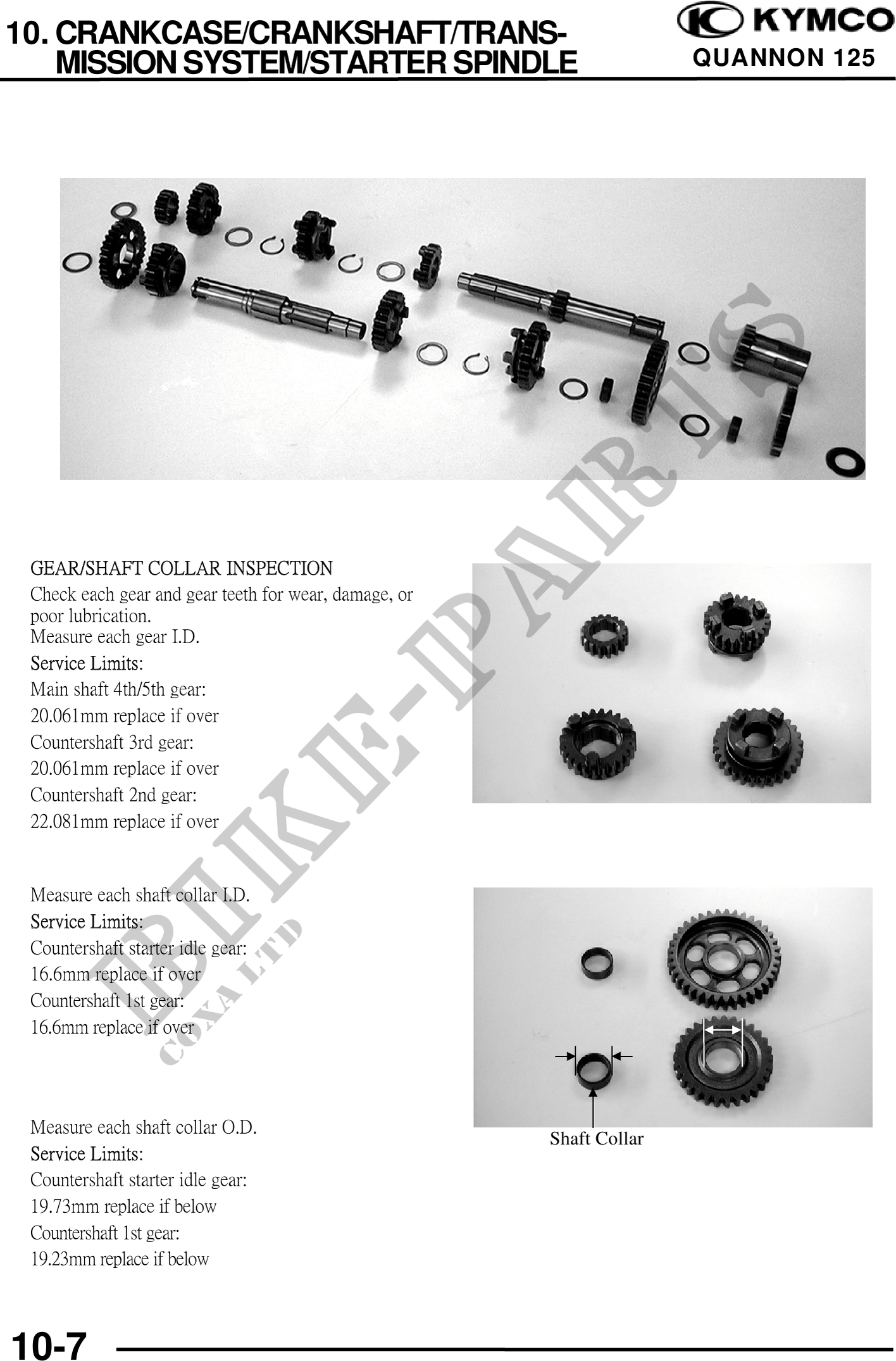

10. CRANKCASE/CRANKSHAFT/TRANS-
MISSION SYSTEM/STARTER SPINDLE QUANNON 125
GEAR/SHAFT COLLAR INSPECTION
Check each gear and gear teeth for wear, damage, or
poor lubrication.
Measure each gear I.D.
Service Limits:
Main shaft 4th/5th gear:
20.061mm replace if over
Countershaft 3rd gear:
20.061mm replace if over
Countershaft 2nd gear:
22.081mm replace if over
Measure each shaft collar I.D.
Service Limits:
Countershaft starter idle gear:
16.6mm replace if over
Countershaft 1st gear:
16.6mm replace if over
Shaft Collar
Measure each shaft collar O.D.
Shaft Collar
Service Limits:
Countershaft starter idle gear:
19.73mm replace if below
Countershaft 1st gear:
19.23mm replace if below
10-7
