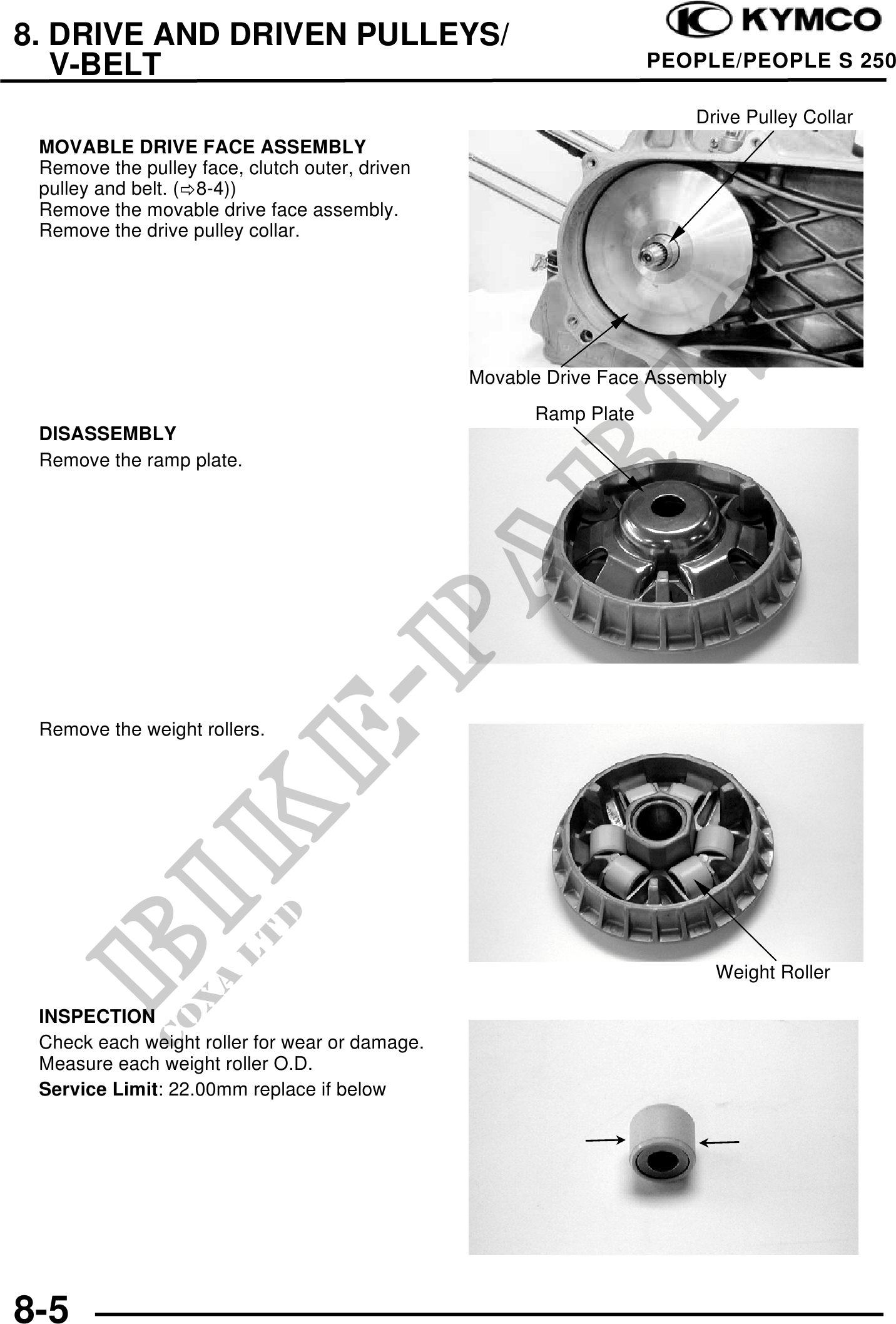

8. DRIVE AND DRIVEN PULLEYS/
V-BELT PEOPLE/PEOPLE S 250
Drive Pulley Collar
MOVABLE DRIVE FACE ASSEMBLY
Remove the pulley face, clutch outer, driven
pulley and belt. ( 8-4))
Remove the movable drive face assembly.
Remove the drive pulley collar.
Movable Drive Face Assembly
Ramp Plate
DISASSEMBLY
Remove the ramp plate.
Remove the weight rollers.
Weight Roller
INSPECTION
Check each weight roller for wear or damage.
Measure each weight roller O.D.
Service Limit: 22.00mm replace if below
