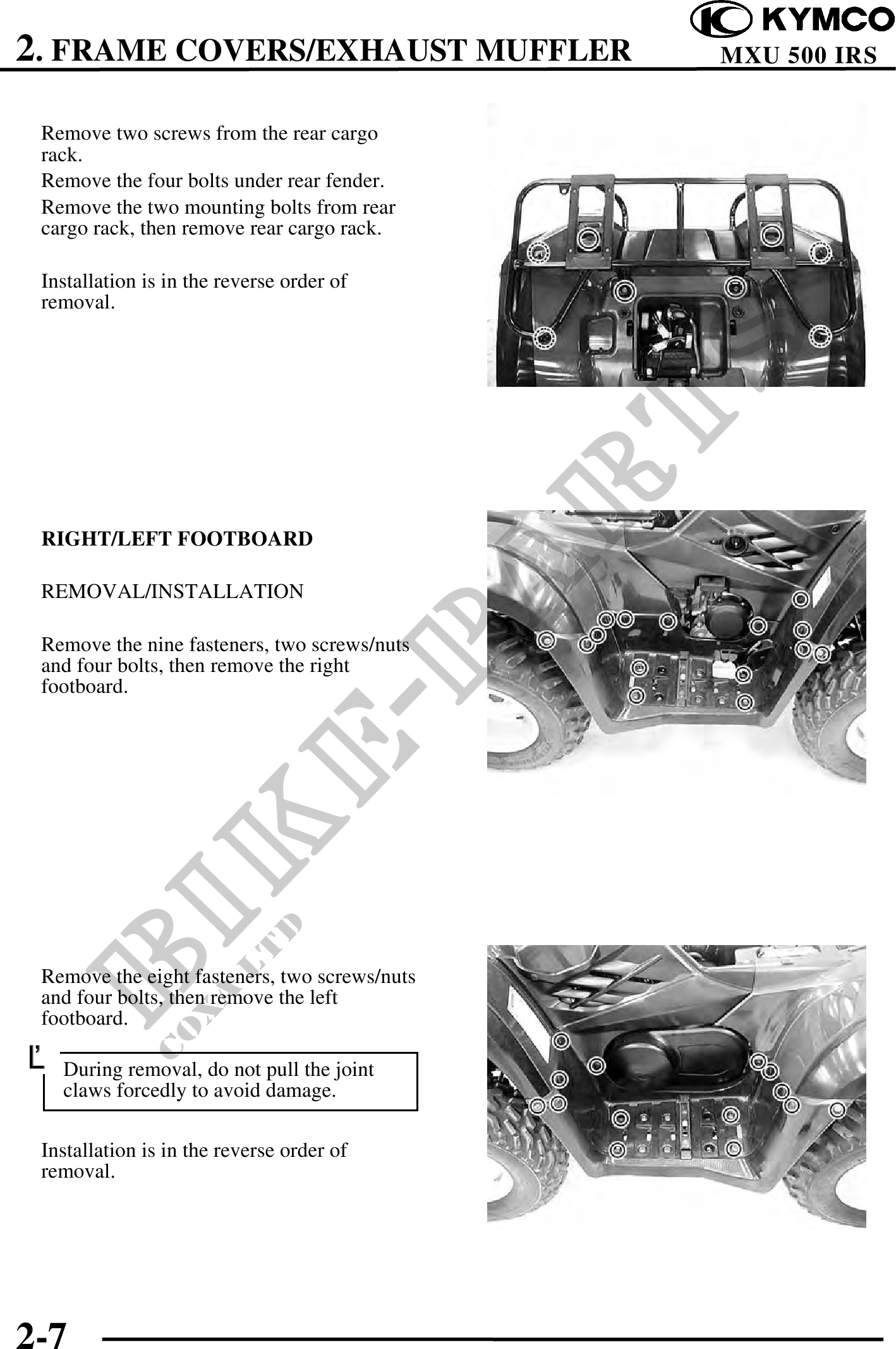

2. FRAME COVERS/EXHAUST MUFFLER MXU 500 IRS
Remove two screws from the rear cargo
rack.
Remove the four bolts under rear fender.
Remove the two mounting bolts from rear
cargo rack, then remove rear cargo rack.
Installation is in the reverse order of
removal.
RIGHT/LEFT FOOTBOARD
REMOVAL/INSTALLATION
Remove the nine fasteners, two screws/nuts
and four bolts, then remove the right
footboard.
Remove the eight fasteners, two screws/nuts
and four bolts, then remove the left
footboard.
During removal, do not pull the joint
claws forcedly to avoid damage.
Installation is in the reverse order of
removal.
2-7
