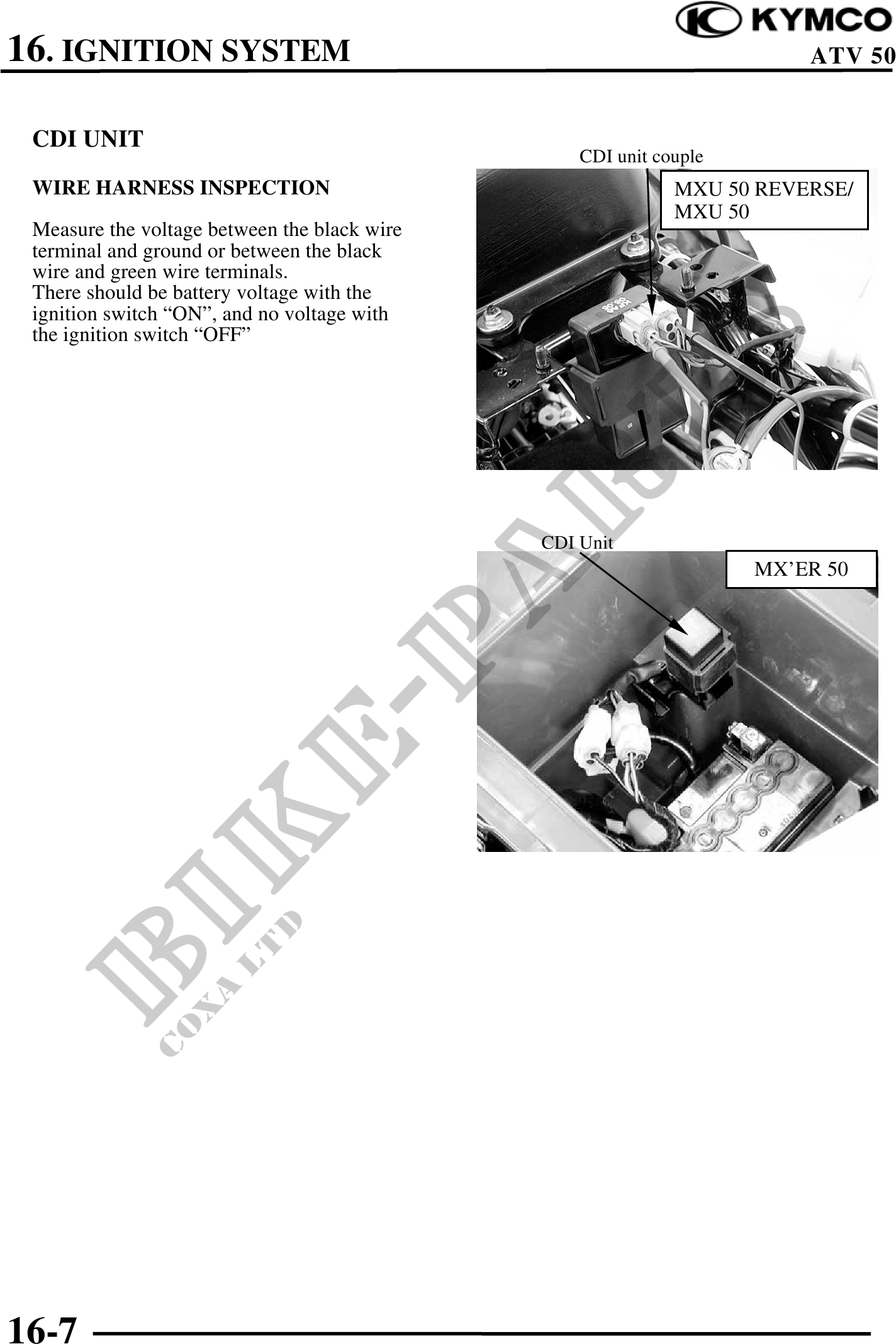

16. IGNITION SYSTEM ATV 50
CDI UNIT
CDI unit couple
WIRE HARNESS INSPECTION MXU 50 REVERSE/
MXU 50
Measure the voltage between the black wire
terminal and ground or between the black
wire and green wire terminals.
There should be battery voltage with the
ignition switch "ON", and no voltage with
the ignition switch "OFF"
CDI Unit
MX'ER 50
