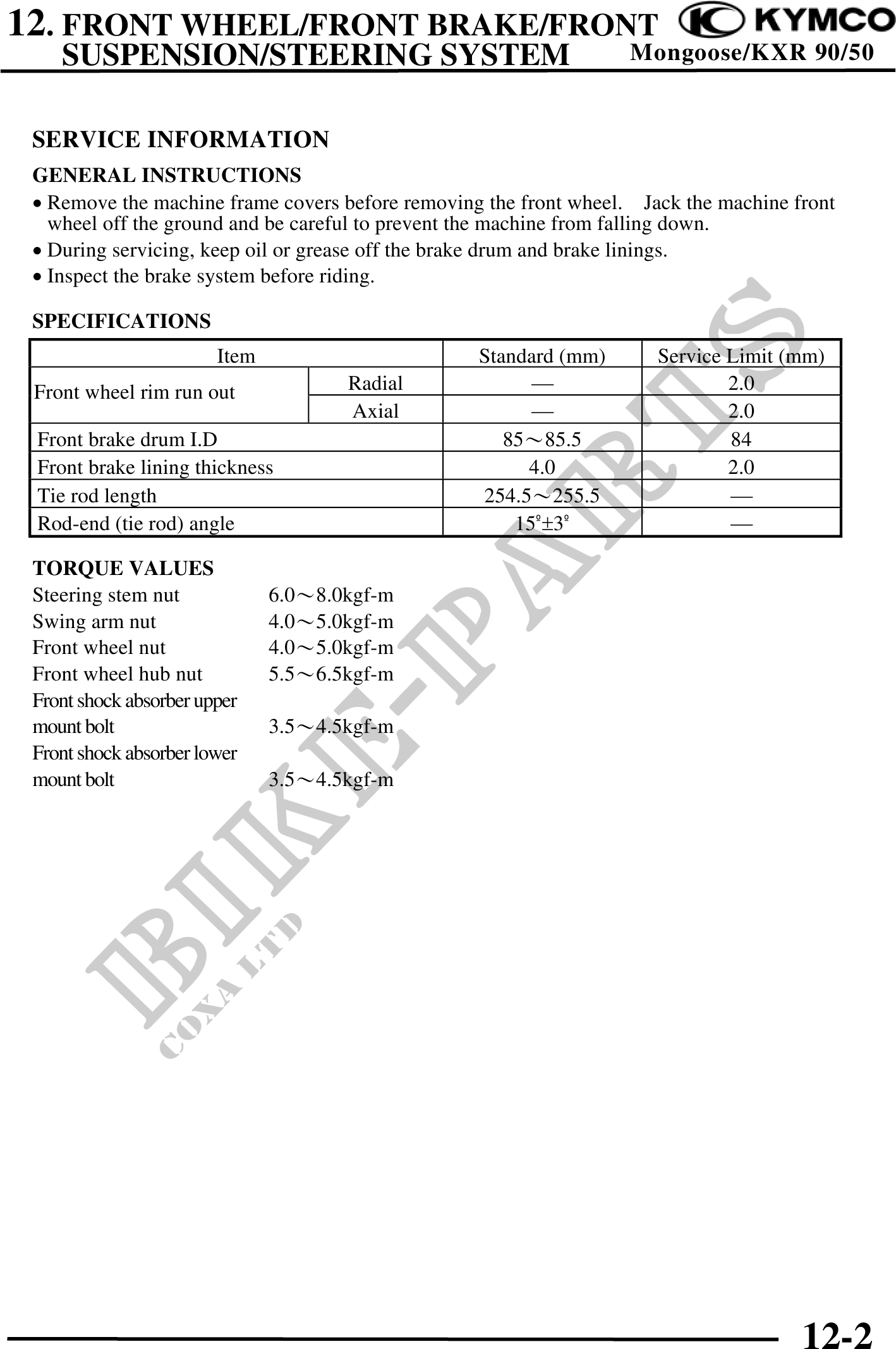

12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM Mongoose/KXR 90/50
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· Remove the machine frame covers before removing the front wheel. Jack the machine front
wheel off the ground and be careful to prevent the machine from falling down.
· During servicing, keep oil or grease off the brake drum and brake linings.
· Inspect the brake system before riding.
SPECIFICATIONS
Item Standard (mm) Service Limit (mm)
Front wheel rim run out Radial 2.0
Axial 2.0
Front brake drum I.D 8585.5 84
Front brake lining thickness 4.0 2.0
Tie rod length 254.5255.5
Rod-end (tie rod) angle 153
TORQUE VALUES
Steering stem nut 6.08.0kgf-m
Swing arm nut 4.05.0kgf-m
Front wheel nut 4.05.0kgf-m
Front wheel hub nut 5.56.5kgf-m
Front shock absorber upper
mount bolt 3.54.5kgf-m
Front shock absorber lower
mount bolt 3.54.5kgf-m
12-2
