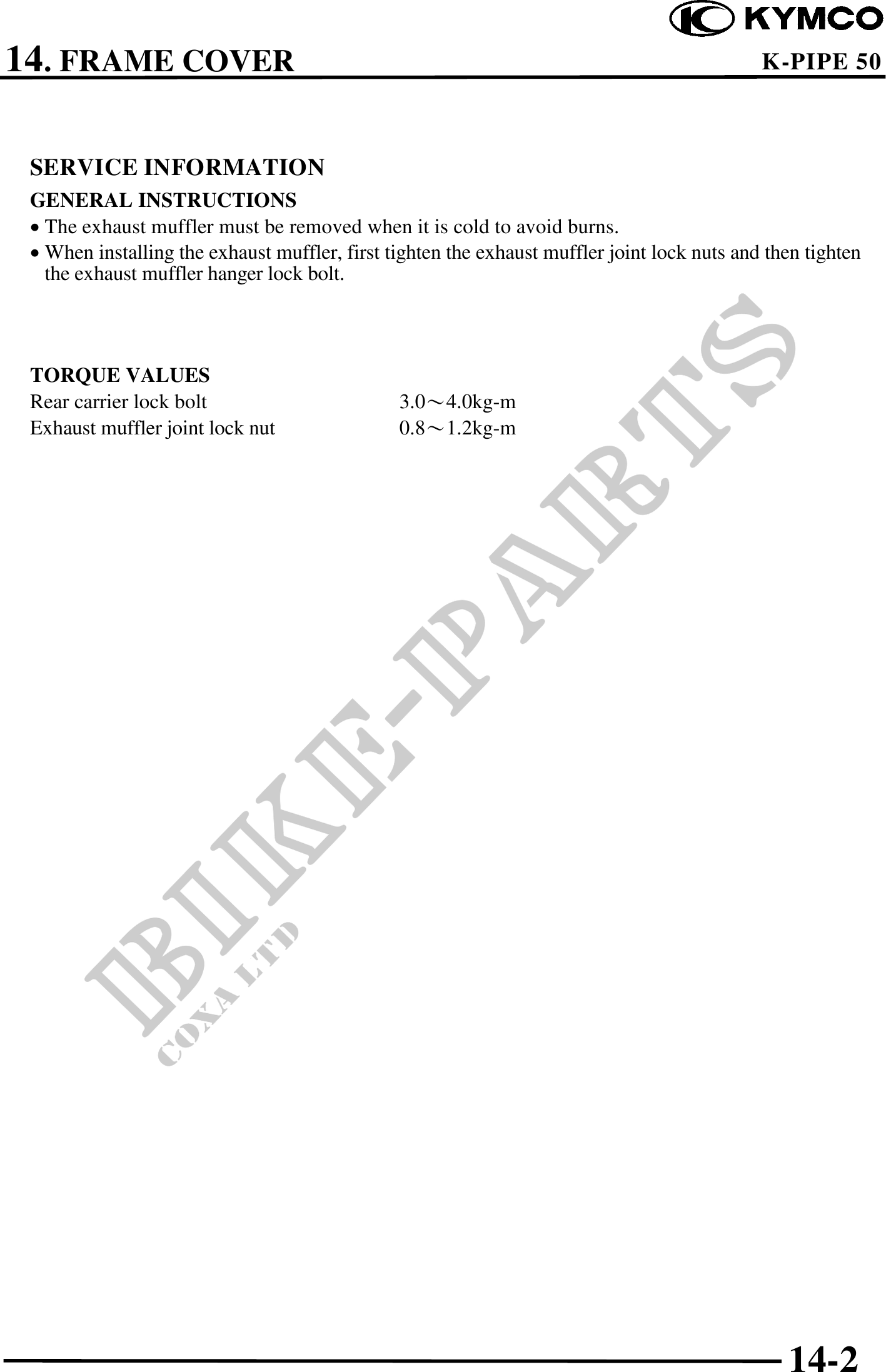

14. FRAME COVER K-PIPE 50
SERVICE INFORMATION
GENERAL INSTRUCTIONS
The exhaust muffler must be removed when it is cold to avoid burns.
When installing the exhaust muffler, first tighten the exhaust muffler joint lock nuts and then tighten
the exhaust muffler hanger lock bolt.
TORQUE VALUES
Rear carrier lock bolt 3.04.0kg-m
Exhaust muffler joint lock nut 0.81.2kg-m
14-2
