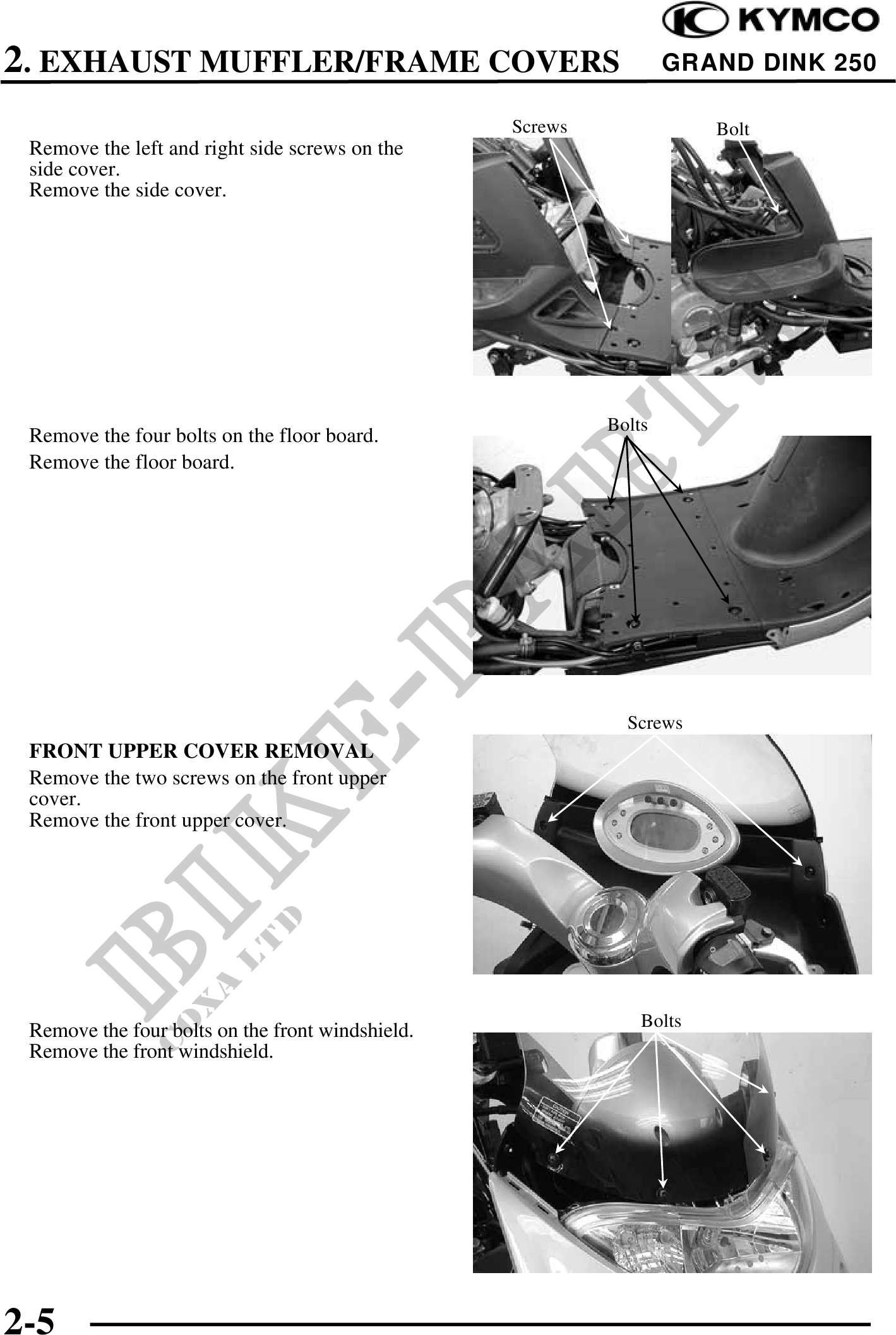

2. EXHAUST MUFFLER/FRAME COVERS GRAND DINK 250
Screws Bolt
Remove the left and right side screws on the
side cover.
Remove the side cover.
Bolts
Remove the four bolts on the floor board.
Remove the floor board.
Screws
FRONT UPPER COVER REMOVAL
Remove the two screws on the front upper
cover.
Remove the front upper cover.
Bolts
Remove the four bolts on the front windshield.
Remove the front windshield.
2-5
