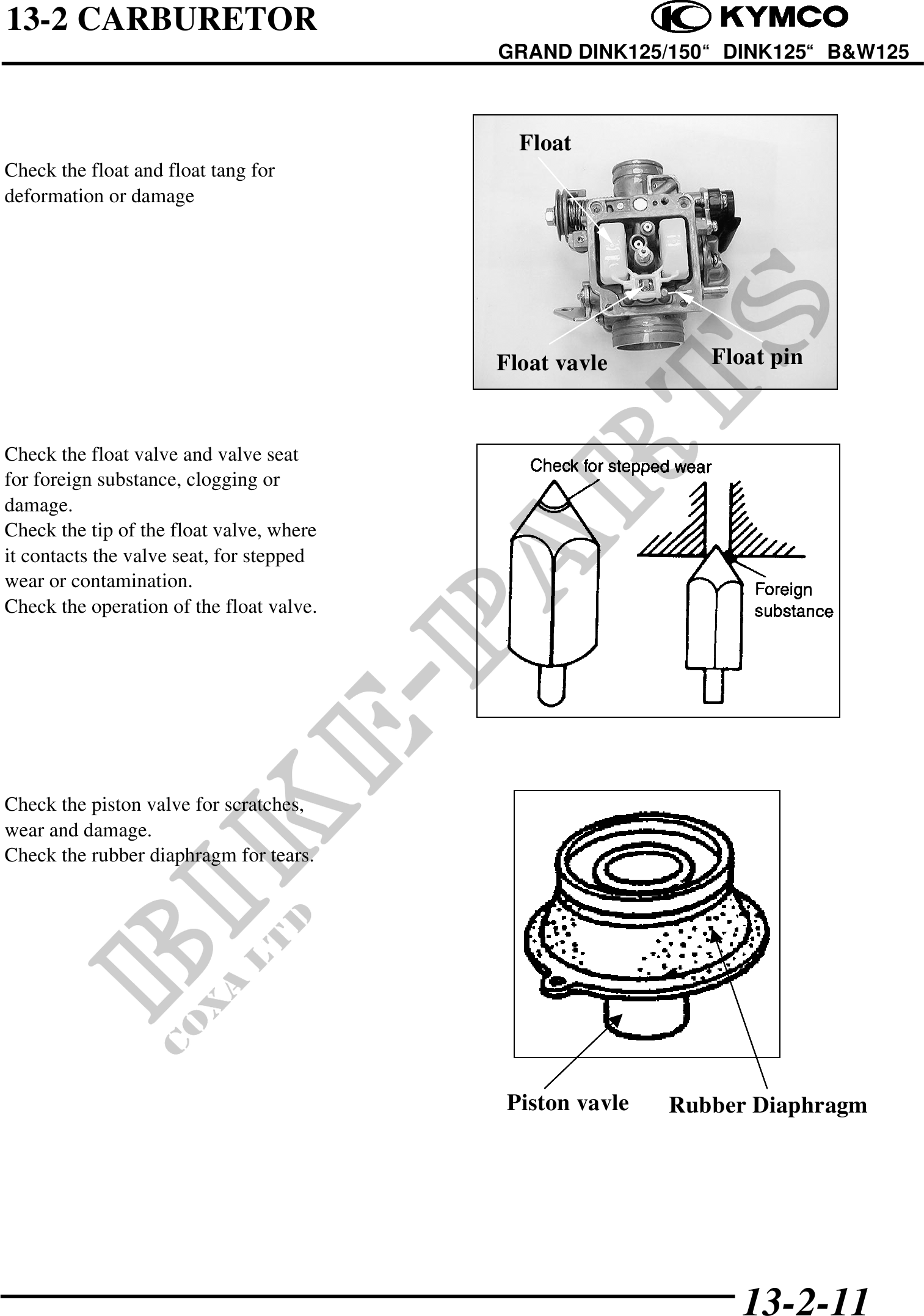

13-2 CARBURETOR
GRAND DINK125/150DINK125B&W125
Float
Check the float and float tang for
deformation or damage
Float vavle Float pin
Check the float valve and valve seat
for foreign substance, clogging or
damage.
Check the tip of the float valve, where
it contacts the valve seat, for stepped
wear or contamination.
Check the operation of the float valve.
Check the piston valve for scratches,
wear and damage.
Check the rubber diaphragm for tears.
Piston vavle Rubber Diaphragm
13-2-11
