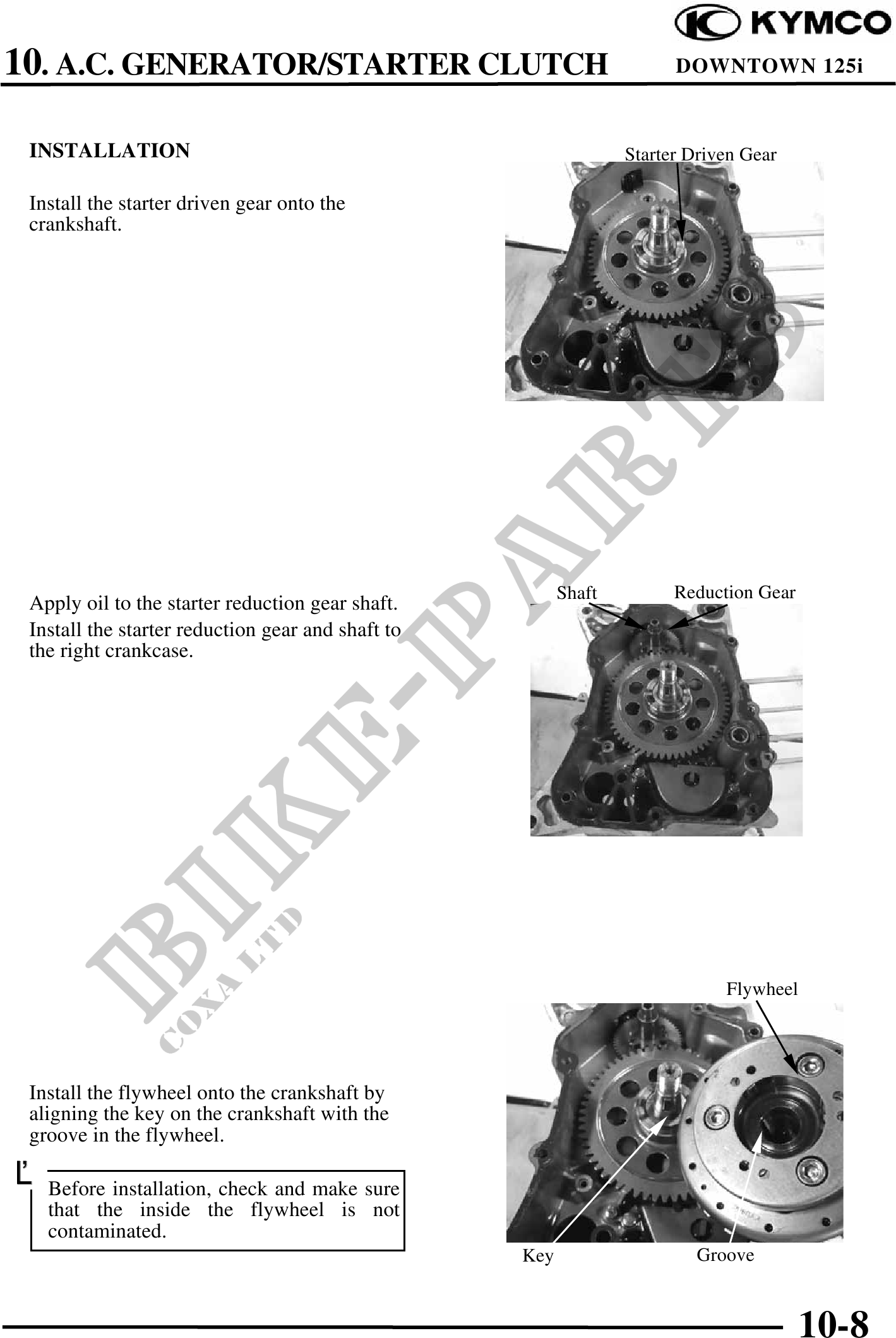

10. A.C. GENERATOR/STARTER CLUTCH DOWNTOWN 125i
INSTALLATION Starter Driven Gear
Install the starter driven gear onto the
crankshaft.
Shaft Reduction Gear
Apply oil to the starter reduction gear shaft.
Install the starter reduction gear and shaft to
the right crankcase.
Flywheel
Install the flywheel onto the crankshaft by
aligning the key on the crankshaft with the
groove in the flywheel.
Before installation, check and make sure
that the inside the flywheel is not
contaminated.
Key Groove
10-8
