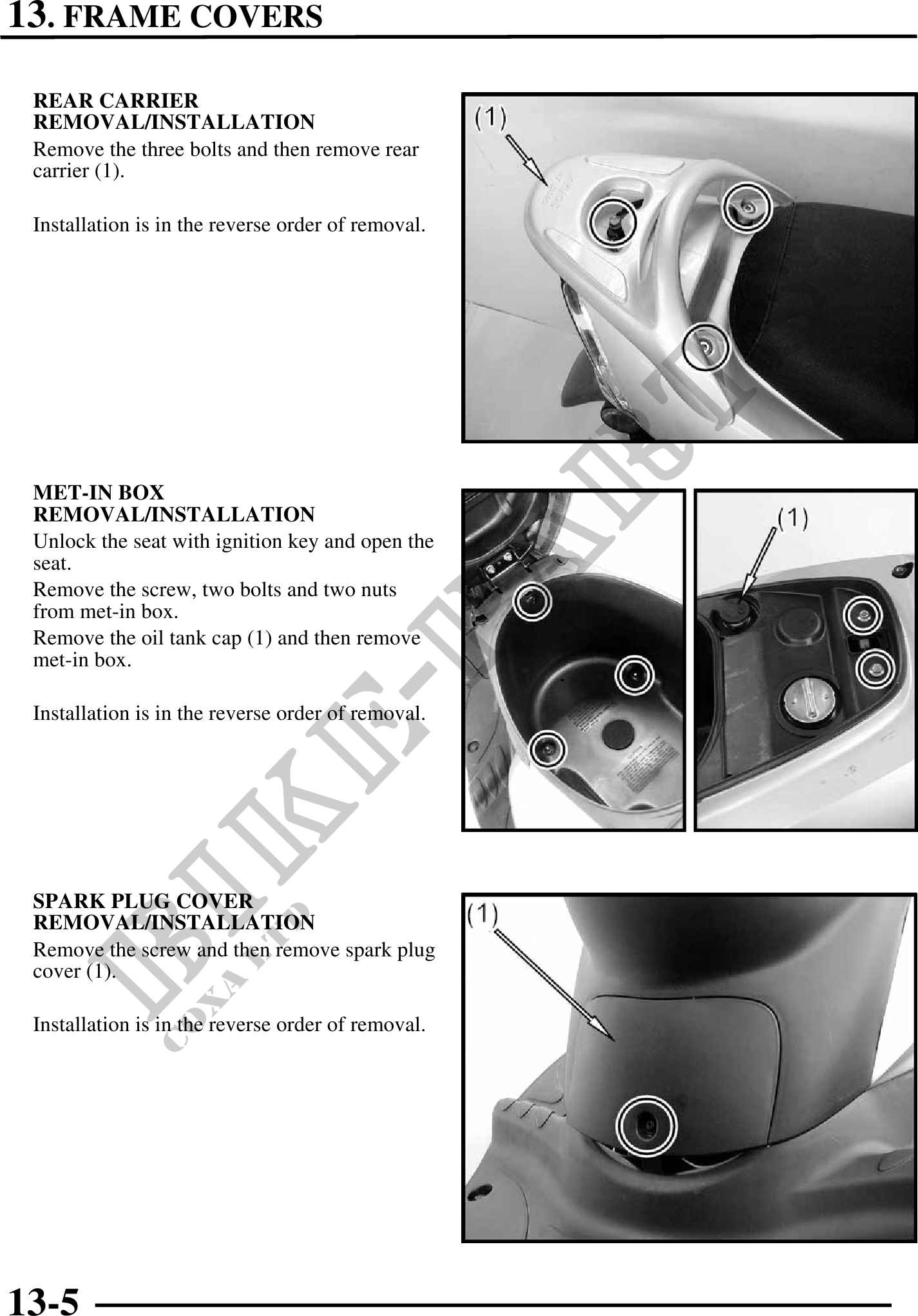

13. FRAME COVERS
REAR CARRIER
REMOVAL/INSTALLATION
Remove the three bolts and then remove rear
carrier (1).
Installation is in the reverse order of removal.
MET-IN BOX
REMOVAL/INSTALLATION
Unlock the seat with ignition key and open the
seat.
Remove the screw, two bolts and two nuts
from met-in box.
Remove the oil tank cap (1) and then remove
met-in box.
Installation is in the reverse order of removal.
SPARK PLUG COVER
REMOVAL/INSTALLATION
Remove the screw and then remove spark plug
cover (1).
Installation is in the reverse order of removal.
13-5
