10. CRANKCASE/CRANKSHAFT SUPER8 50 2T
Dowel Pins

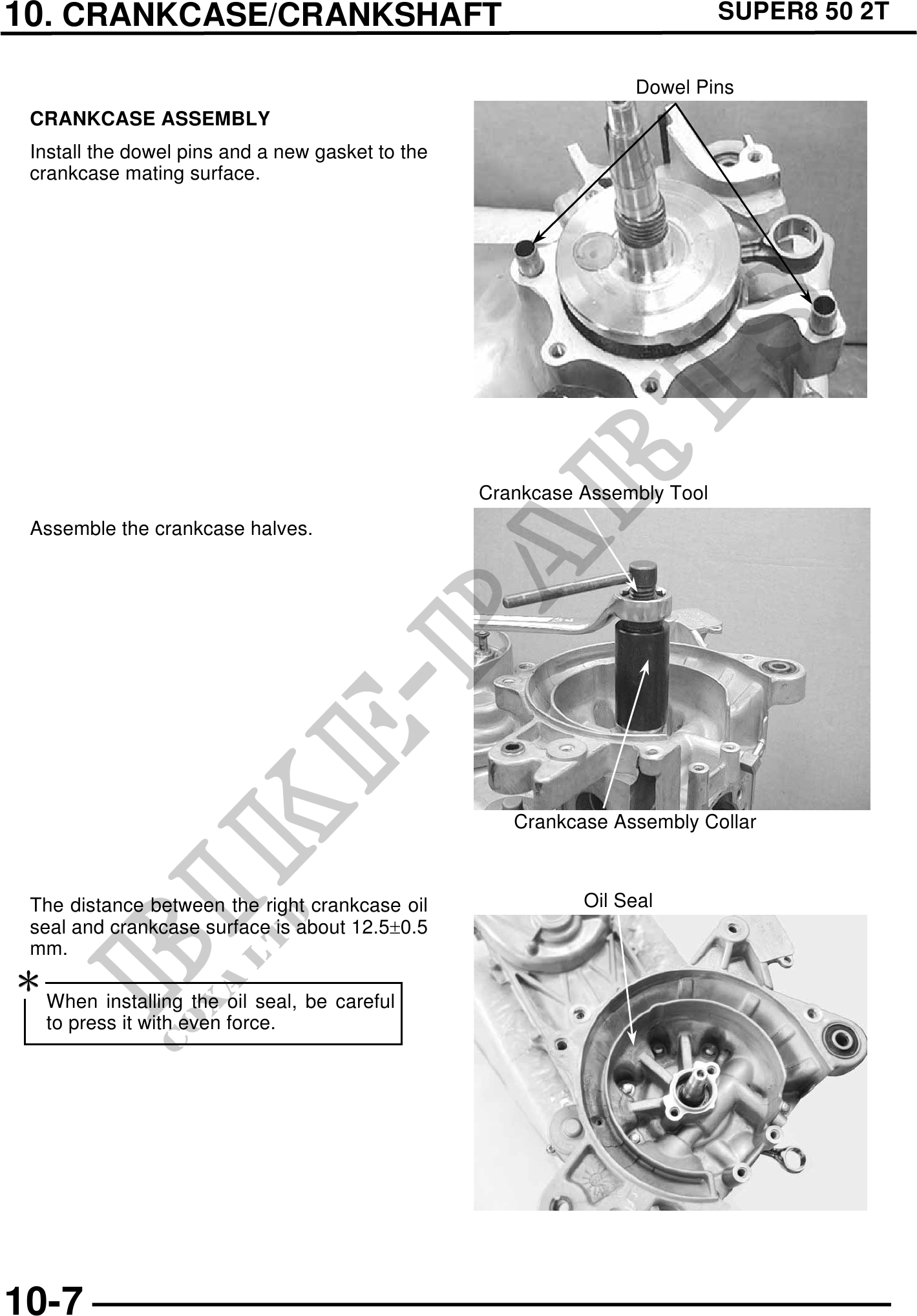

CRANKCASE ASSEMBLY
Install the dowel pins and a new gasket to the
crankcase mating surface.
Crankcase Assembly Tool
Assemble the crankcase halves.
Crankcase Assembly Collar
The distance between the right crankcase oil Oil Seal
seal and crankcase surface is about 12.50.5
mm.
When installing the oil seal, be careful
to press it with even force.
