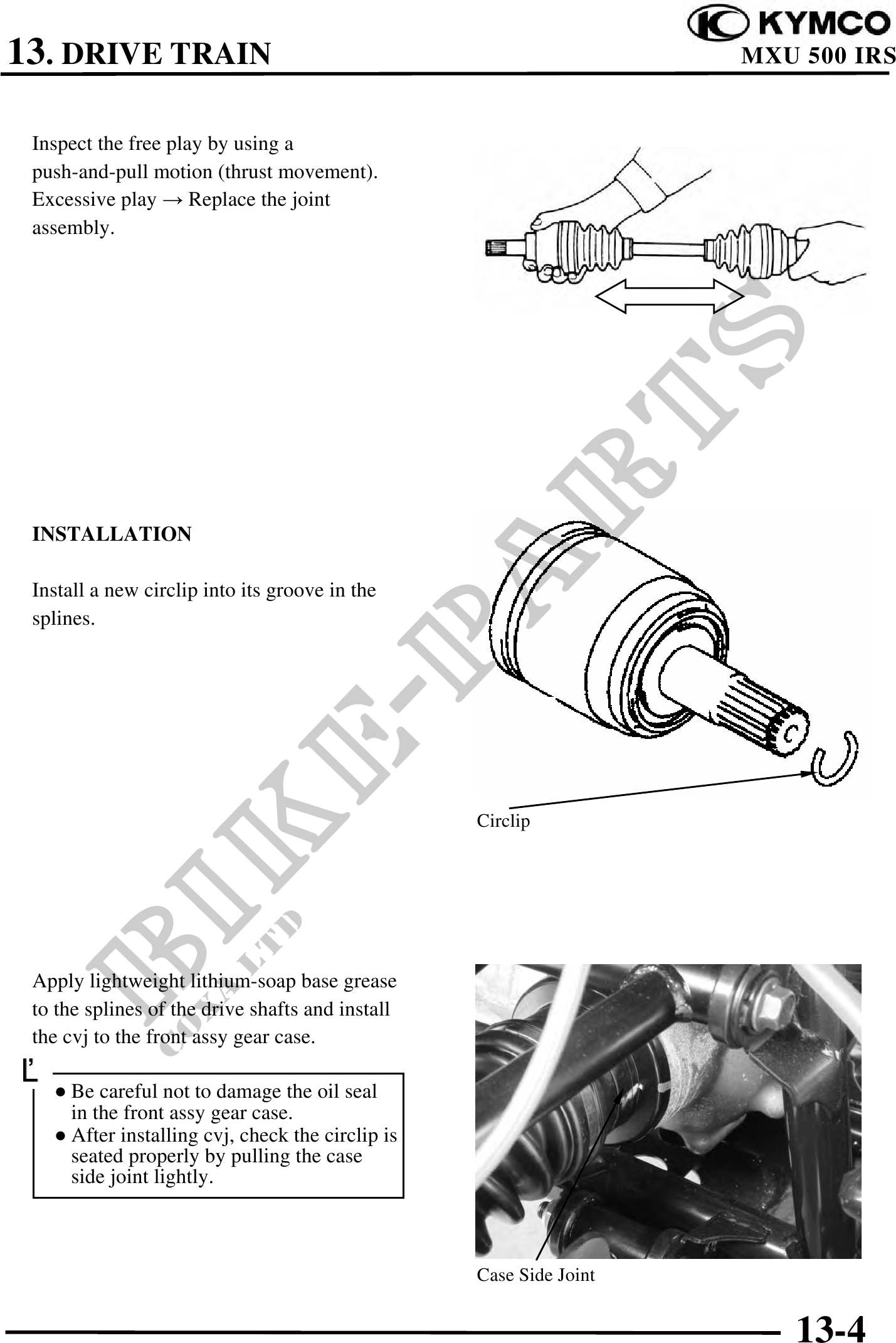

          13. DRIVE TRAIN                                                     MXU 500 IRS


 Inspect the free play by using a
 push-and-pull motion (thrust movement).
 Excessive play  Replace the joint
 assembly.




 INSTALLATION

 Install a new circlip into its groove in the
 splines.




                                                  Circlip




 Apply lightweight lithium-soap base grease
 to the splines of the drive shafts and install
 the cvj to the front assy gear case.

    Be careful not to damage the oil seal
    in the front assy gear case.
    After installing cvj, check the circlip is
    seated properly by pulling the case
    side joint lightly.



                                                  Case Side Joint


                                                                       13-4
