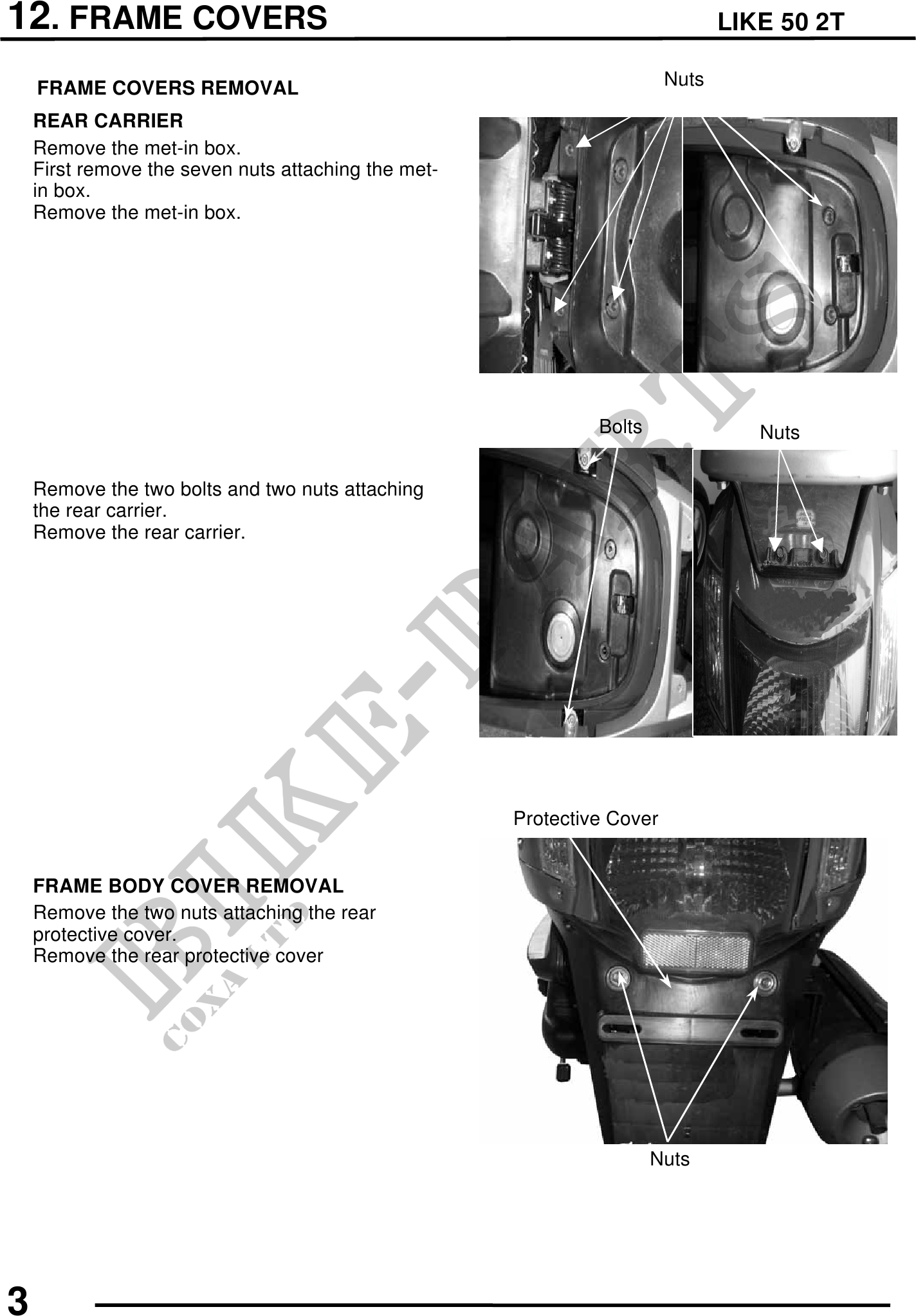

12. FRAME COVERS LIKE 50 2T
FRAME COVERS REMOVAL Nuts
REAR CARRIER
Remove the met-in box.
First remove the seven nuts attaching the met-
in box.
Remove the met-in box.
Bolts Nuts
Remove the two bolts and two nuts attaching
the rear carrier.
Remove the rear carrier.
Protective Cover
FRAME BODY COVER REMOVAL
Remove the two nuts attaching the rear
protective cover.
Remove the rear protective cover
Nuts
3
