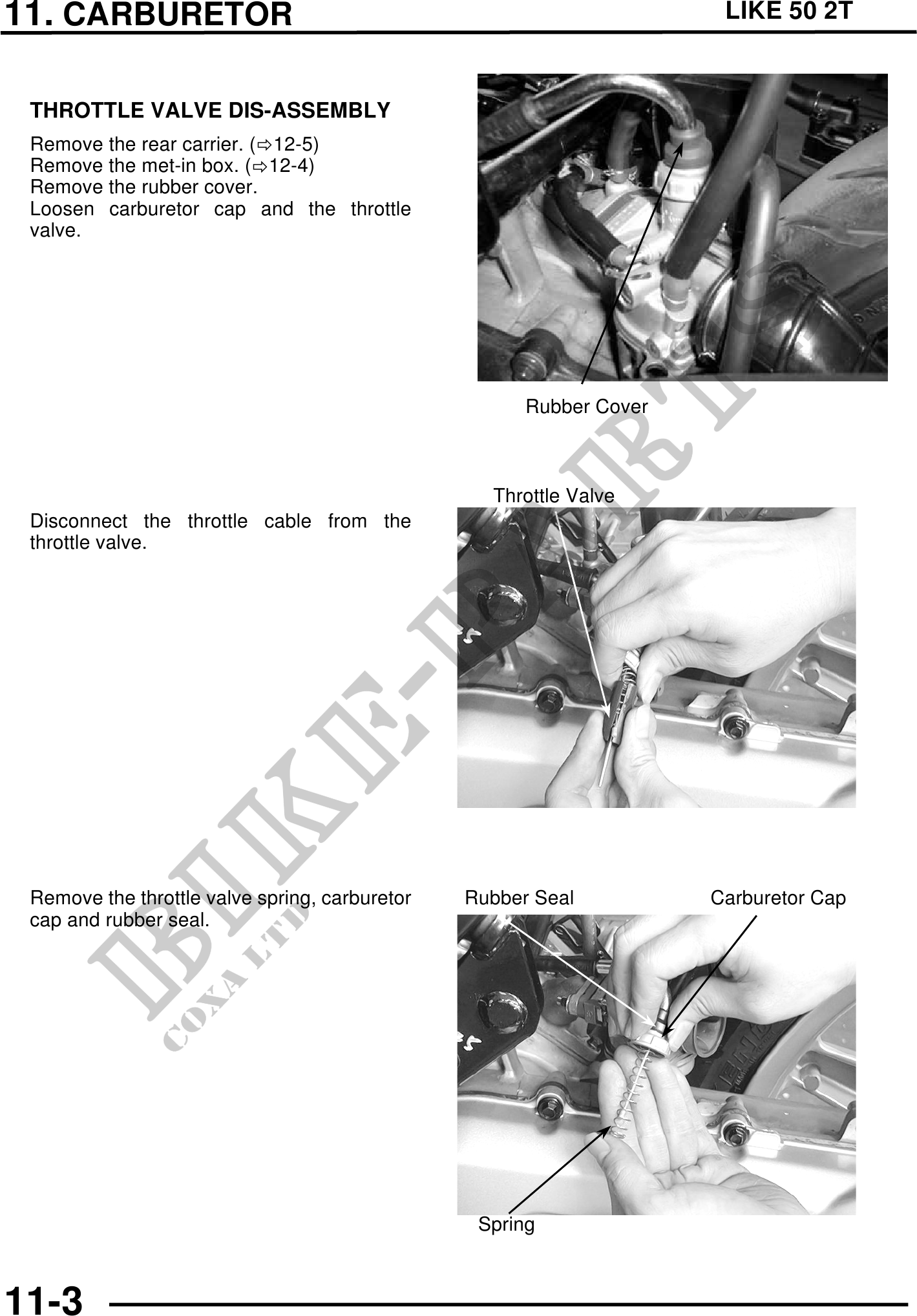

11. CARBURETOR LIKE 50 2T
THROTTLE VALVE DIS-ASSEMBLY
Remove the rear carrier. ( 12-5)
Remove the met-in box. ( 12-4)
Remove the rubber cover.
Loosen carburetor cap and the throttle
valve.
Rubber Cover
Throttle Valve
Disconnect the throttle cable from the
throttle valve.
Remove the throttle valve spring, carburetor Rubber Seal Carburetor Cap
cap and rubber seal.
Spring
11-3
