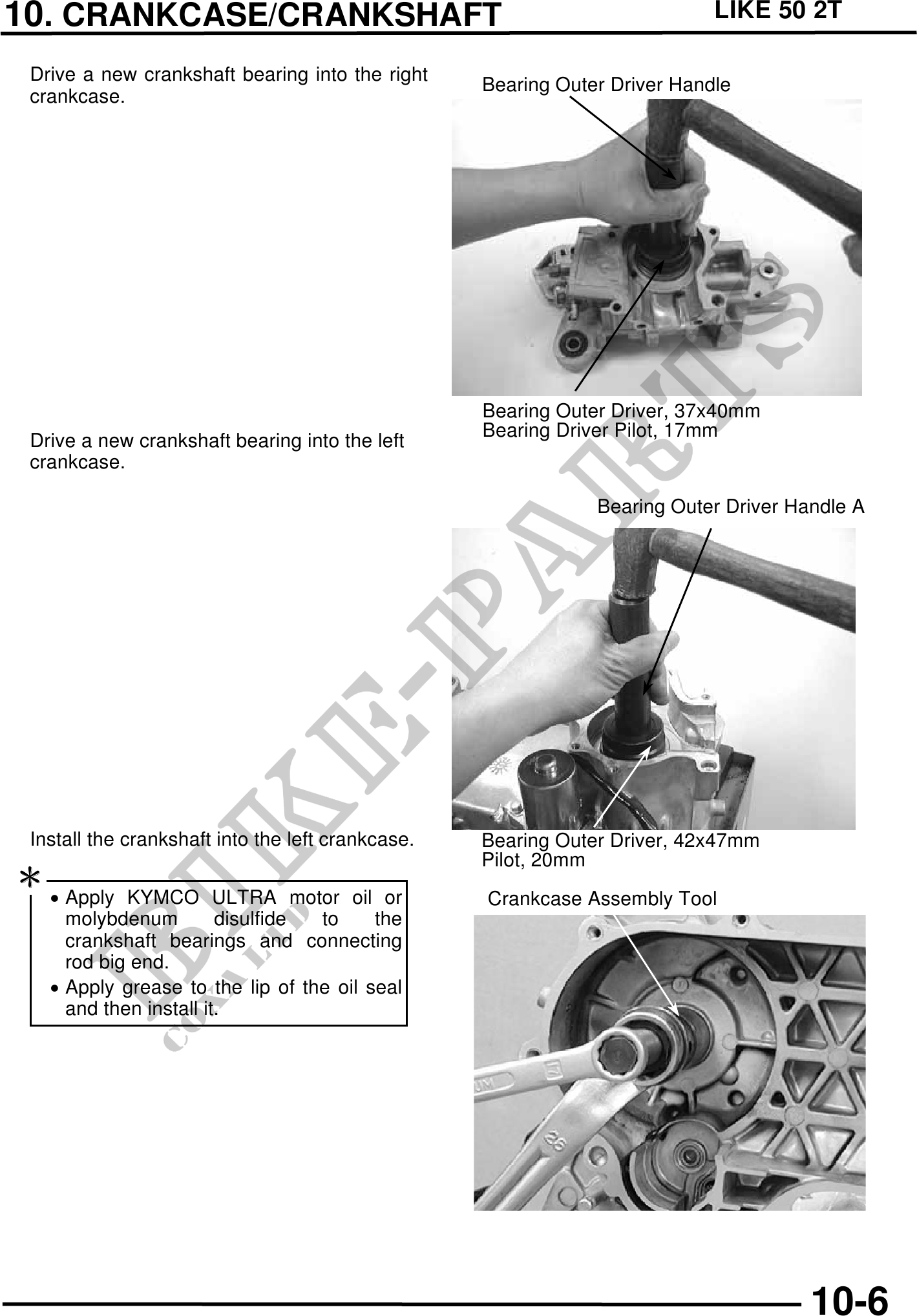

10. CRANKCASE/CRANKSHAFT LIKE 50 2T
Drive a new crankshaft bearing into the right
Bearing Outer Driver Handle
crankcase.
Bearing Outer Driver, 37x40mm
Bearing Driver Pilot, 17mm
Drive a new crankshaft bearing into the left
crankcase.
Bearing Outer Driver Handle A
Install the crankshaft into the left crankcase. Bearing Outer Driver, 42x47mm
Pilot, 20mm
· Apply KYMCO ULTRA motor oil or Crankcase Assembly Tool
molybdenum disulfide to the
crankshaft bearings and connecting
rod big end.
· Apply grease to the lip of the oil seal
and then install it.
10-6
