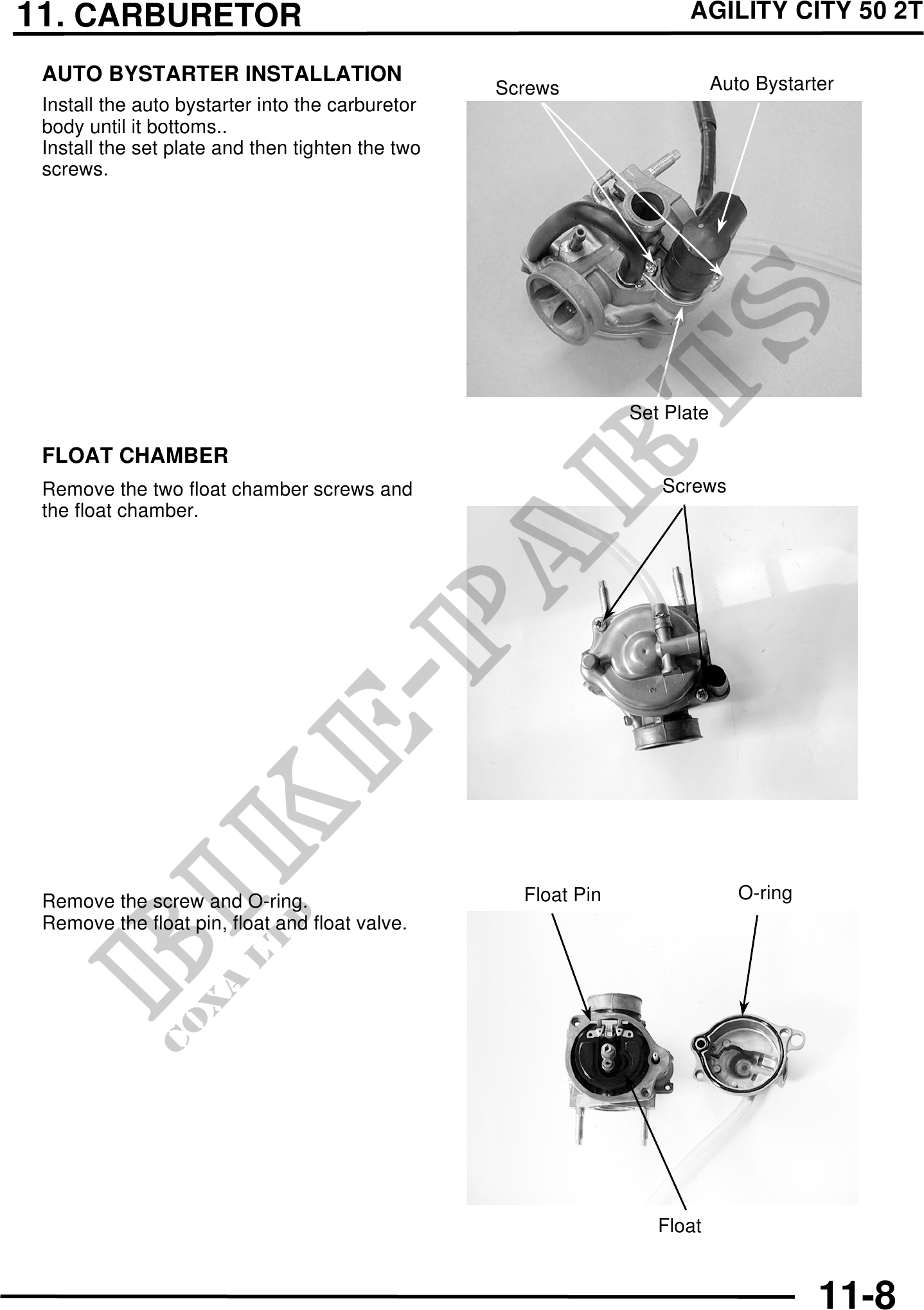

11. CARBURETOR AGILITY CITY 50 2T
AUTO BYSTARTER INSTALLATION Auto Bystarter
Screws
Install the auto bystarter into the carburetor
body until it bottoms..
Install the set plate and then tighten the two
screws.
Set Plate
FLOAT CHAMBER
Remove the two float chamber screws and Screws
the float chamber.
Remove the screw and O-ring. Float Pin O-ring
Remove the float pin, float and float valve.
Float
11-8
