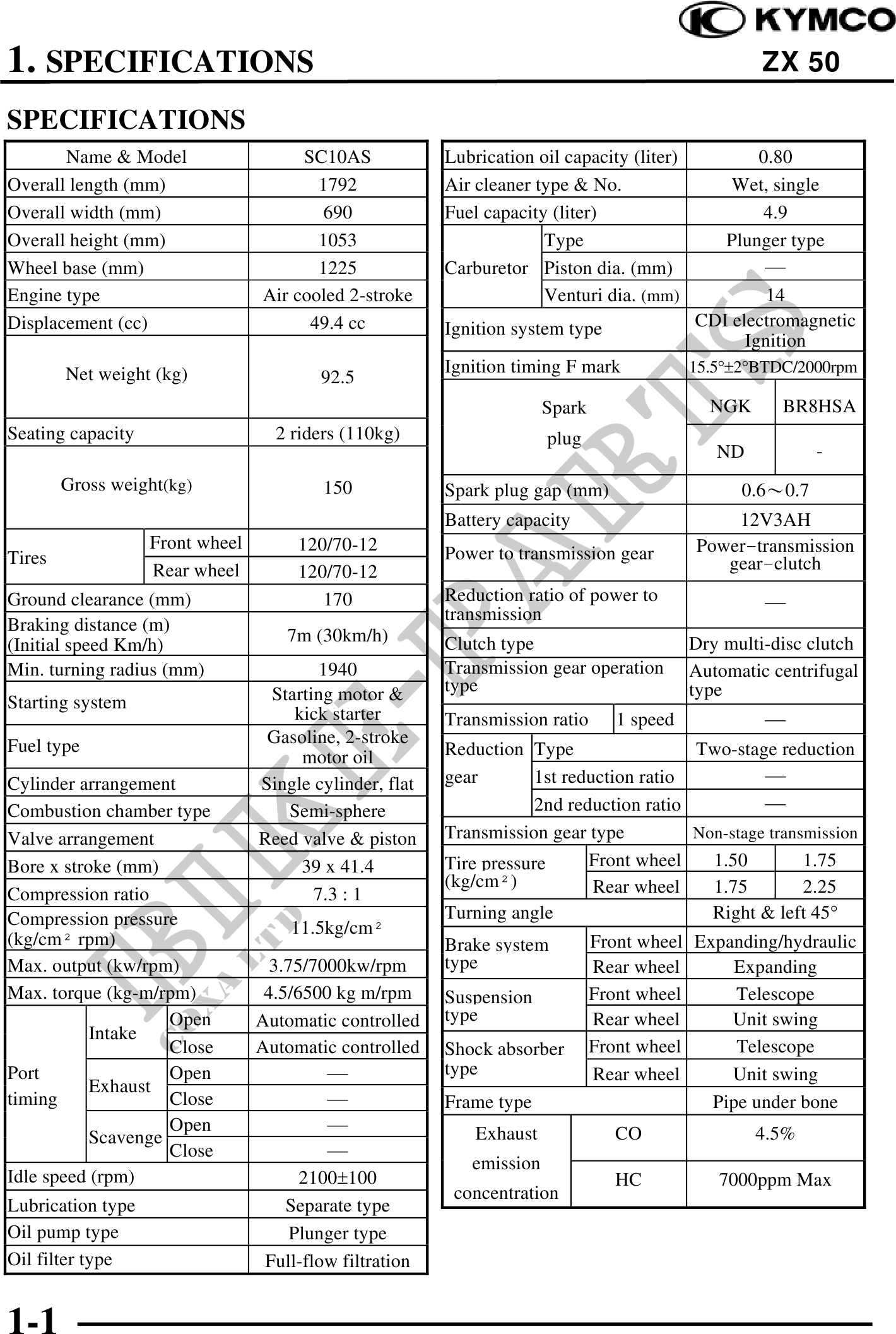

          1. SPECIFICATIONS                                                                                    ZX 50

SPECIFICATIONS
       Name & Model                   SC10AS             Lubrication oil capacity (liter)           0.80
Overall length (mm)                     1792             Air cleaner type & No.                 Wet, single
Overall width (mm)                       690             Fuel capacity (liter)                      4.9
Overall height (mm)                     1053                          Type                      Plunger type
Wheel base (mm)                         1225             Carburetor Piston dia. (mm)
Engine type                      Air cooled 2-stroke                  Venturi dia. (mm)              14
Displacement (cc)                      49.4 cc           Ignition system type               CDI electromagnetic
                                                                                                  Ignition
        Net weight (kg)                                  Ignition timing F mark             15.5°2°BTDC/2000rpm
                                         92.5
                                                                       Spark                  NGK      BR8HSA
Seating capacity                   2 riders (110kg)                    plug
                                                                                               ND
        Gross weight(kg)                 150             Spark plug gap (mm)                      0.60.7
                                                         Battery capacity                       12V3AH
                   Front wheel        120/70-12                                             Power-transmission
Tires                                                    Power to transmission gear
                   Rear wheel         120/70-12                                                gear-clutch
Ground clearance (mm)                    170             Reduction ratio of power to
                                                         transmission
Braking distance (m)
(Initial speed Km/h)                 7m (30km/h)         Clutch type                        Dry multi-disc clutch
Min. turning radius (mm)                 1940            Transmission gear operation        Automatic centrifugal
                                  Starting motor &       type                               type
Starting system
                                     kick starter        Transmission ratio       1 speed
Fuel type                         Gasoline, 2-stroke
                                      motor oil          Reduction Type                  Two-stage reduction
Cylinder arrangement             Single cylinder, flat   gear        1st reduction ratio
Combustion chamber type             Semi-sphere                      2nd reduction ratio
Valve arrangement                Reed valve & piston     Transmission gear type          Non-stage transmission
Bore x stroke (mm)                    39 x 41.4          Tire pressure      Front wheel    1.50         1.75
                                                         (kg/cm)             Rear wheel    1.75         2.25
Compression ratio                       7.3 : 1
Compression pressure                                     Turning angle                     Right & left 45°
                                     11.5kg/cm
(kg/cm rpm)                                              Brake system          Front wheel Expanding/hydraulic
Max. output (kw/rpm)               3.75/7000kw/rpm       type                  Rear wheel       Expanding
Max. torque (kg-m/rpm)            4.5/6500 kg m/rpm      Suspension            Front wheel      Telescope
                    Open         Automatic controlled    type                  Rear wheel      Unit swing
           Intake
                    Close        Automatic controlled    Shock absorber        Front wheel      Telescope
Port                Open                                 type                  Rear wheel      Unit swing
           Exhaust
timing              Close                                Frame type                          Pipe under bone
                    Open                                     Exhaust              CO                4.5%
           Scavenge
                    Close
                                                            emission
Idle speed (rpm)                       2100100                                    HC           7000ppm Max
                                                          concentration
Lubrication type                     Separate type
Oil pump type                         Plunger type
Oil filter type                   Full-flow filtration
