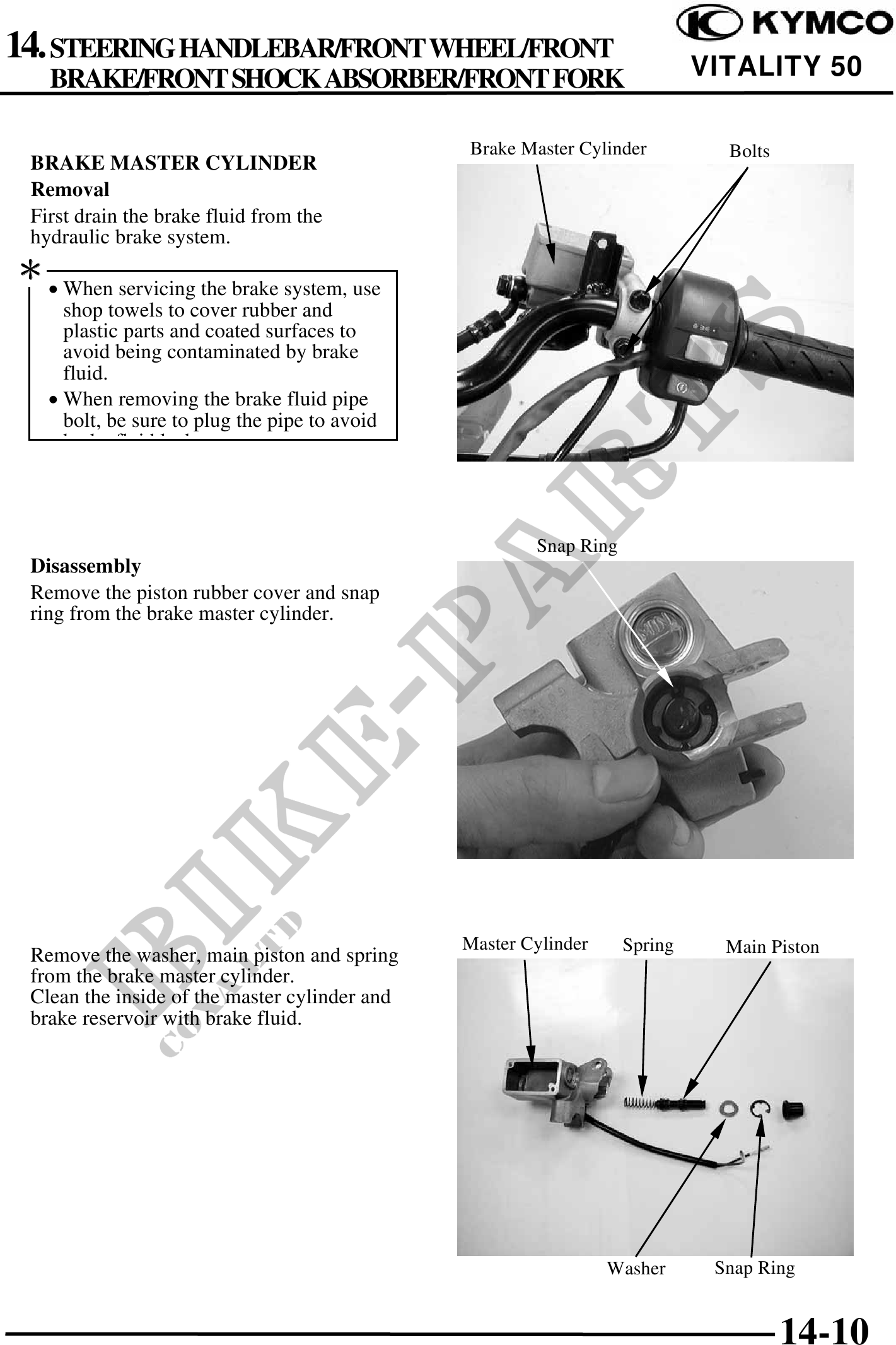

14. STEERING HANDLEBAR/FRONT WHEEL/FRONT VITALITY 50
BRAKE/FRONT SHOCK ABSORBER/FRONT FORK
Brake Master Cylinder Bolts
BRAKE MASTER CYLINDER
Removal
First drain the brake fluid from the
hydraulic brake system.
· When servicing the brake system, use
shop towels to cover rubber and
plastic parts and coated surfaces to
avoid being contaminated by brake
fluid.
· When removing the brake fluid pipe
bolt, be sure to plug the pipe to avoid
b k fl id l k
Snap Ring
Disassembly
Remove the piston rubber cover and snap
ring from the brake master cylinder.
Master Cylinder Spring Main Piston
Remove the washer, main piston and spring
from the brake master cylinder.
Clean the inside of the master cylinder and
brake reservoir with brake fluid.
Washer Snap Ring
14-10
