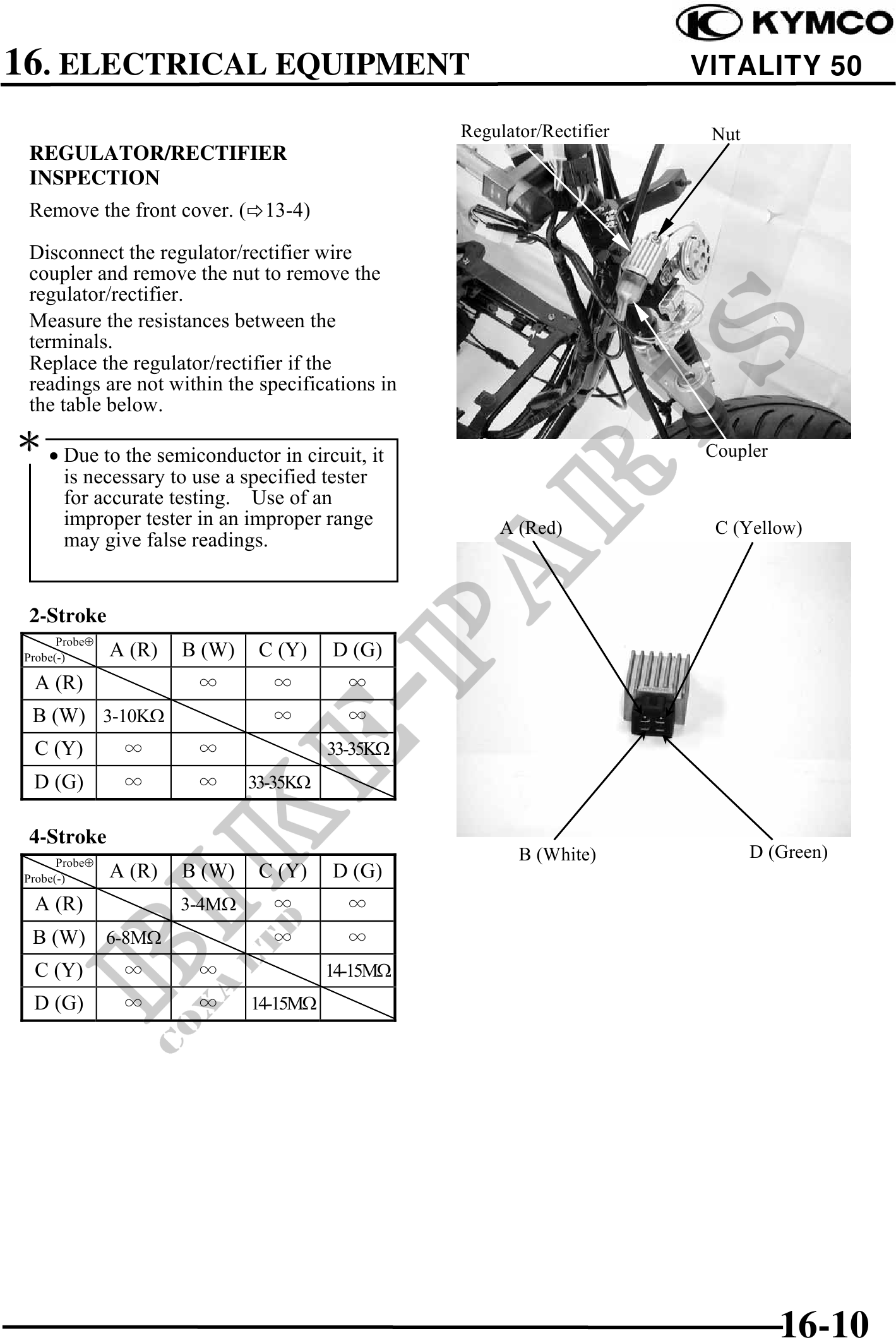

16. ELECTRICAL EQUIPMENT VITALITY 50
Regulator/Rectifier Nut
REGULATOR/RECTIFIER
INSPECTION
Remove the front cover. ( 13-4)
Disconnect the regulator/rectifier wire
coupler and remove the nut to remove the
regulator/rectifier.
Measure the resistances between the
terminals.
Replace the regulator/rectifier if the
readings are not within the specifications in
the table below.
· Due to the semiconductor in circuit, it Coupler
is necessary to use a specified tester
for accurate testing. Use of an
improper tester in an improper range A (Red) C (Yellow)
may give false readings.
2-Stroke
Probe
Probe(-) A (R) B (W) C (Y) D (G)
A (R)
B (W) 3-10K
C (Y) 33-35K
D (G) 33-35K
4-Stroke
Probe
B (White) D (Green)
Probe(-) A (R) B (W) C (Y) D (G)
A (R) 3-4M
B (W) 6-8M
C (Y) 14-15M
D (G) 14-15M
16-10
