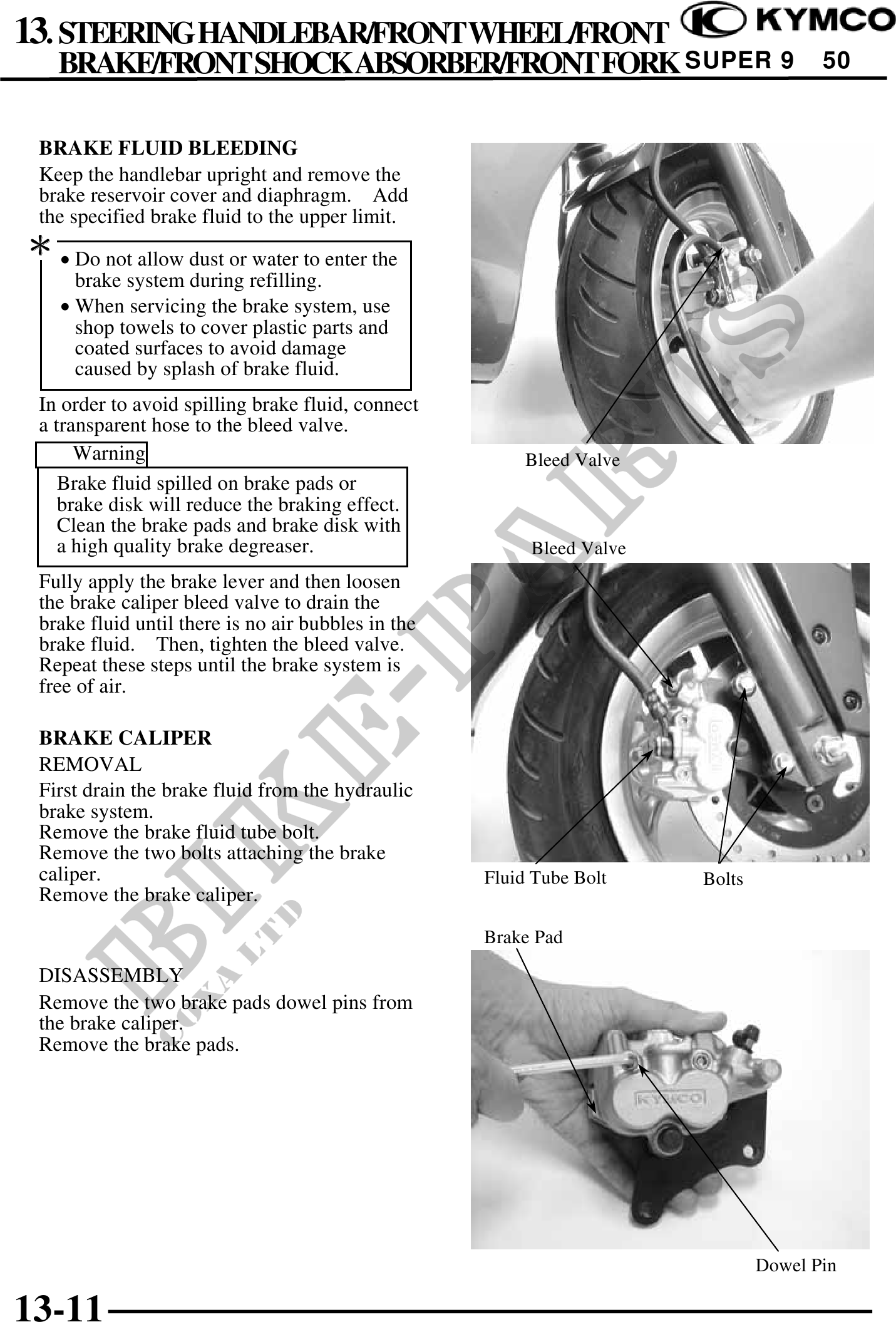

13. STEERINGHANDLEBAR/FRONTWHEEL/FRONT
BRAKE/FRONTSHOCKABSORBER/FRONTFORK SUPER 9 50
BRAKE FLUID BLEEDING
Keep the handlebar upright and remove the
brake reservoir cover and diaphragm. Add
the specified brake fluid to the upper limit.
· Do not allow dust or water to enter the
brake system during refilling.
· When servicing the brake system, use
shop towels to cover plastic parts and
coated surfaces to avoid damage
caused by splash of brake fluid.
In order to avoid spilling brake fluid, connect
a transparent hose to the bleed valve.
Warning Bleed Valve
Brake fluid spilled on brake pads or
brake disk will reduce the braking effect.
Clean the brake pads and brake disk with
a high quality brake degreaser. Bleed Valve
Fully apply the brake lever and then loosen
the brake caliper bleed valve to drain the
brake fluid until there is no air bubbles in the
brake fluid. Then, tighten the bleed valve.
Repeat these steps until the brake system is
free of air.
BRAKE CALIPER
REMOVAL
First drain the brake fluid from the hydraulic
brake system.
Remove the brake fluid tube bolt.
Remove the two bolts attaching the brake
caliper. Fluid Tube Bolt Bolts
Remove the brake caliper.
Brake Pad
DISASSEMBLY
Remove the two brake pads dowel pins from
the brake caliper.
Remove the brake pads.
Dowel Pin
13-11
