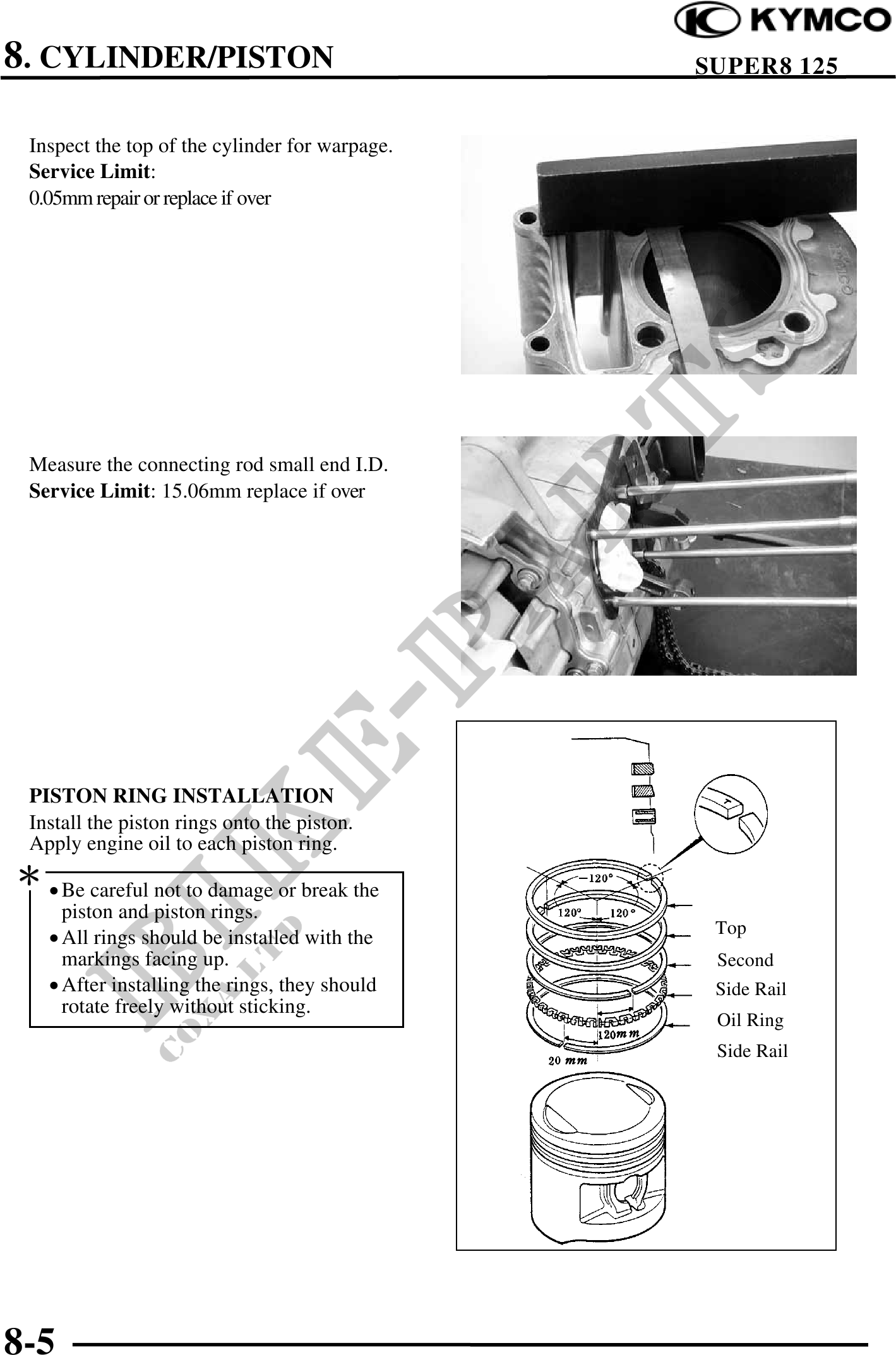

8. CYLINDER/PISTON SUPER8 125 Inspect the top of the cylinder for warpage. Service Limit: 0.05mm repair or replace if over Measure the connecting rod small end I.D. Service Limit: 15.06mm replace if over PISTON RING INSTALLATION Install the piston rings onto the piston. Apply engine oil to each piston ring. · Be careful not to damage or break the piston and piston rings. Top · All rings should be installed with the markings facing up. Second · After installing the rings, they should Side Rail rotate freely without sticking. Oil Ring Side Rail 8-5
