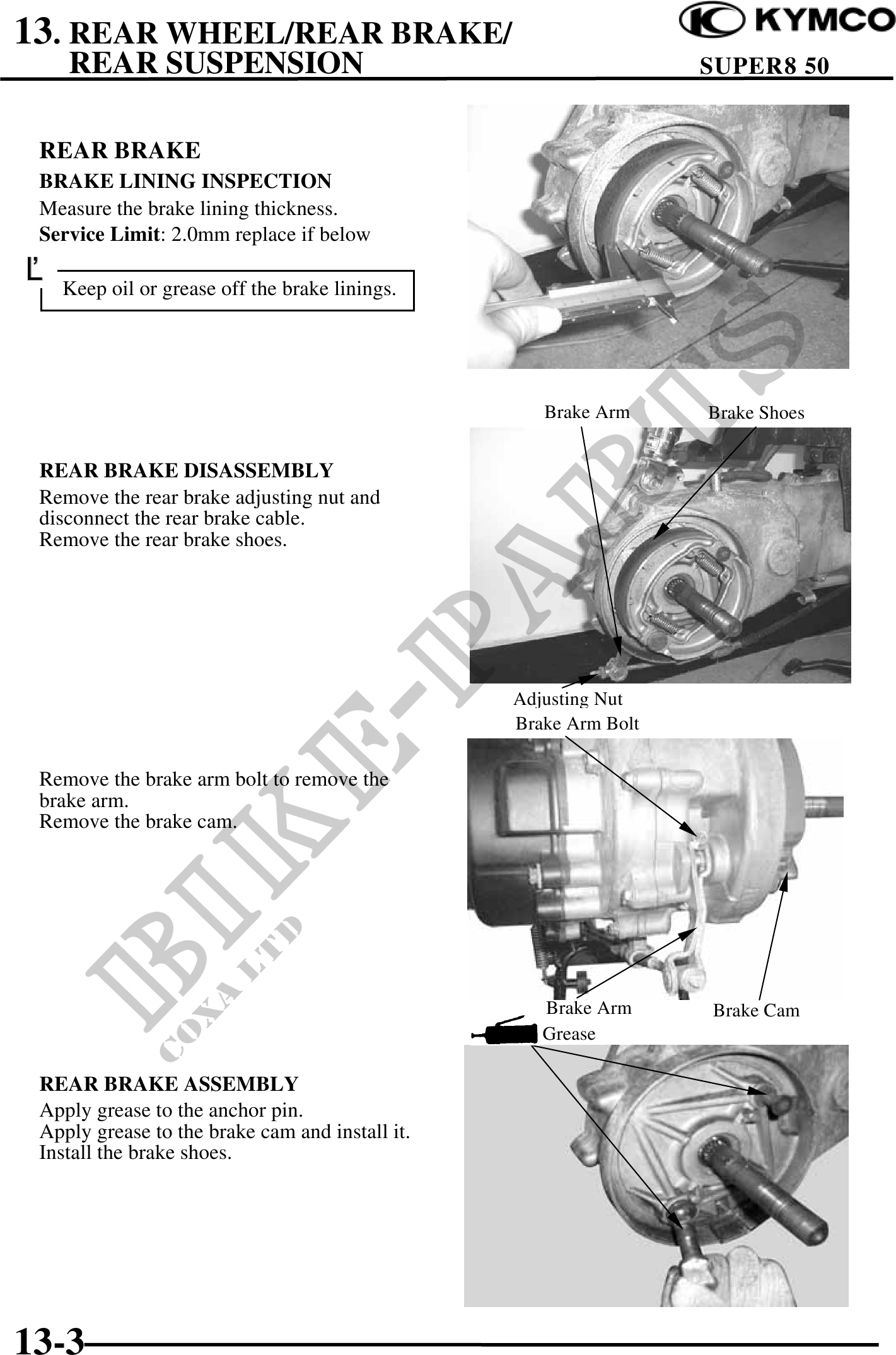

13. REAR WHEEL/REAR BRAKE/ REAR SUSPENSION SUPER8 50 REAR BRAKE BRAKE LINING INSPECTION Measure the brake lining thickness. Service Limit: 2.0mm replace if below Keep oil or grease off the brake linings. Brake Arm Brake Shoes REAR BRAKE DISASSEMBLY Remove the rear brake adjusting nut and disconnect the rear brake cable. Remove the rear brake shoes. Adjusting Nut Brake Arm Bolt Remove the brake arm bolt to remove the brake arm. Remove the brake cam. Brake Arm Brake Cam Grease REAR BRAKE ASSEMBLY Apply grease to the anchor pin. Apply grease to the brake cam and install it. Install the brake shoes. 13-3
