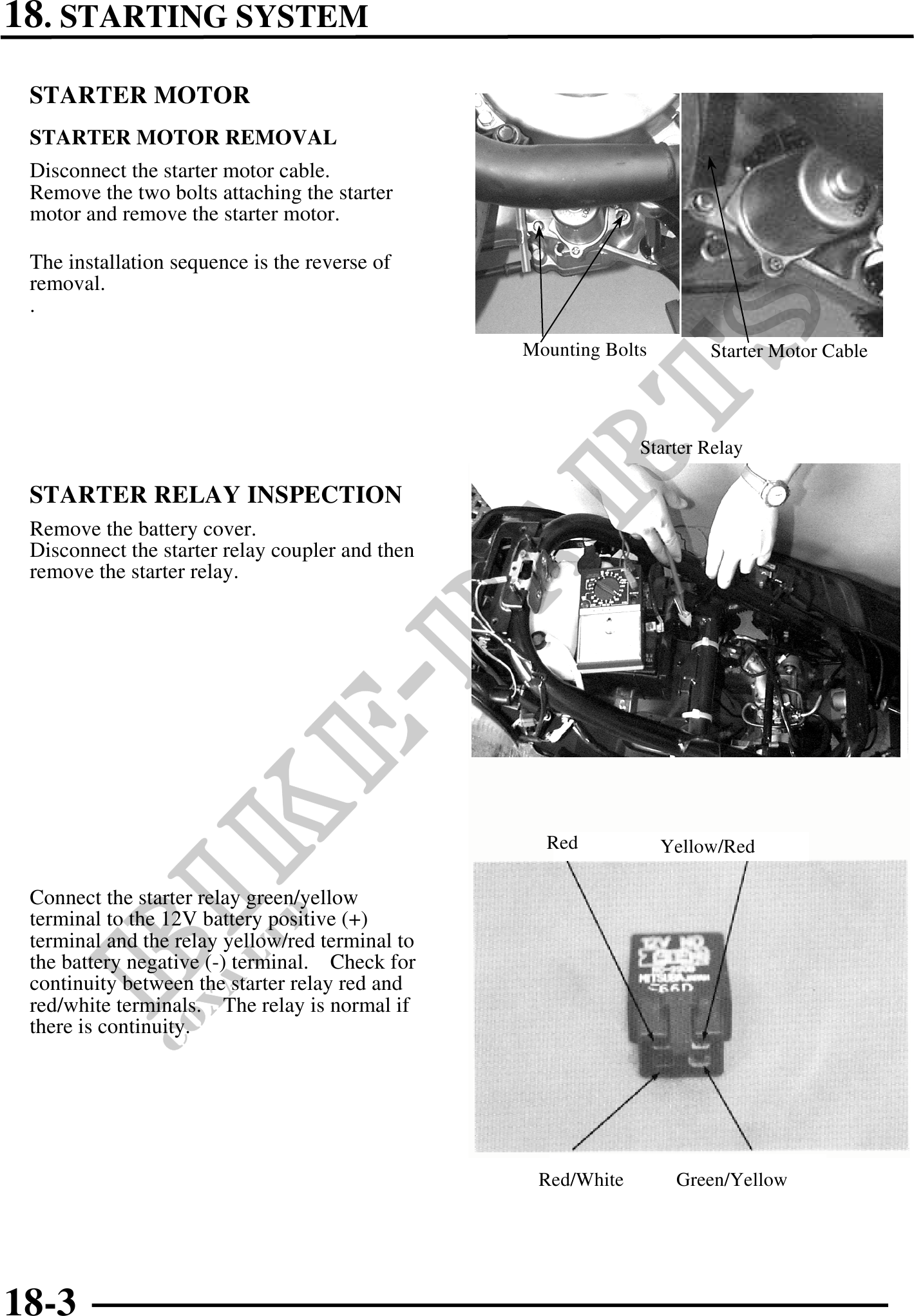

18. STARTING SYSTEM
STARTER MOTOR
STARTER MOTOR REMOVAL
Disconnect the starter motor cable.
Remove the two bolts attaching the starter
motor and remove the starter motor.
The installation sequence is the reverse of
removal.
.
Mounting Bolts Starter Motor Cable
Starter Relay
STARTER RELAY INSPECTION
Remove the battery cover.
Disconnect the starter relay coupler and then
remove the starter relay.
Red Yellow/Red
Connect the starter relay green/yellow
terminal to the 12V battery positive (+)
terminal and the relay yellow/red terminal to
the battery negative (-) terminal. Check for
continuity between the starter relay red and
red/white terminals. The relay is normal if
there is continuity.
Red/White Green/Yellow
18-3
