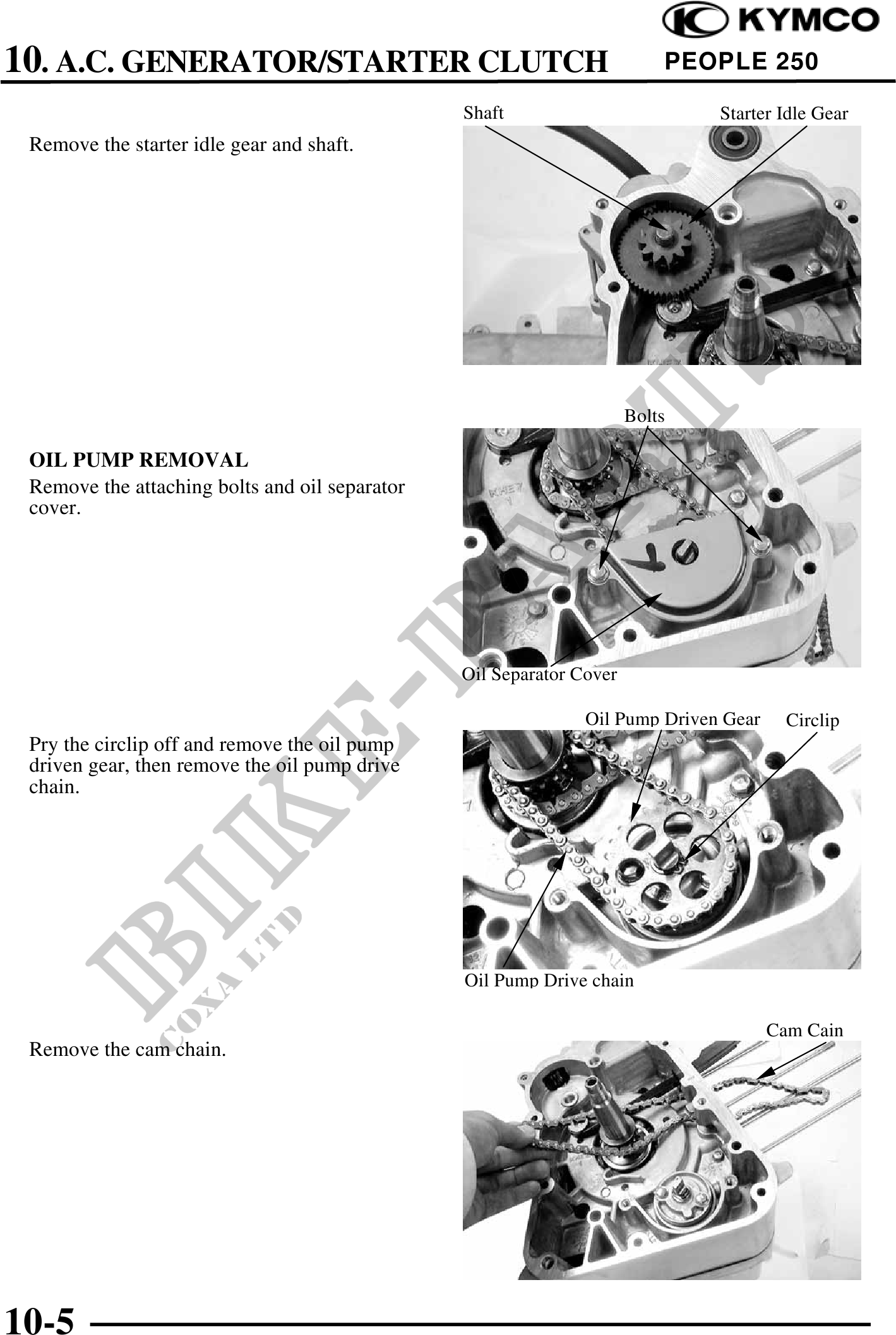

10. A.C. GENERATOR/STARTER CLUTCH PEOPLE 250
Shaft Starter Idle Gear
Remove the starter idle gear and shaft.
Bolts
OIL PUMP REMOVAL
Remove the attaching bolts and oil separator
cover.
Oil Separator Cover
Oil Pump Driven Gear Circlip
Pry the circlip off and remove the oil pump
driven gear, then remove the oil pump drive
chain.
Oil Pump Drive chain
Cam Cain
Remove the cam chain.
10-5
