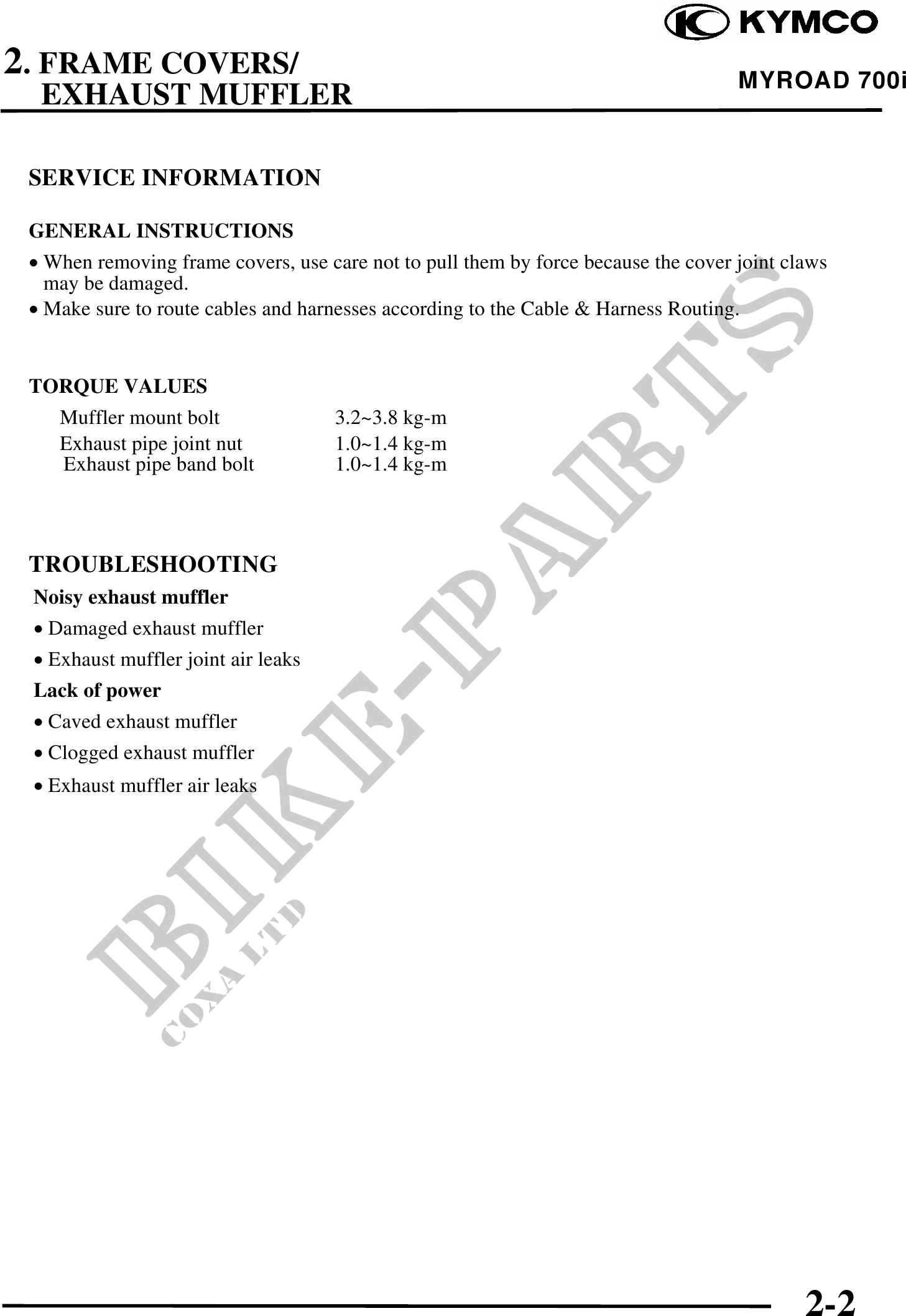

2. FRAME COVERS/ MYROAD 700i
EXHAUST MUFFLER
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· When removing frame covers, use care not to pull them by force because the cover joint claws
may be damaged.
· Make sure to route cables and harnesses according to the Cable & Harness Routing.
TORQUE VALUES
Muffler mount bolt 3.2~3.8 kg-m
Exhaust pipe joint nut 1.0~1.4 kg-m
Exhaust pipe band bolt 1.0~1.4 kg-m
TROUBLESHOOTING
Noisy exhaust muffler
· Damaged exhaust muffler
· Exhaust muffler joint air leaks
Lack of power
· Caved exhaust muffler
· Clogged exhaust muffler
· Exhaust muffler air leaks
2-2
