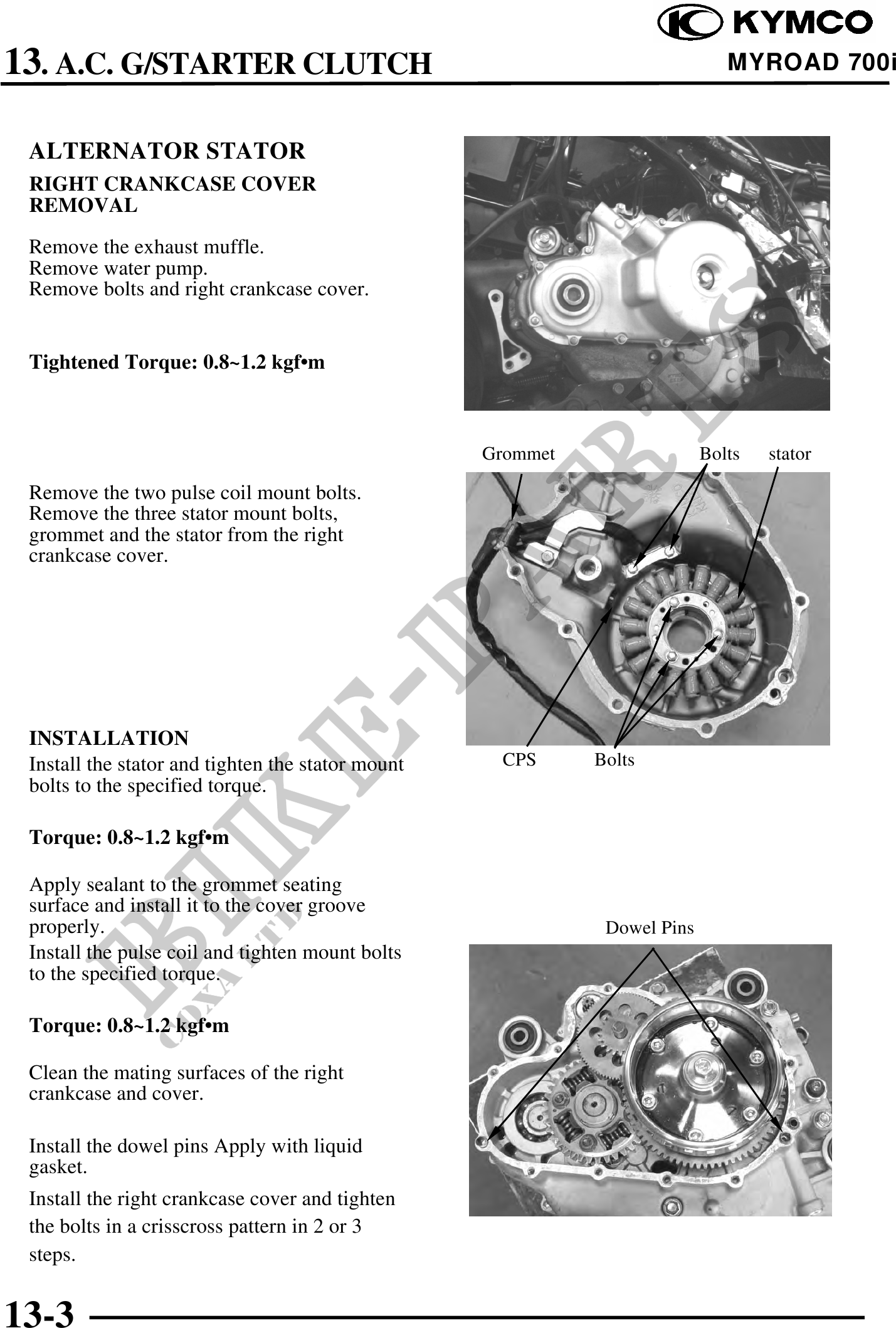

13. A.C. G/STARTER CLUTCH MYROAD 700i
ALTERNATOR STATOR
RIGHT CRANKCASE COVER
REMOVAL
Remove the exhaust muffle.
Remove water pump.
Remove bolts and right crankcase cover.
Tightened Torque: 0.8~1.2 kgf·m
Grommet Bolts stator
Remove the two pulse coil mount bolts.
Remove the three stator mount bolts,
grommet and the stator from the right
crankcase cover.
INSTALLATION
Install the stator and tighten the stator mount CPS Bolts
bolts to the specified torque.
Torque: 0.8~1.2 kgf·m
Apply sealant to the grommet seating
surface and install it to the cover groove
properly. Dowel Pins
Install the pulse coil and tighten mount bolts
to the specified torque.
Torque: 0.8~1.2 kgf·m
Clean the mating surfaces of the right
crankcase and cover.
Install the dowel pins Apply with liquid
gasket.
Install the right crankcase cover and tighten
the bolts in a crisscross pattern in 2 or 3
steps.
