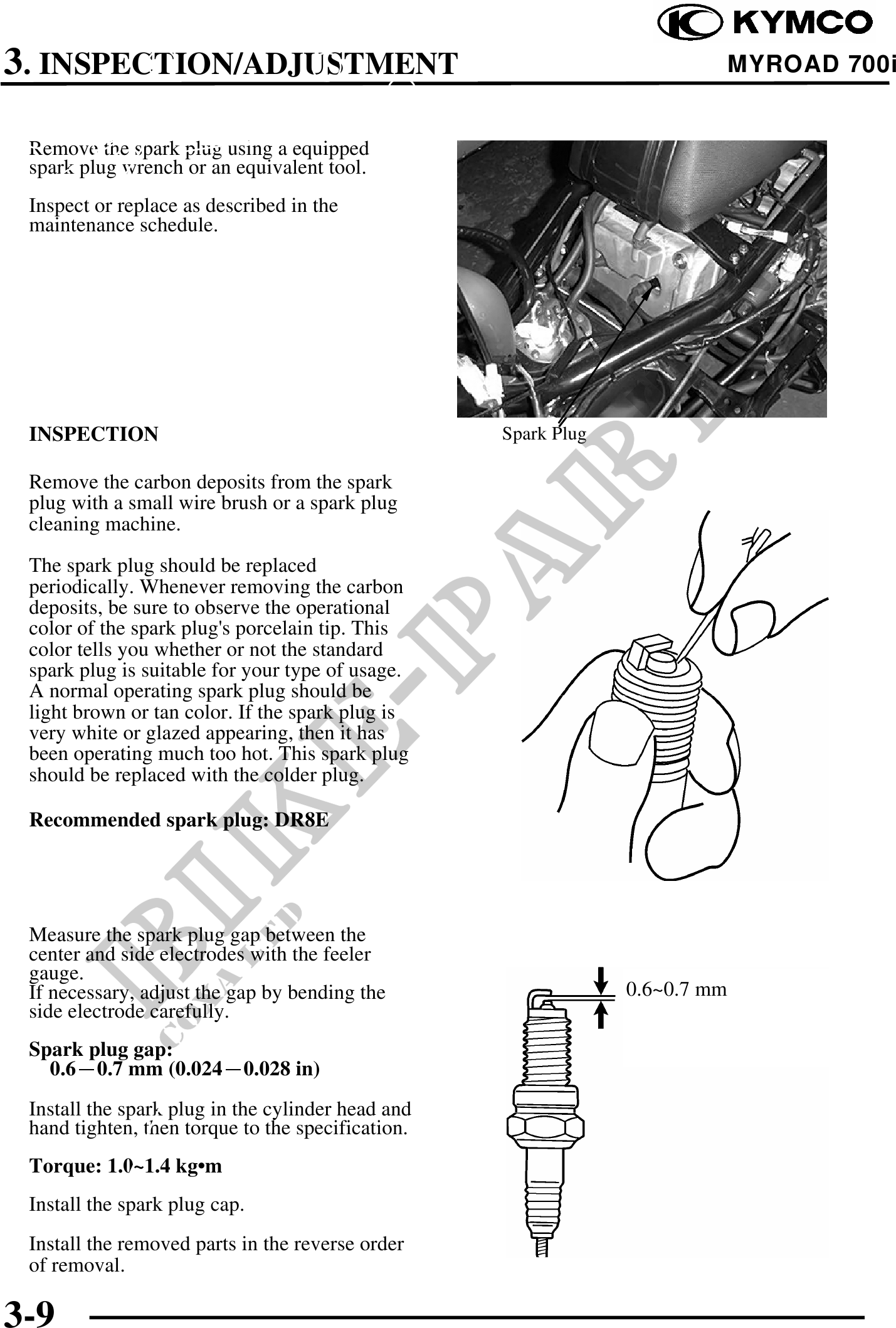

3. INSPECTION/ADJUSTMENT MYROAD 700i Remove the spark plug using a equipped spark plug wrench or an equivalent tool. Inspect or replace as described in the maintenance schedule. INSPECTION Spark Plug Remove the carbon deposits from the spark plug with a small wire brush or a spark plug cleaning machine. The spark plug should be replaced periodically. Whenever removing the carbon deposits, be sure to observe the operational color of the spark plug's porcelain tip. This color tells you whether or not the standard spark plug is suitable for your type of usage. A normal operating spark plug should be light brown or tan color. If the spark plug is very white or glazed appearing, then it has been operating much too hot. This spark plug should be replaced with the colder plug. Recommended spark plug: DR8E Measure the spark plug gap between the center and side electrodes with the feeler gauge. If necessary, adjust the gap by bending the 0.6~0.7 mm side electrode carefully. Spark plug gap: 0.60.7 mm (0.0240.028 in) Install the spark plug in the cylinder head and hand tighten, then torque to the specification. Torque: 1.0~1.4 kg·m Install the spark plug cap. Install the removed parts in the reverse order of removal. 3-9
