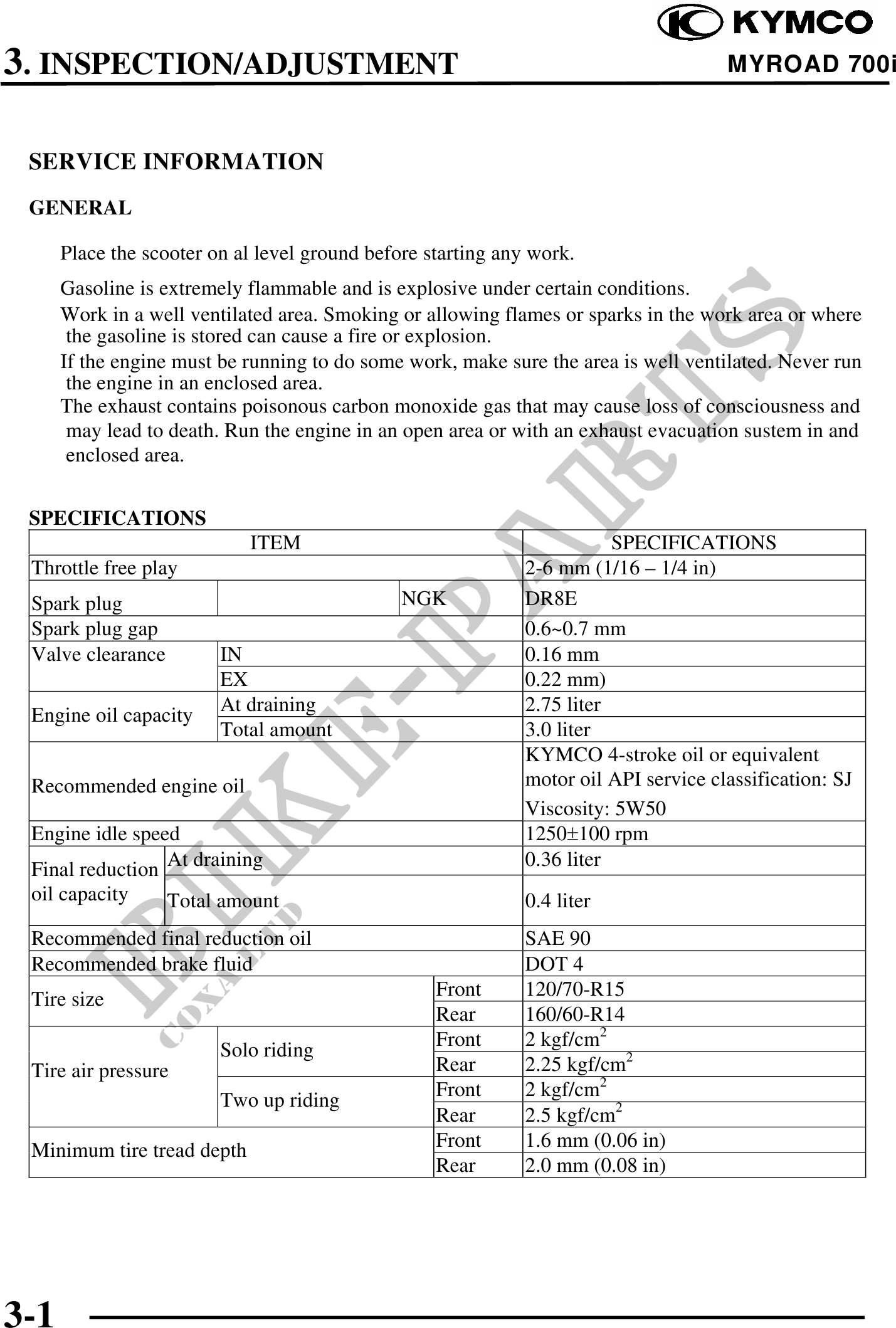

3. INSPECTION/ADJUSTMENT MYROAD 700i SERVICE INFORMATION GENERAL Place the scooter on al level ground before starting any work. Gasoline is extremely flammable and is explosive under certain conditions. Work in a well ventilated area. Smoking or allowing flames or sparks in the work area or where the gasoline is stored can cause a fire or explosion. If the engine must be running to do some work, make sure the area is well ventilated. Never run the engine in an enclosed area. The exhaust contains poisonous carbon monoxide gas that may cause loss of consciousness and may lead to death. Run the engine in an open area or with an exhaust evacuation sustem in and enclosed area. SPECIFICATIONS ITEM SPECIFICATIONS Throttle free play 2-6 mm (1/16 1/4 in) Spark plug NGK DR8E Spark plug gap 0.6~0.7 mm Valve clearance IN 0.16 mm EX 0.22 mm) At draining 2.75 liter Engine oil capacity Total amount 3.0 liter KYMCO 4-stroke oil or equivalent Recommended engine oil motor oil API service classification: SJ Viscosity: 5W50 Engine idle speed 1250100 rpm Final reduction At draining 0.36 liter oil capacity Total amount 0.4 liter Recommended final reduction oil SAE 90 Recommended brake fluid DOT 4 Front 120/70-R15 Tire size Rear 160/60-R14 Front 2 kgf/cm2 Solo riding Tire air pressure Rear 2.25 kgf/cm2 Front 2 kgf/cm2 Two up riding Rear 2.5 kgf/cm2 Front 1.6 mm (0.06 in) Minimum tire tread depth Rear 2.0 mm (0.08 in) 3-1
