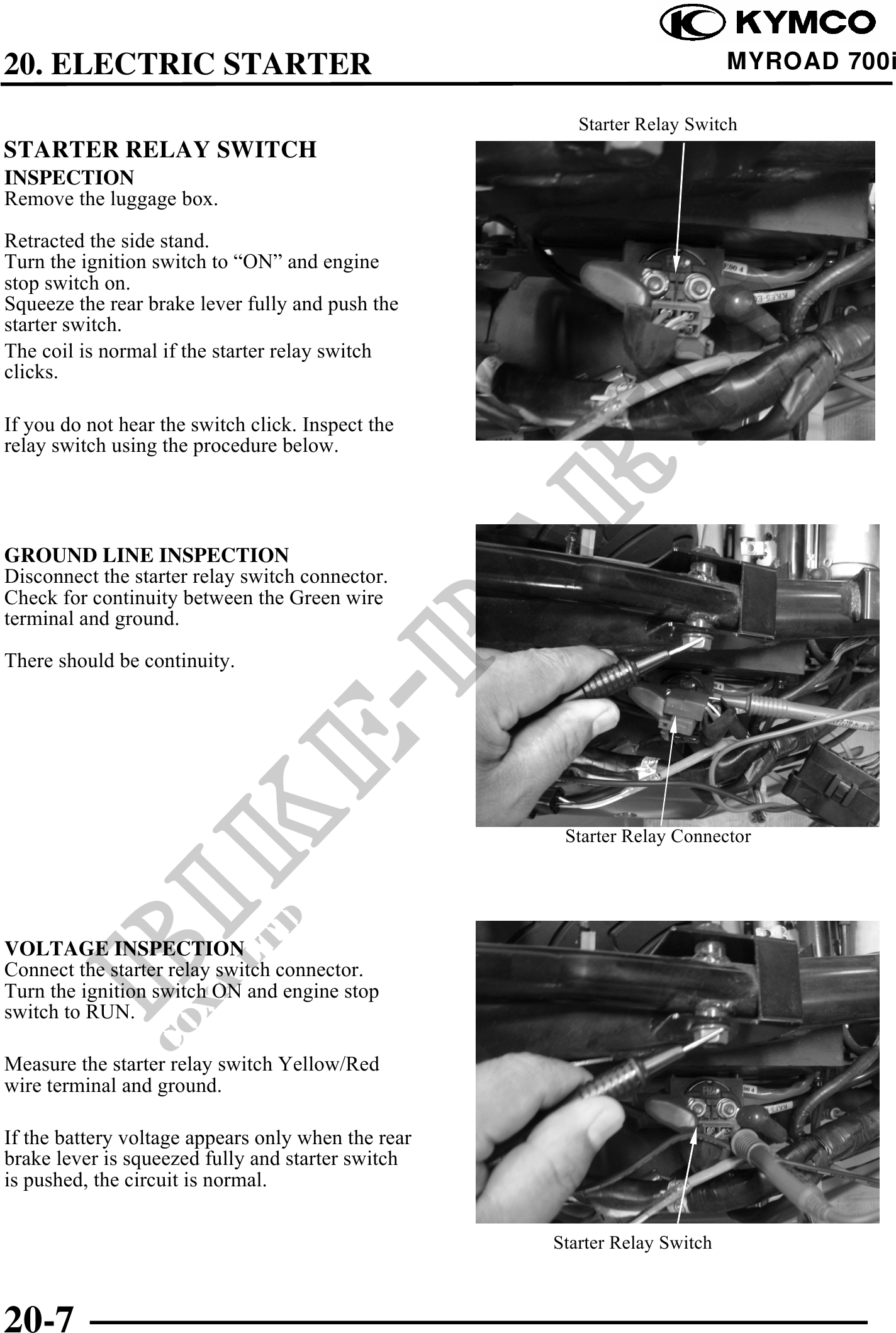

20. ELECTRIC STARTER MYROAD 700i Starter Relay Switch STARTER RELAY SWITCH INSPECTION Remove the luggage box. Retracted the side stand. Turn the ignition switch to "ON" and engine stop switch on. Squeeze the rear brake lever fully and push the starter switch. The coil is normal if the starter relay switch clicks. If you do not hear the switch click. Inspect the relay switch using the procedure below. GROUND LINE INSPECTION Disconnect the starter relay switch connector. Check for continuity between the Green wire terminal and ground. There should be continuity. Starter Relay Connector VOLTAGE INSPECTION Connect the starter relay switch connector. Turn the ignition switch ON and engine stop switch to RUN. Measure the starter relay switch Yellow/Red wire terminal and ground. If the battery voltage appears only when the rear brake lever is squeezed fully and starter switch is pushed, the circuit is normal. Starter Relay Switch 20-7
