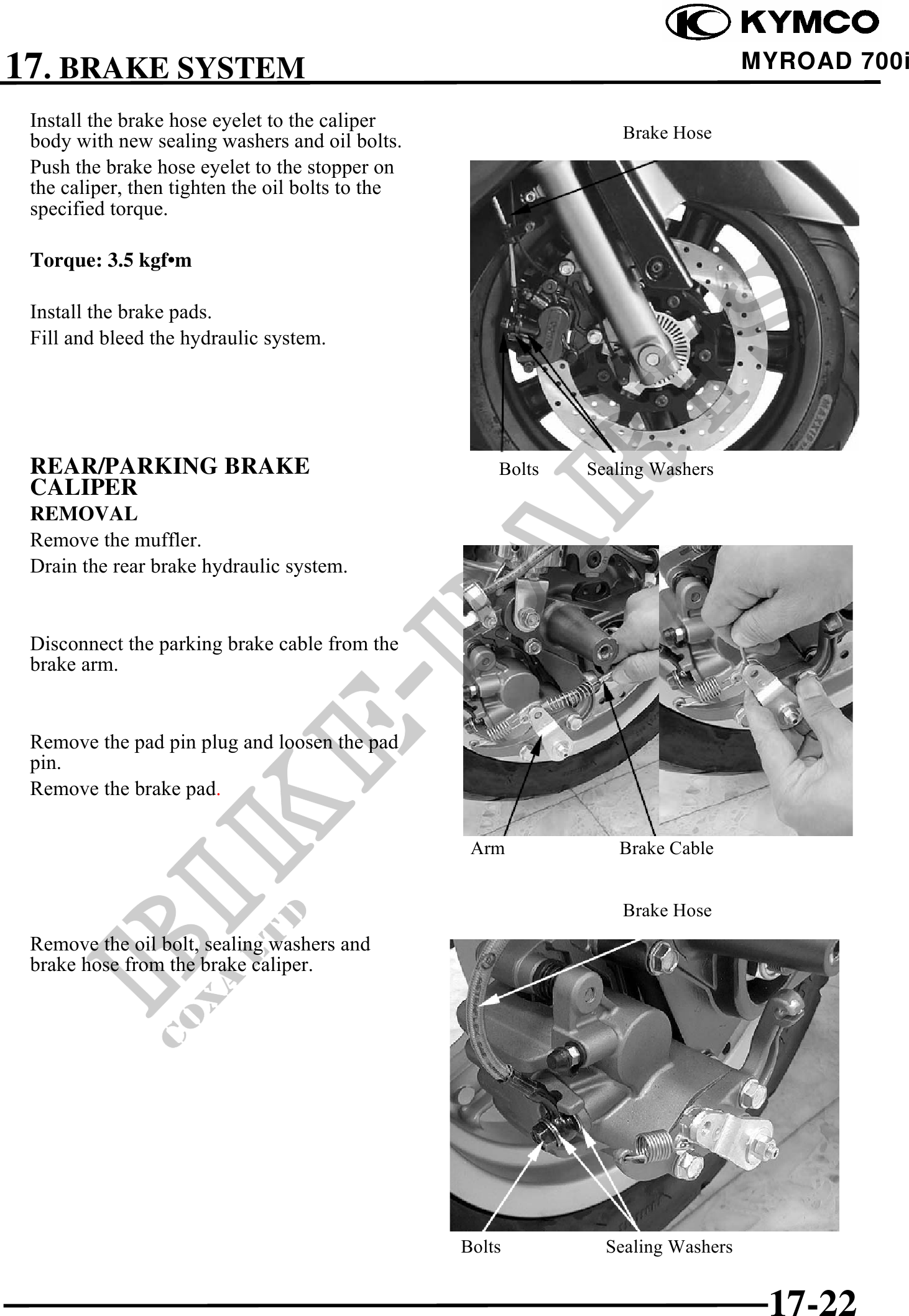

17. BRAKE SYSTEM MYROAD 700i Install the brake hose eyelet to the caliper body with new sealing washers and oil bolts. Brake Hose Push the brake hose eyelet to the stopper on the caliper, then tighten the oil bolts to the specified torque. Torque: 3.5 kgf·m Install the brake pads. Fill and bleed the hydraulic system. REAR/PARKING BRAKE Bolts Sealing Washers CALIPER REMOVAL Remove the muffler. Drain the rear brake hydraulic system. Disconnect the parking brake cable from the brake arm. Remove the pad pin plug and loosen the pad pin. Remove the brake pad. Arm Brake Cable Brake Hose Remove the oil bolt, sealing washers and brake hose from the brake caliper. Bolts Sealing Washers 17-22
